| Quantity: | |
|---|---|

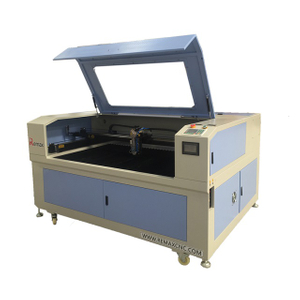

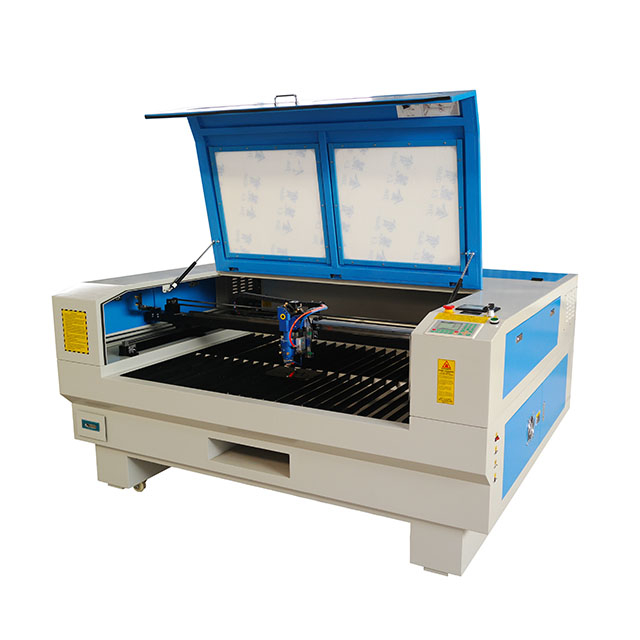

1390 mixed laser cutting machine
Parameter
Model | Remax-1390 mixed laser cutting machine |
| Working Area | 1300x900mm |
| Table Structure | Blade Table ( or Optional Honeycomb Table) |
| Table | Up-down Table ( optional ) |
| Laser Power | Reci 100w |
| Power Adjustment | 0-100% with control, no adjustment segment, adjusted by software |

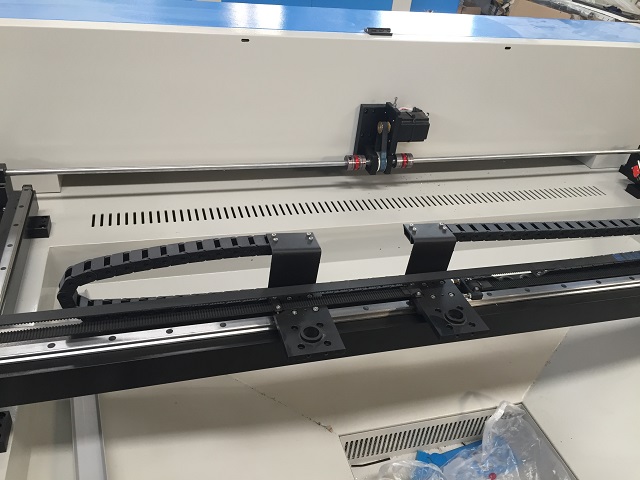

| Guide Ralis | Hiwin or PMI Square Rails |
| Driver | Leadshine |
| Cutting Speed | ≤600mm/s |
| Engraving Speed | 0-1000mm/s |
| Position Precision | ± 0.05mm |
| Performance | Engraving , Cutting |
| Main Graphic Format Supported | PLT/DXF/DST/BMP/Al etc. ( Direct Output) |
| Working Platform | Engraving Platform ( up-and-down device with optional auxiliary cutting rack) |
| Cooling Water | Water Cooling And Protection System |
| Working Voltage | AC110/220V ± 10% , 50/60Hz |
| Woke Mode | Stepper or Servo |
| Working Temperature | 0-45°c |
| Working Humidity | 5%-95% |
| Control System | Ruida |
| Dot positioning System | Red Dot Positioning (Option) |
| Warranty | One Year, Expect Consumble Parts |
| Support | By Calling or Email or Training |
Features

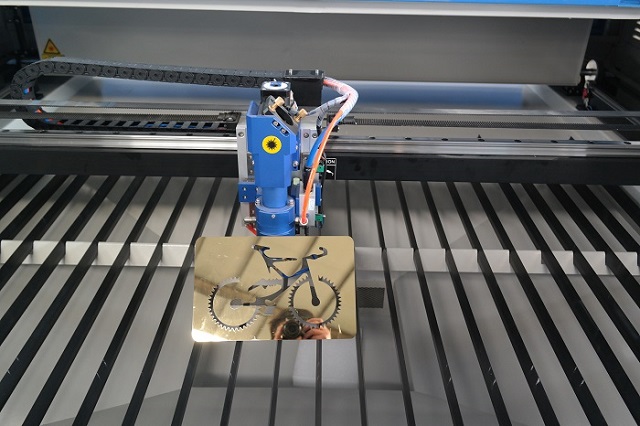

1. Knife strip platform: After our special handle with high durable, won’t be rusted or deformed even after long time, generally used for cutting hard materials, such as Acrylic, Wood, MDF, Plywood, Die board, etc.
2. Optimization of mechanical and electrical designs.
3. Simple Control Panel with LCD Display.
4. USB interface, U-flash disk, the machine reads files from the USB stick, you can even work without PC.
5. The worktable can be mounted and dismounted by 40 cm.
6. The laser machine is with high quality work table and can add rotary drill for handling cylinders.
7. Equipped with the RECI laser tube, the service life is 10000 hours.
Machine parts
Machine sample
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,German,French,Russian,Italian eyc.
Our service
A Guarantee :
1.Two years warranty for the whole machine.
2.Within 2 years under normal use and maintenance,
3.If something is wrong with machine, you will get spare part for free.;
4.Out of 2 years, you will get spare part at cost price.
5.You will also get technical support and service all the lifetime.
B After sales services:
1.Normal machine is properly adjusted before dispatch.
2.You will be able to use the machines immediately.
3.You will be able to get free training advice towards our machine in our factory.
4.You will also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
Parameter
Model | Remax-1390 mixed laser cutting machine |
| Working Area | 1300x900mm |
| Table Structure | Blade Table ( or Optional Honeycomb Table) |
| Table | Up-down Table ( optional ) |
| Laser Power | Reci 100w |
| Power Adjustment | 0-100% with control, no adjustment segment, adjusted by software |
| Guide Ralis | Hiwin or PMI Square Rails |
| Driver | Leadshine |
| Cutting Speed | ≤600mm/s |
| Engraving Speed | 0-1000mm/s |
| Position Precision | ± 0.05mm |
| Performance | Engraving , Cutting |
| Main Graphic Format Supported | PLT/DXF/DST/BMP/Al etc. ( Direct Output) |
| Working Platform | Engraving Platform ( up-and-down device with optional auxiliary cutting rack) |
| Cooling Water | Water Cooling And Protection System |
| Working Voltage | AC110/220V ± 10% , 50/60Hz |
| Woke Mode | Stepper or Servo |
| Working Temperature | 0-45°c |
| Working Humidity | 5%-95% |
| Control System | Ruida |
| Dot positioning System | Red Dot Positioning (Option) |
| Warranty | One Year, Expect Consumble Parts |
| Support | By Calling or Email or Training |
Features
1. Knife strip platform: After our special handle with high durable, won’t be rusted or deformed even after long time, generally used for cutting hard materials, such as Acrylic, Wood, MDF, Plywood, Die board, etc.
2. Optimization of mechanical and electrical designs.
3. Simple Control Panel with LCD Display.
4. USB interface, U-flash disk, the machine reads files from the USB stick, you can even work without PC.
5. The worktable can be mounted and dismounted by 40 cm.
6. The laser machine is with high quality work table and can add rotary drill for handling cylinders.
7. Equipped with the RECI laser tube, the service life is 10000 hours.
Machine parts
Machine sample
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,German,French,Russian,Italian eyc.
Our service
A Guarantee :
1.Two years warranty for the whole machine.
2.Within 2 years under normal use and maintenance,
3.If something is wrong with machine, you will get spare part for free.;
4.Out of 2 years, you will get spare part at cost price.
5.You will also get technical support and service all the lifetime.
B After sales services:
1.Normal machine is properly adjusted before dispatch.
2.You will be able to use the machines immediately.
3.You will be able to get free training advice towards our machine in our factory.
4.You will also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
