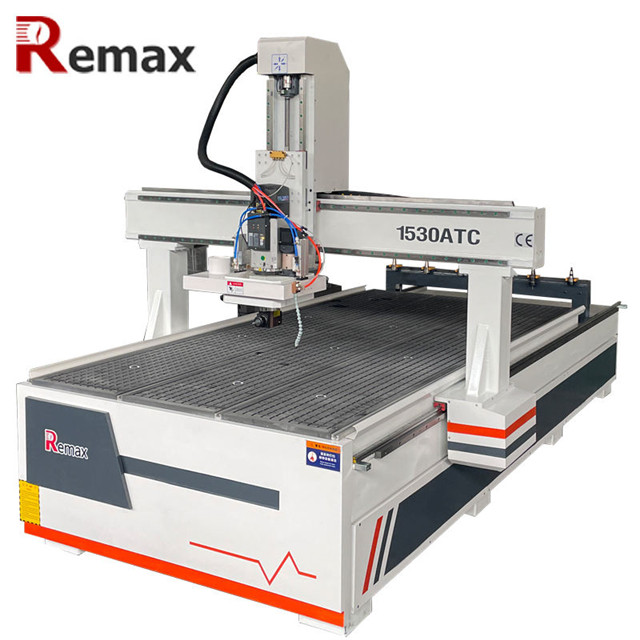

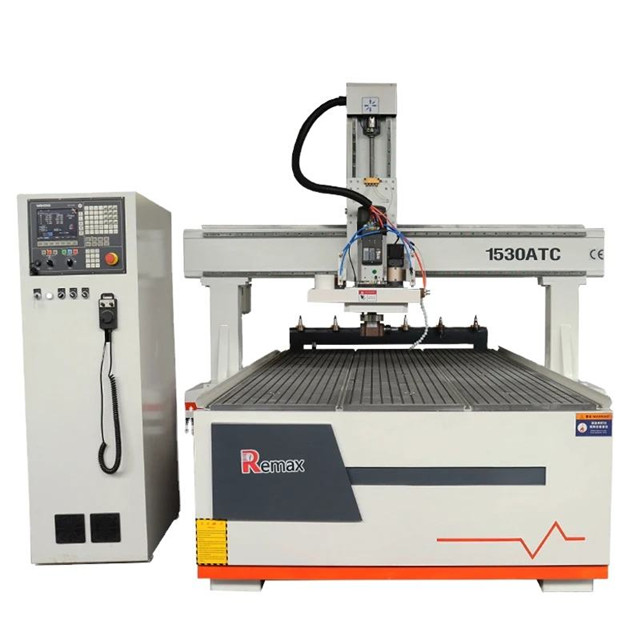

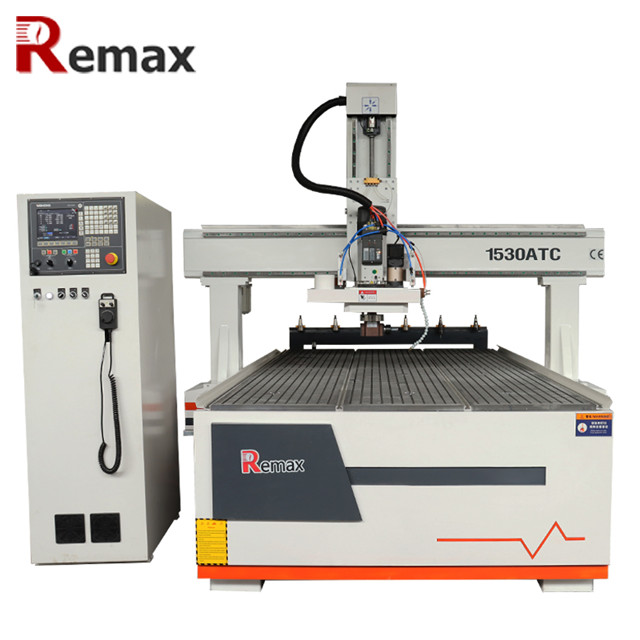

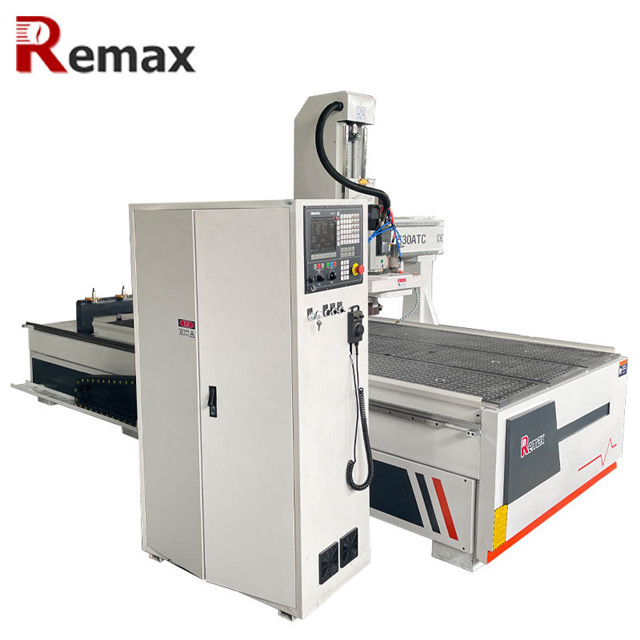

1530 atc
Remax
1. Widely used in the woodworking industry : carved wood furniture, furniture, MDF, solid wood doors,
composite doors, bed cabinet doors, also used in the advertising industry carving a variety of signs,
trademark, nameplates, badges, decorative gifts, relief medal, and cutting aluminum. etc.
| Item | parameter |
| XYZ Working area | 1500x3000x500mm |
| XYZ accuracy | ±0.02mm |
| X,Y,Z Repositioning Accuracy | ±0.0254mm |
| Table Surface | Vacuum table / aluminium T-slot table |
| Max. Working Speed | 20m/min |
| Spindle Power | Itably HS D /CC 9.0kw ATC Spindle with angle head, air/water cooling spindle |
| Spindle Speed | 0-18000RPM |

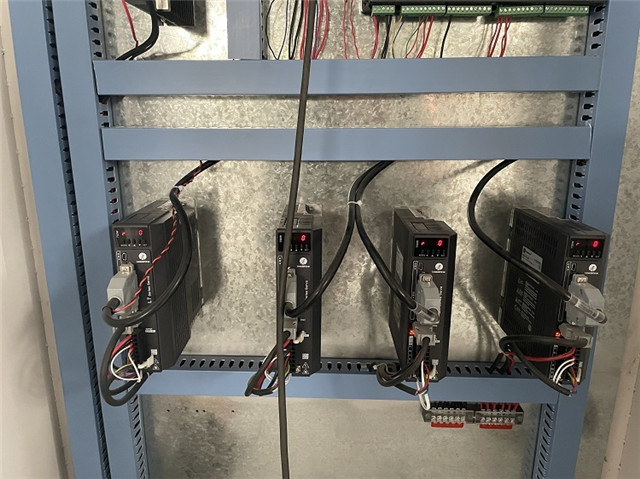

| Motors | Leadshine servo motor and driver 750w |
| Working Voltage | AC220/380V, 50/60Hz |
| Command Language | G code |
| Control System | Ncstudio / DSP / Mach3 |
| Software Compatibility | Type3/Artcam |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Inverter | Fuling |
| Limit switch | Omron |
| Guide rail | Hiwin 25mm square rail and rack |
| Electrical Components | Schneider |
| Auto Tool change Holer | 5 sets (linear type auto tool holder magazine) |

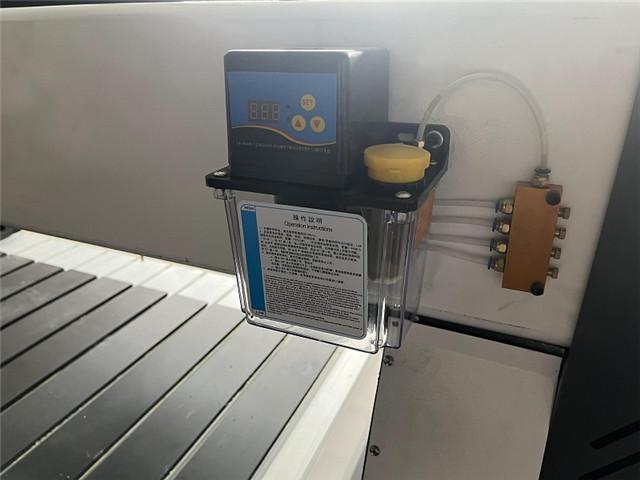

| Optional | dust collector, vacuum table and vacuum pump, oil spray system |

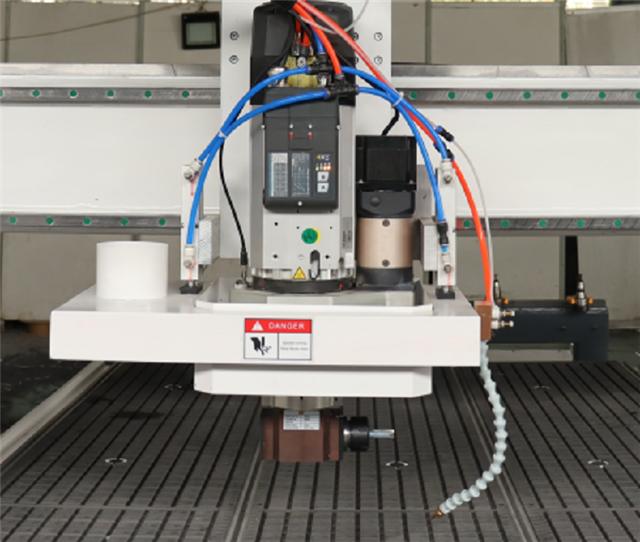

HSD Italy 9kw spindle with angle head, CC 9kw spindle for optional. vacuum/ pvc table

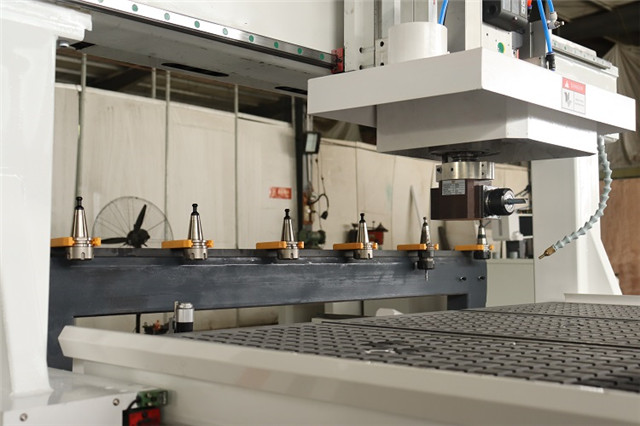

Wood carving machine linear ATC 5 tool holders, tool sensor

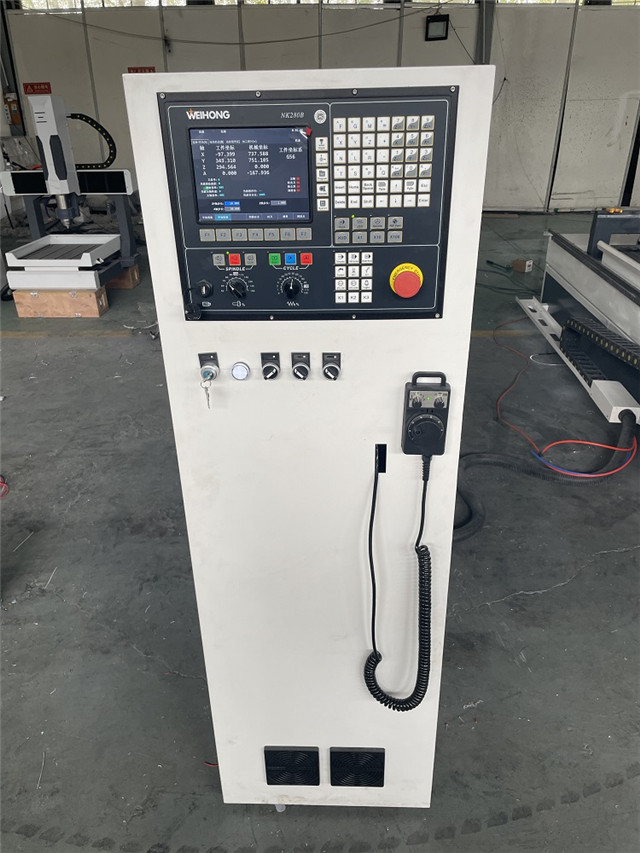

4 axis cnc router control system, NK280B, Handwheel

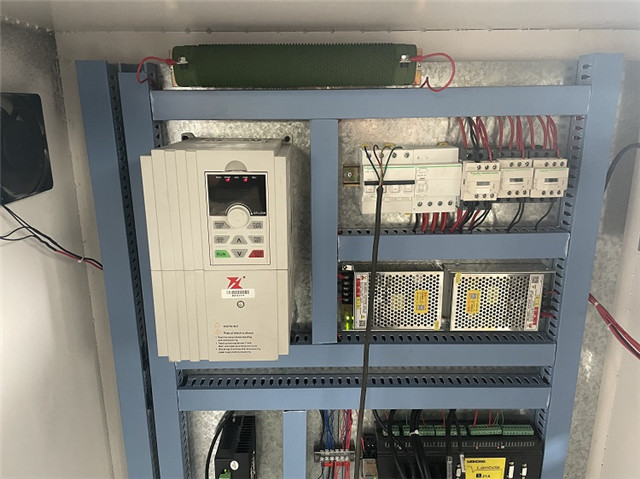

Fuling inverter, Schneder electric parts
