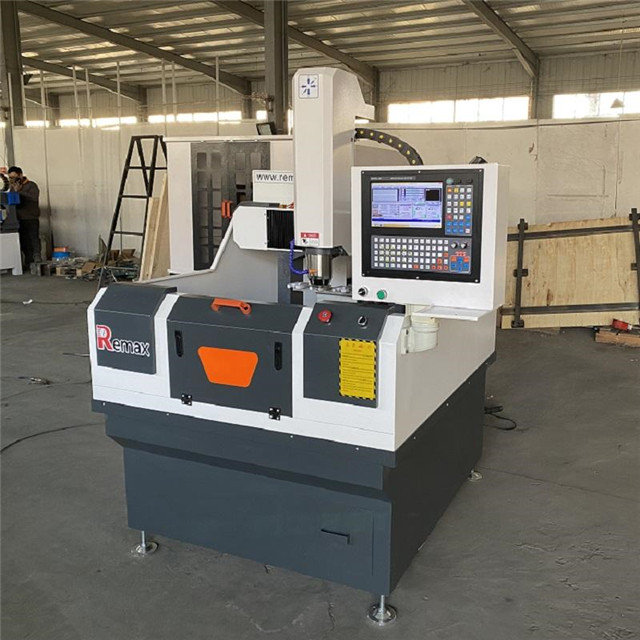

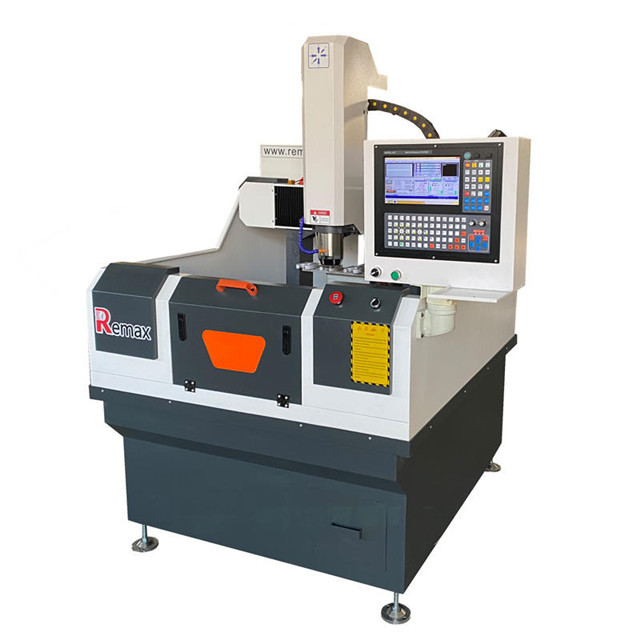

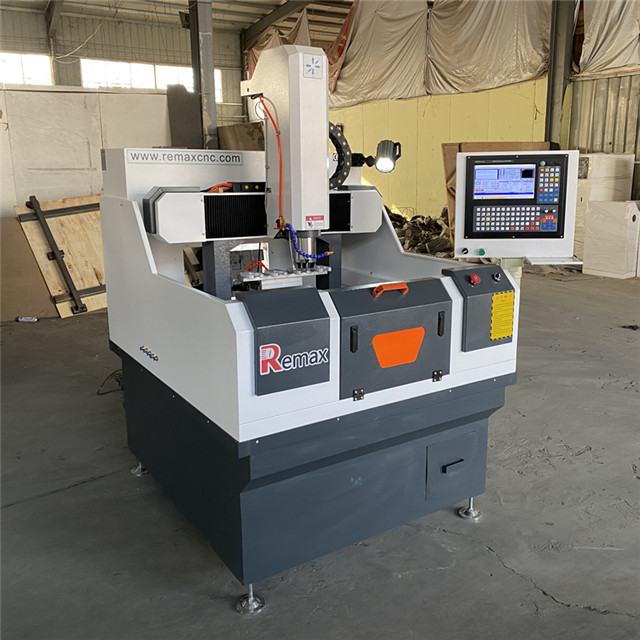

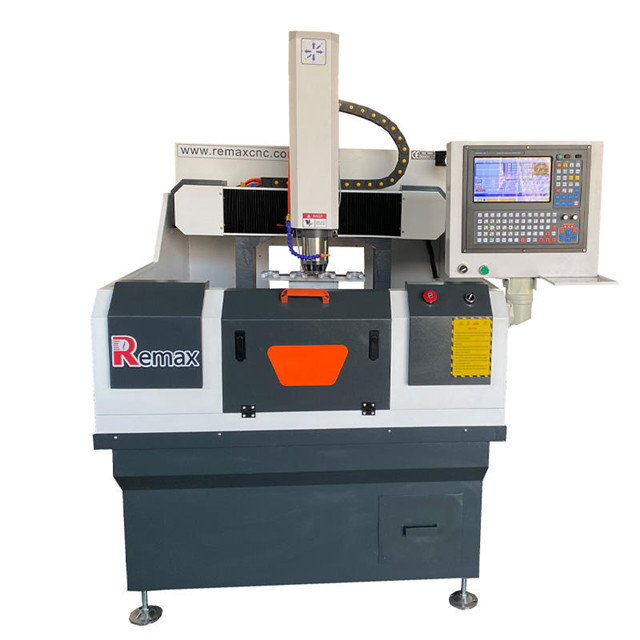

4040 ATC Metal Cnc Engraving Machinery Automatic Tool Replacement System

Name: 4040 ATC Metal Cnc Engraving Machinery Automatic Tool Replacement System
Brand: Remax
Rating: 5.0 (94 reviews)

This cnc machine mainly used for engraving and cutting aluminum, iron, brass amd steel etc metal materials;it can process non-metal materials also. Machine can make metal mold, craft manufacturing, indoor decoration cutting, sign and mark manufacturing, acrylic board processing, metal and PCB drilling.

Availability:

Quantity:



Inquire Add to Basket

Model:
Remax 4040 ATC
Brand:
Remax

Product Description

Features

1.This cnc machine mainly used for engraving and cutting aluminum, iron, brass amd steel etc metal materials;it can process non-metal materials also. Machine can make metal mold, craft manufacturing, indoor decoration cutting, sign and mark manufacturing, acrylic board processing, metal and PCB drilling.

2.Iron T-slot and moving table, ideal for machining metal or wooden molds.
3.Axis X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity.
4.TBI ball screw transmission improves positioning accuracy and fast speed.

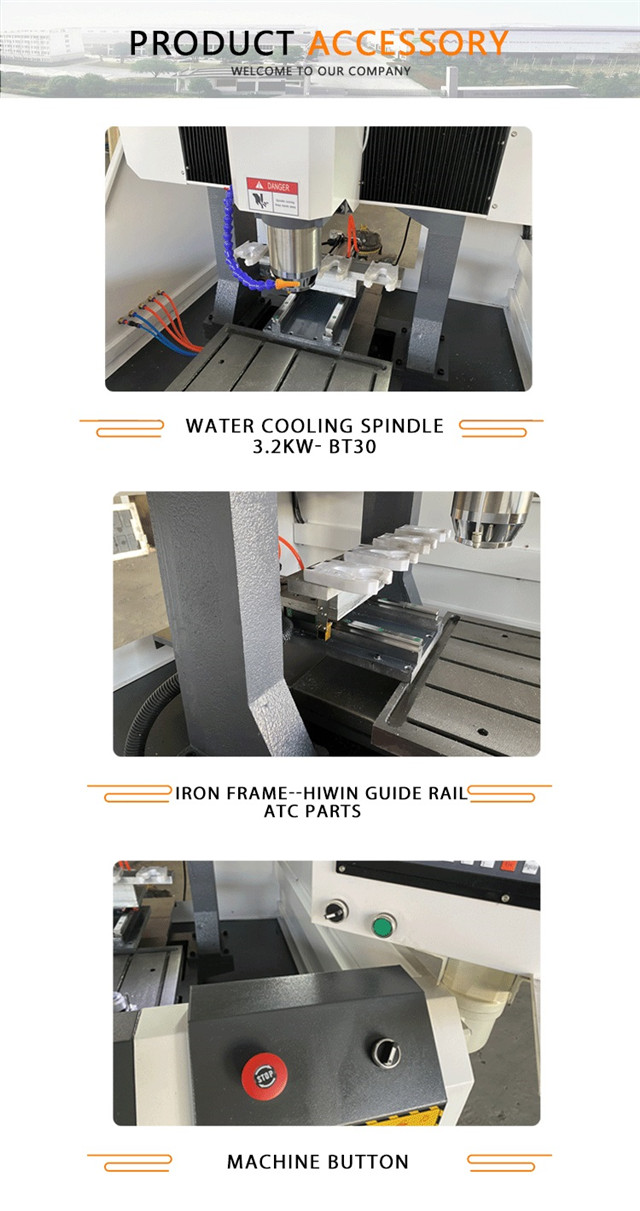

5.Selection of high speed 3.2kw atc water cooling spindle, low noise, high torque, this CNC can be used to process high hardness materials.

Product parameter

Description	Parameter of cnc milling machine
X,Y,Z Working Area	400400300mm
X,Y,Z Repositioning Accuracy	+-0.02mm

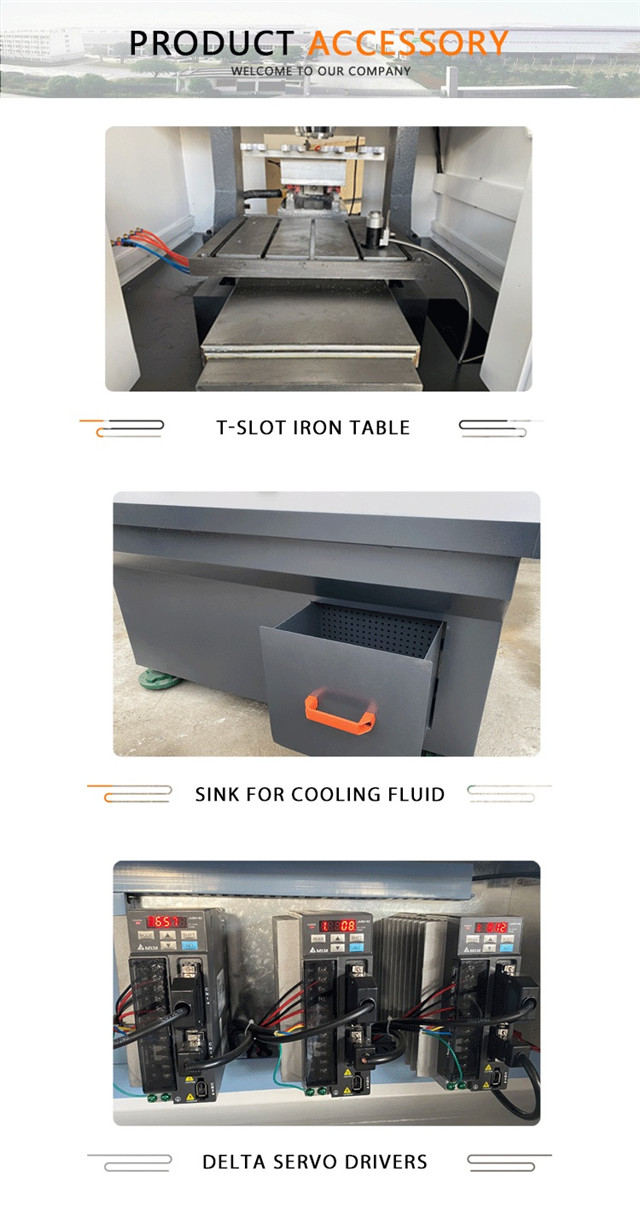

Table Surface	T-slot Table
Frame	Whole machine cast by iron
X, Y,Z Structure	Hiwin Square Rail and TBI Ball Screw
Spindle Power	3.2kw atc water cooling spindle
Spindle Speed	0-18000RPM
Working Voltage	AC220/380V 50/60Hz
Command Language	G Code
Inverter	Delta/Fuling
Auto tool change	Linear type 4pcs auto tool change
Electrical components	Schneider
Limit switch	OMRON
Motor and driver	Leadshine hybrid servo motor and driver
Running Environment Temperature	0-45 Centigrade
Relative Humidity	30%-75%
