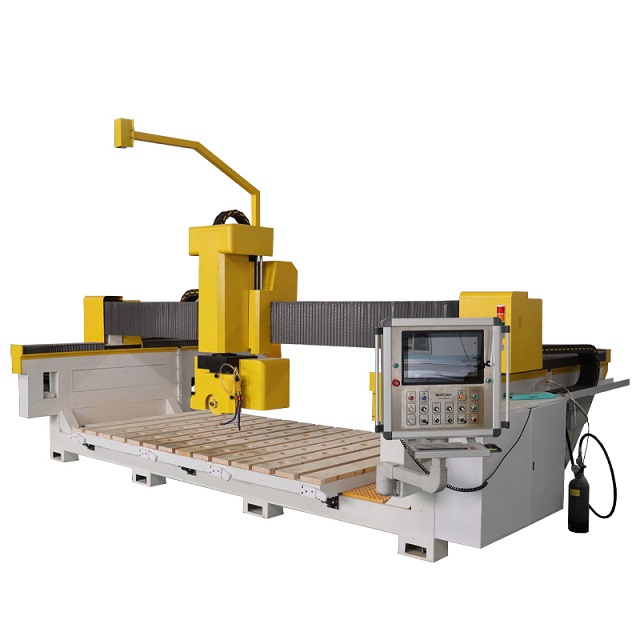

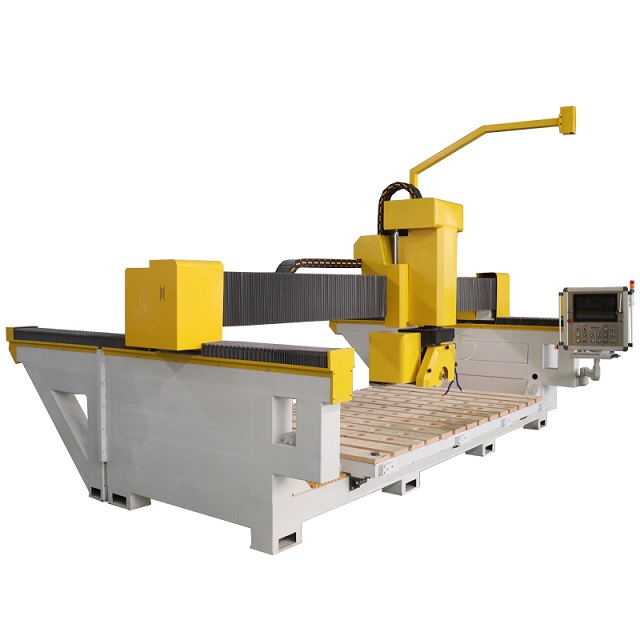

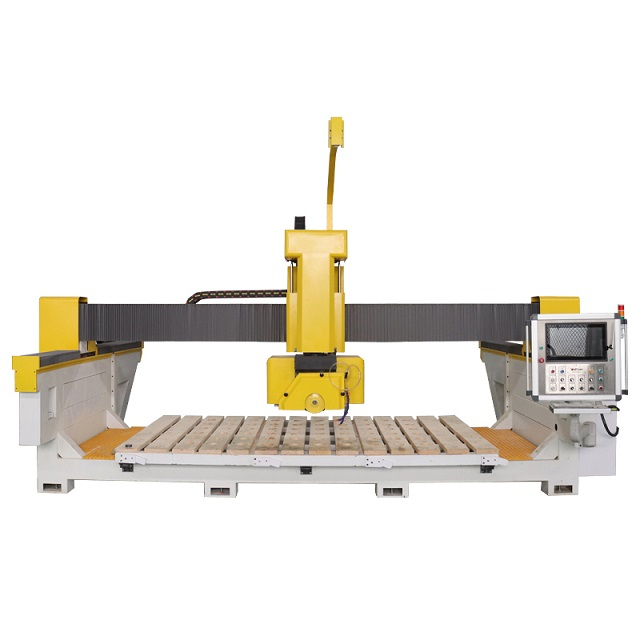

5 Axis bridge saw cnc stone cutting machine
Remax

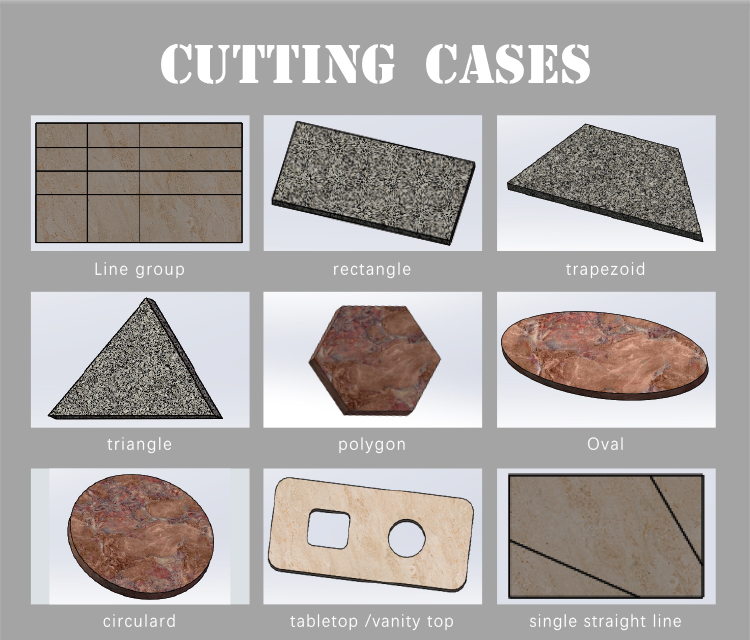

For example, cutting and milling straight and inclined edges, chamfering, cutting arc edges, polygon, edge milling, edge tracking, and other powerful functions. The 5-axis bridge saw is widely used in stone processing plants, kitchen countertop processing, background wall profiling, and other fields.
| 5 Axis Bridge Saw CNC Stone Cutting Machine | |
| Model | CNC Stone Bridge Saw Machine |
| X, Y, and Z | 3200*2000*400mm |
| C axis | ±360° |
| Moving speed | Xaxis 30m/min Yaxis 30m/min Zaxis 15m/min |
| Servo motor | X and Y 1300W absolute servo motor Z axis 1300W absolute servo motor with brake A and C 1000W absolute servo motor |
| Guide rail | X, Y, and Z: # 30 |
| Spindle | mechanical spindle,10000RPM,with BT40 |
| Rack | X、Y 2MT-WIN |

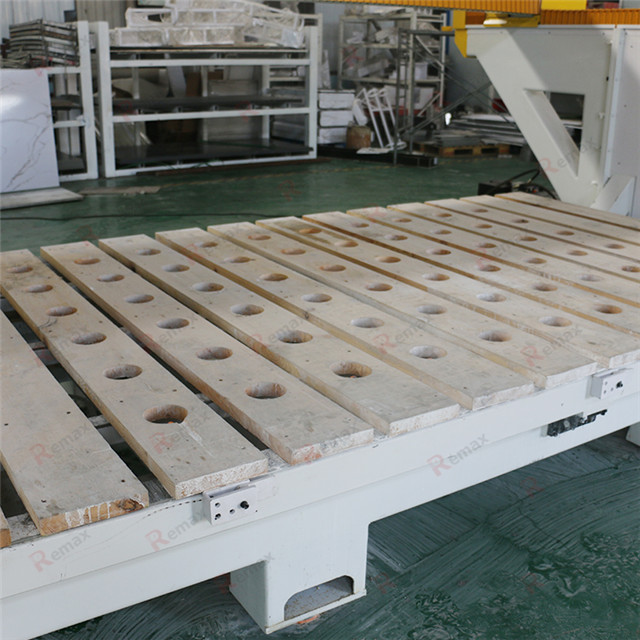

| Worktable | Structure Square timber Worktable size 3200×2000mm Turning angle 0-80° Max. weight for turning 800KG |
| Reducer | X/Y: Japan SHIMPO |

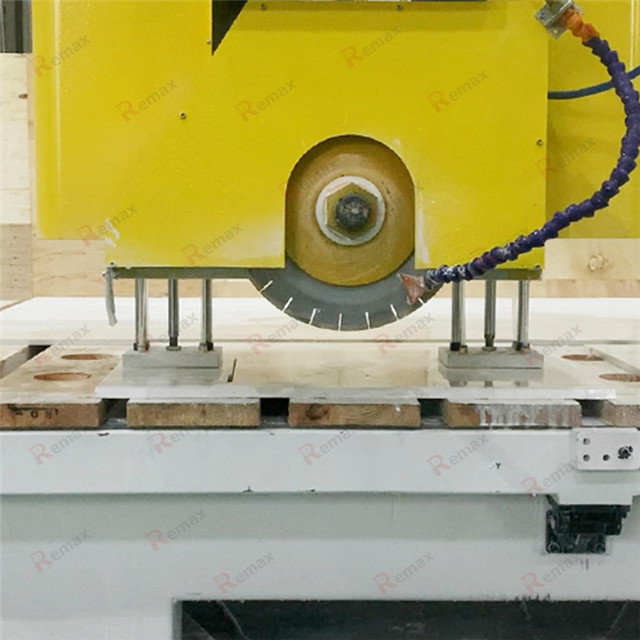

| Saw motor | 11KW motor, rated: 3000r/min |

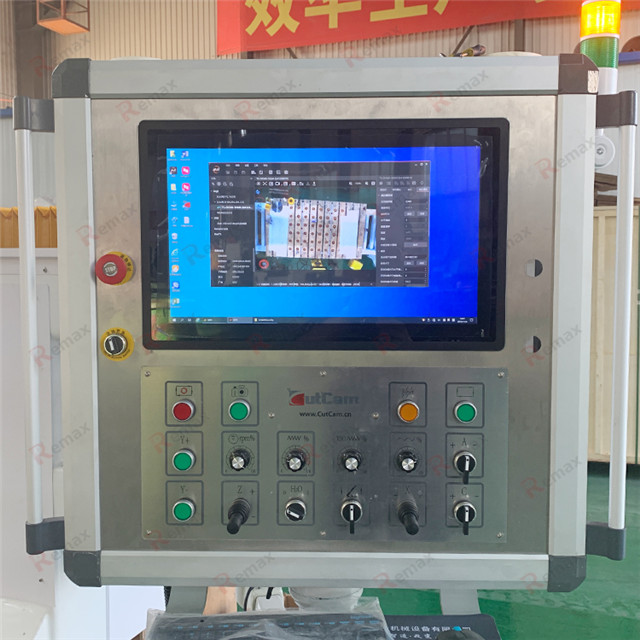

| Control system | Customized system (built-in CAM software) |
| Low-voltage electronics | French SCHNEIDER |
| Working air pressure | 0.7-0.8Mpa |
| Voltage | 380V/3P/50HZ |
| *The size, color, configuration and design can all be customized according to customer's requirements. | |

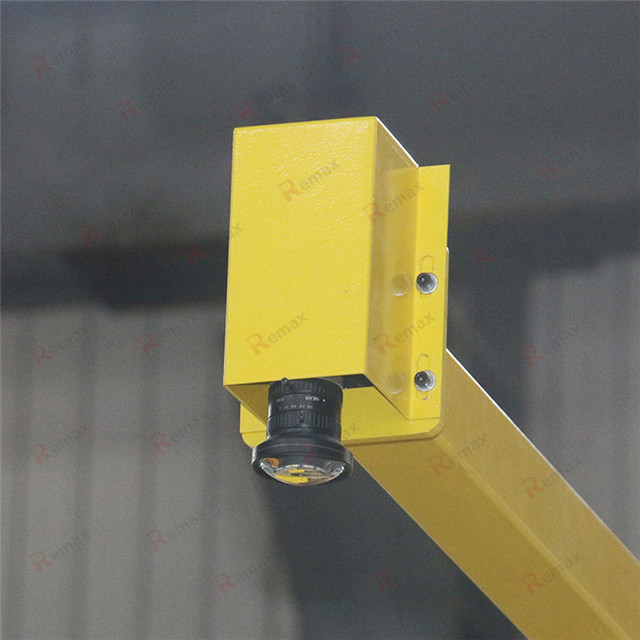

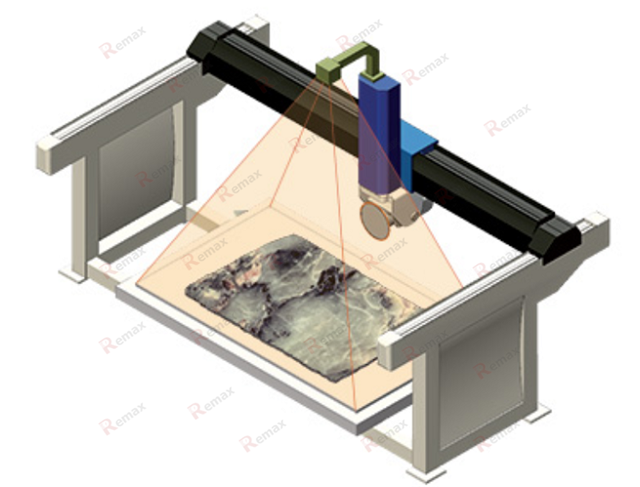

The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to be machined; it is also possible to qualify the slab edge geometrically.

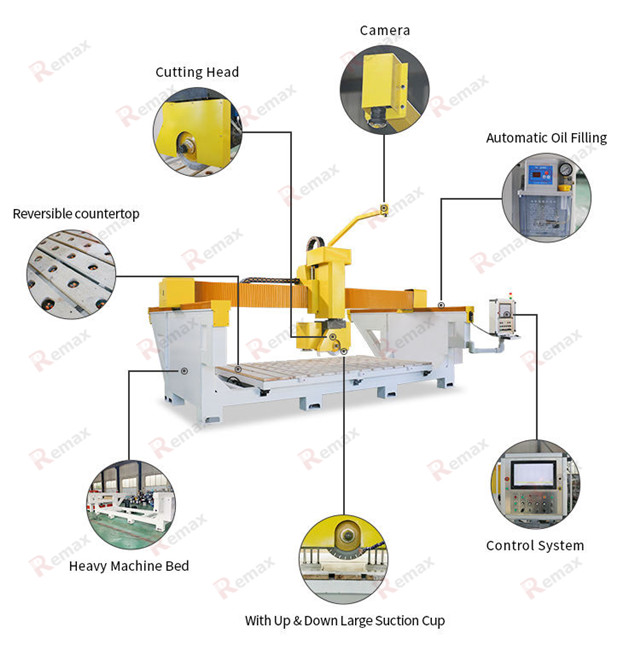

With Up & Down Large Suction Cup
Samples
For example, cutting and milling straight and inclined edges, chamfering, cutting arc edges, polygon, edge milling, edge tracking, and other powerful functions. The 5-axis bridge saw is widely used in stone processing plants, kitchen countertop processing, background wall profiling, and other fields.
| 5 Axis Bridge Saw CNC Stone Cutting Machine | |
| Model | CNC Stone Bridge Saw Machine |
| X, Y, and Z | 3200*2000*400mm |
| C axis | ±360° |
| Moving speed | Xaxis 30m/min Yaxis 30m/min Zaxis 15m/min |
| Servo motor | X and Y 1300W absolute servo motor Z axis 1300W absolute servo motor with brake A and C 1000W absolute servo motor |
| Guide rail | X, Y, and Z: # 30 |
| Spindle | mechanical spindle,10000RPM,with BT40 |
| Rack | X、Y 2MT-WIN |
| Worktable | Structure Square timber Worktable size 3200×2000mm Turning angle 0-80° Max. weight for turning 800KG |
| Reducer | X/Y: Japan SHIMPO |
| Saw motor | 11KW motor, rated: 3000r/min |
| Control system | Customized system (built-in CAM software) |
| Low-voltage electronics | French SCHNEIDER |
| Working air pressure | 0.7-0.8Mpa |
| Voltage | 380V/3P/50HZ |
| *The size, color, configuration and design can all be customized according to customer's requirements. | |
The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to be machined; it is also possible to qualify the slab edge geometrically.
With Up & Down Large Suction Cup
Samples
