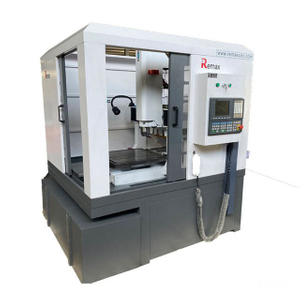

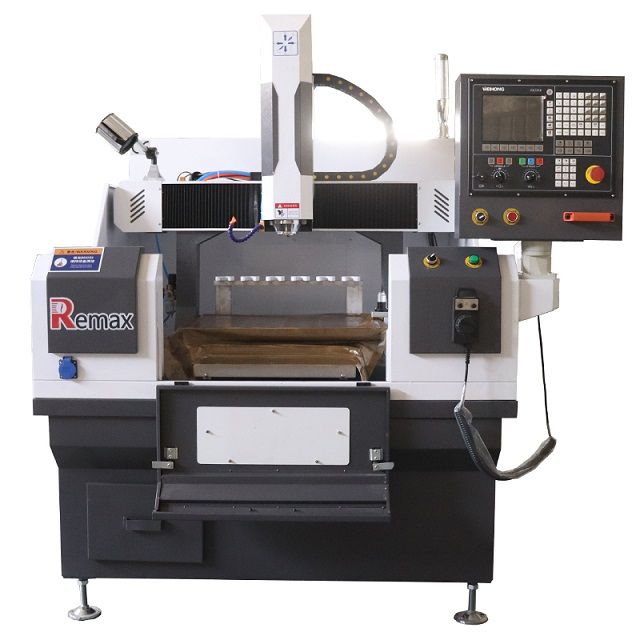

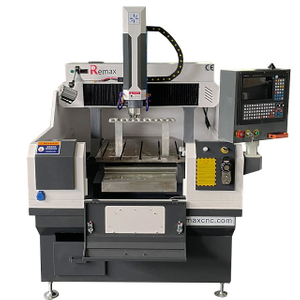

6060 ATC metal machine
Remax

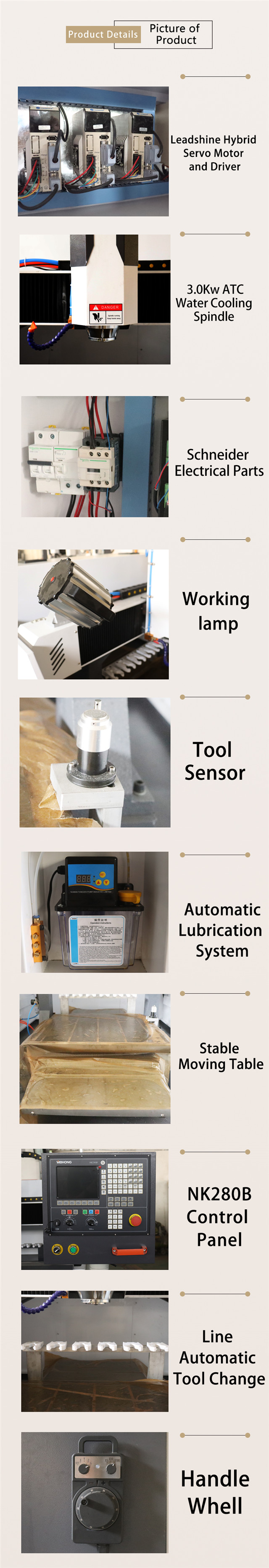

Features:
1. Integrated cast iron frame, equipped with double-screw automatic gap eliminating ball screw and floor-mounted linear guide drive, which can load heavy plates without going out of shape and ensure working accuracy.
2. High power water-cooled brushless inverter spindle motor, strong cutting force and durable.
3. High speed drive and stepping motor to improve working efficiency.
4. Special dustproof and waterproof device to prevent dust and rust, easy to maintain.
5. This machine collects the advanced technology of CNC industry, with more than 10 break point memories, which can reduce material waste.

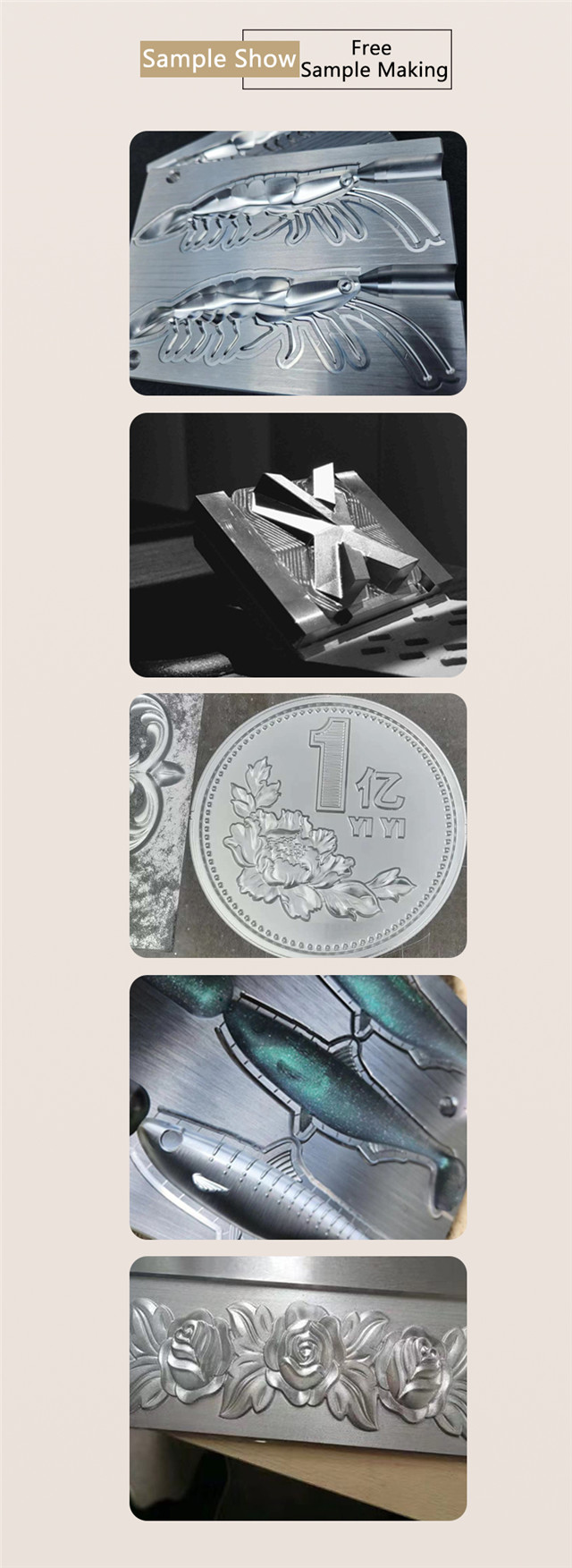

6. Strong compatibility, suitable for Type3, Art cam, Casemate, Pore, Wen tai and other CNC software and various CAD/CAM software, easy to process embossing, shadow engraving and 3D text.
7. The special water cooling system ensures the long life of the cutting machine.
8. Our 6060 mold CNC milling machine is ATC type CNC milling machine with linear type automatic tool change function and also disc type automatic tool change available.
9. Equipped with ATC tool box with 4 tools to speed up the tool changing speed.
| Description | Parameter |
| Working area | 600*600*300mm |
| Control system | WEIHONG NK280B |
| Table Surface | T-slot table |
| Drive Mechanism | Table moved |
| Spindle Motor | 5.5KW water-cooling spindle(4.5/5.5/6.0kw for option) |
| Spindle speed | 0~18000 RPM |
| Machine frame | Cast by iron |
| Motor Drive | Delta 750w servo driver and motor |
| Accuracy | ±0.01mm |
| Engine bed resolution | 0.01mm |
| Electrical components | Schneider |
| Inverter | Fuling |
| Software Compatibility | type3 or Wentai, ARTCAM/CAXA |
| Square rails | HIWIN |
| Working Voltage | AC220V/50Hz |
| X,Y,Z Structure | TBI Ball Screw |
