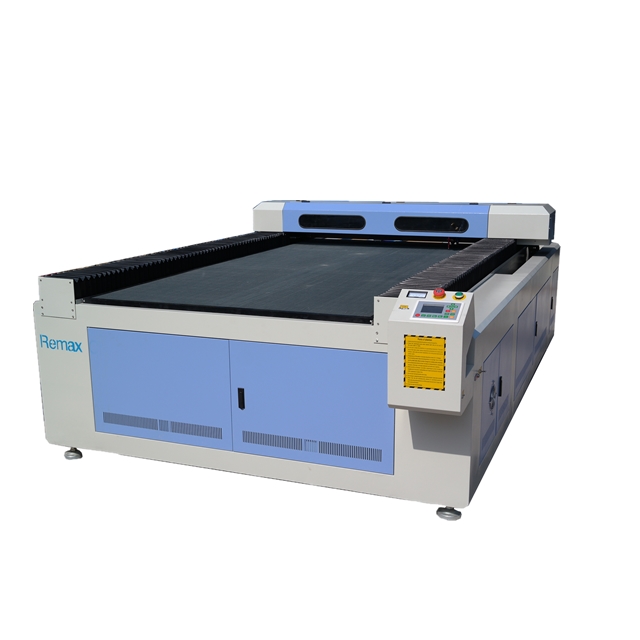

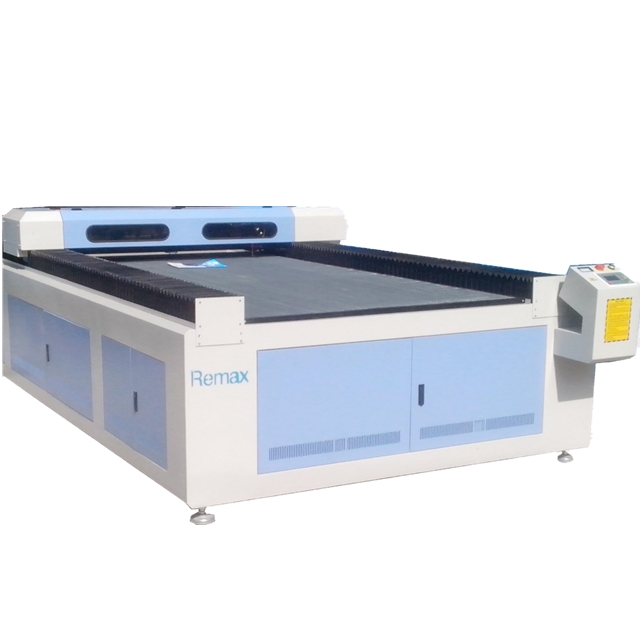

Jinan Remax 1325 CO2 Wood Acrylic Laser Engraving Cutting Machine

Parameter

Model	1325Laser machine
Engraving and Cutting Area	1300*2500mm
Tube type	CO2 sealed glass tube
Laser Power	100W Co2  laser tube,
Cooling	Pure water with CW5000 water chiller
Working table	blade table(honeycomb working table for optional)
Engraving Speed	0-60,000mm/min
Cutting Speed	0-40,000mm/min
Reposition Accuracy	±0.01mm
Minimum Character Size	English:1mm ; Arabic numbers:1mm
Resolution	4,000 dpi
File output mode	2.0 USB interface
Machine Power	<2,000W
Support Format and Software	PLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw, Photoshop
Working Environment Temperature	0-45°C
Drive system	Stepper motor

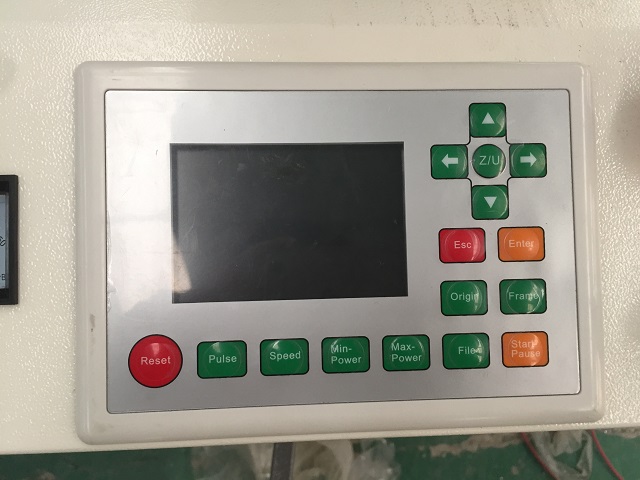

Control system	Ruida control system
Red pointer	With
Exhaust smoke system	Big exhaust fan
Working Voltage	220V,50HZ/60HZ

Features

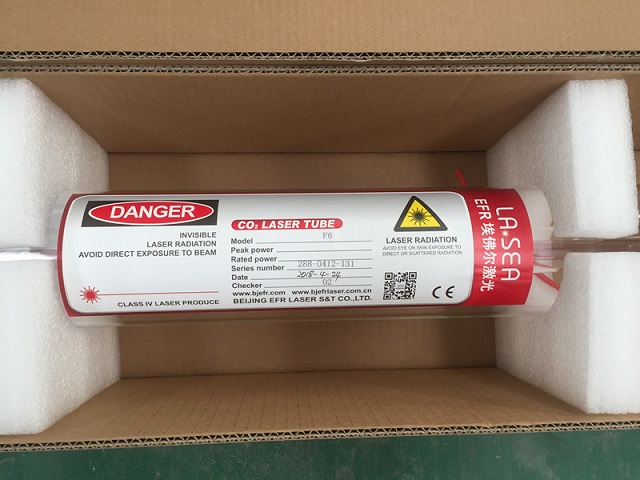

1. Aopt RECI/EFR laser tube, higher power, more stable, longer use time, and inflatable.

2. This model has high-power, intelligent and multifunctional chillers.

3. Wide range of material processing, smooth cutting edge, no burrs, avoid polishing, fast processing speed, high precision, less waste and high efficiency.

4. Suitable for mass production of large and medium-sized enterprises, as well as small enterprises and individual processing.

5. adopt USA Lens and mirrors with good reflective effect.

6. The unique water alarm and automatic protection system can effectively protect the service life of the

laser tube. The power control system has a dedicated automatic protection device to maximize the stability

and safety of the machine.

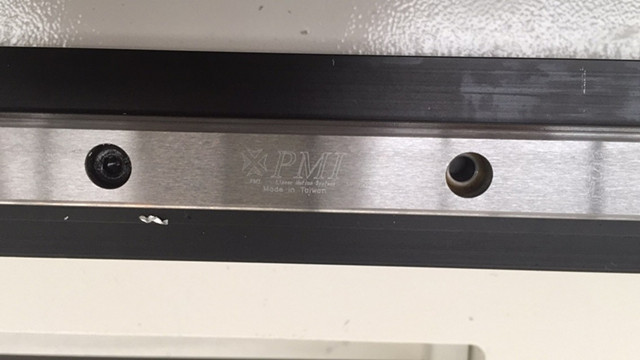

7. Adopt Taiwan PMI square linear guide rail installed on X Y axis, make sure the works stably and precisely.

Machine parts

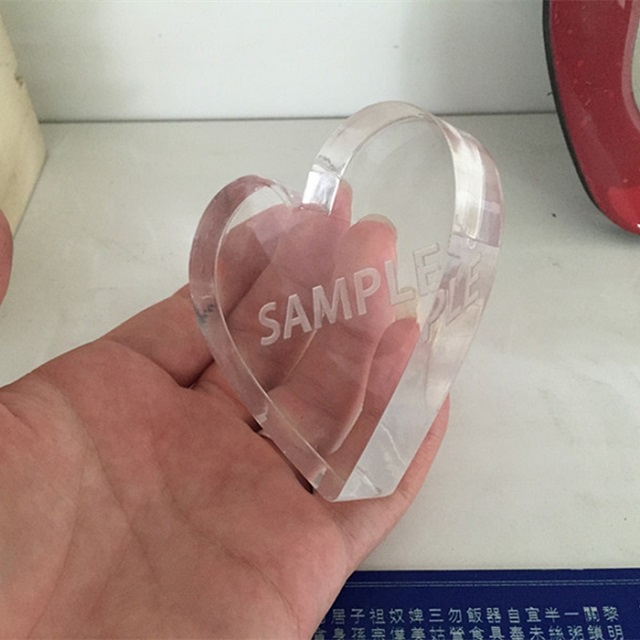

Machine sample

FAQ

Q: Do you have after-sale service and support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world.

We need your machines running in order to keep your business running.

Q: I am not sure if this laser cutting machine suitable for my work?

A: Don't worry, just tell me your working materials, max working area and cutting thickness, then I will recommend you the most suitable machine for you.

Q: Are you factory or trading company?

A: our factory make laser cutting machine in China more 9years.

All of our machines are CE certified.

Q:This is the first time I use this kind of machine, is it easy operate?

A: There are guide video that show how to use machine and english instruction book send to you with

machine. If there is still have any question, we will provide free professinal guide for you until you could

use machine well.

After sales service

A. Pre-Sales Service

1.We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.

2. 24-hours online Inquiry and consulting support.

3.Support sample testing .

4.We welcome you to visit our factory.



B. After-Sales Service

1. Training how to install the machine, training how to use the machine online.

2. Engineers available to clients' factory for training.

3.Guarantee for one year

4.24-hour technical support by email or calling

5.User-friendly English manual for machine using and maintaining

6.Free technician training for customers.
