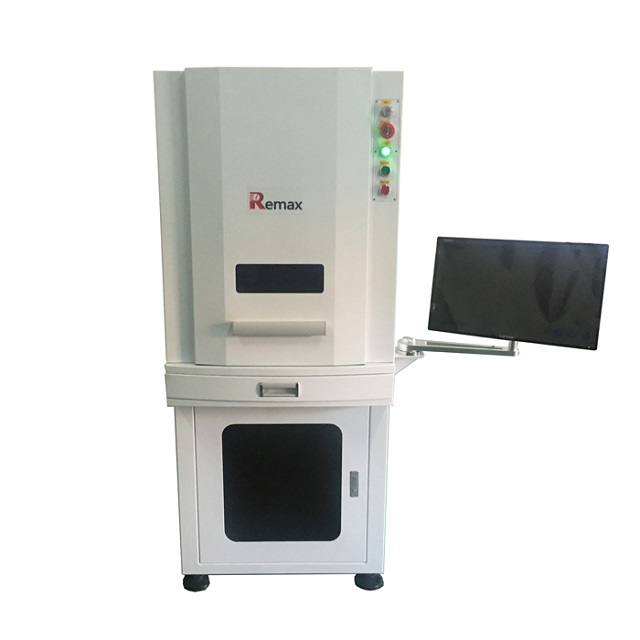

Laser Marking Machine For Metal

Availability:
Quantity:
  • Remax

1. Parameter

Power

20W / 30W / 50W

Laser Wavelength

1064nm

Marking Area

110*110 200*200 300*300mm for optional

Marking Depth

0.3mm / 0.4mm / 0.5mm / 1.0mm

Marking Speed

7000mm/s

Minimum Line Width

0.012mm

Minimum Character

0.12mm / 0.15mm / 0.17mm / 0.17mm

Repeated Precision

±0.003mm

Control Board

EZCAD

Life-span of Fiber Laser Module

100000 hours

Focus Spot Diameter

<0.01mm

Power Stability (8h)

<±1.5%rm/s

Power Requirement

<500W

Cooling Way

Air Cooling


2. Features

1)Featured with the integrated design, the fiber laser marking system is of compact size, low consumption, long life-span, high efficiency, free from maintenance, convenient to be installed and taken away.


2)The whole machine is of easy operation, and one key to control the power on and power off.

3)With strong extensive ability, the equipment can be available in all kinds of working environment, especially suitable for the unique processing and operation, convenient to be matched with other automatic equipments.

4)With superior laser beam, and precise light spot, it is no need of consumable items.

5)he scanning galvanometer is imported with original packaging, and with compact size and fast speed, it is of precise location, its software operation is simple and function is strong.


3. Machine parts

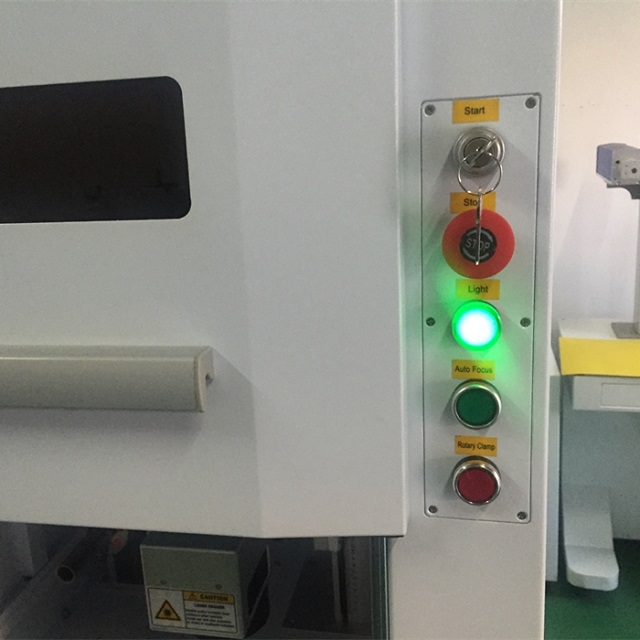

metal lasermarking machine 1


metal lasermarking machine 4


4. Machine sample

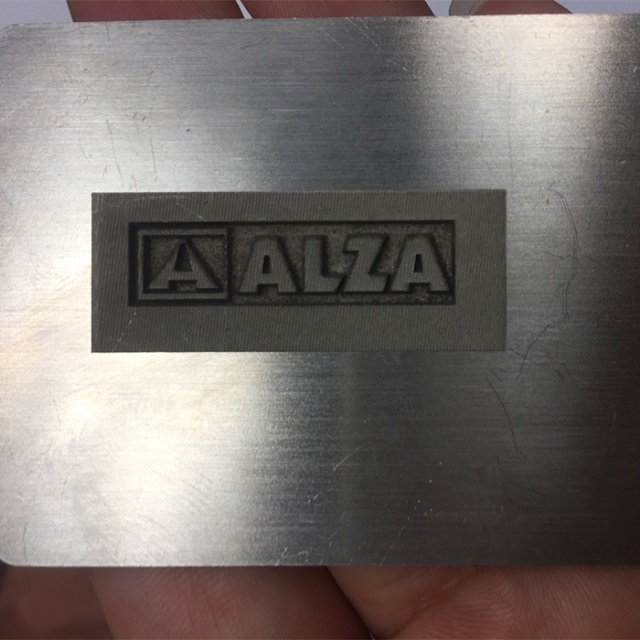

metal lasermarking machine 5

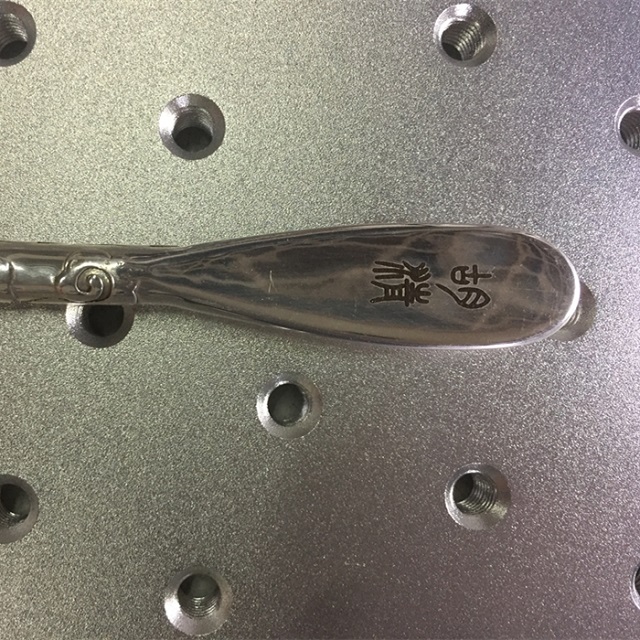

metal lasermarking machine 6


metal lasermarking machine 7


5. FAQ

Q: Are you  a factory or trading company ?

A:We are a manufacturer

Q:How i can choose a suitable machine?
A:Tell us the max working area,the material and its thickness you want to process ,we can help you choose the best suitable machine .

Q:Traning and use ?
A:We will supply friendly Engish operation manual and Installation .
customers is warmly to welcome to visit for free traning .
if you need ,we also provide the engineer overseas training .,

Q:How about the documents after shipment?
A:After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice,

 B/L, and other certificates as required by clients.

Q:Certification
A:CE,ISO,FDA,CO,FORM A,FORM E,FORM F,FTA...


6. Our service

1. The normal machine has been adjusted correctly before shipment.



2. You will be able to use the machine immediately.



3. You will be able to get free training suggestions about our machines on our machines.



4. You will also get free advice and consultation, technical support, and service via email/fax/telephone

as well as lifetime technical support.
