| Quantity: | |
|---|---|
saw machine
Remax
High efficiency and low energy consumption
Efficient mute
Simple operation and high safety performance
Durable and long service life of saw blade
Easy to move, high portability
Servo motor for feeding cut.more stable Laser for cutting straigt line
0-90m/min blade speed

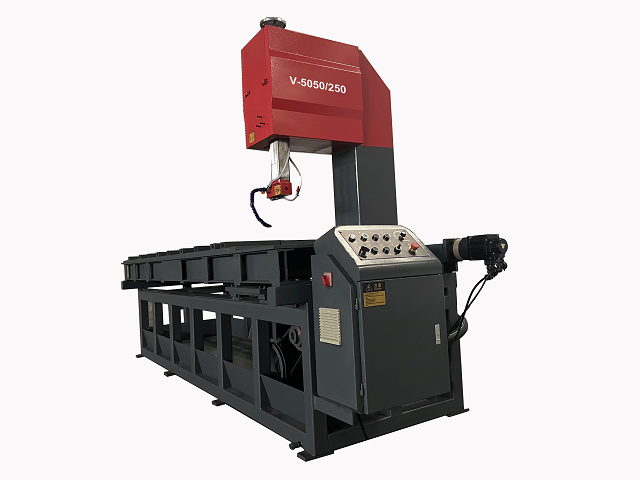

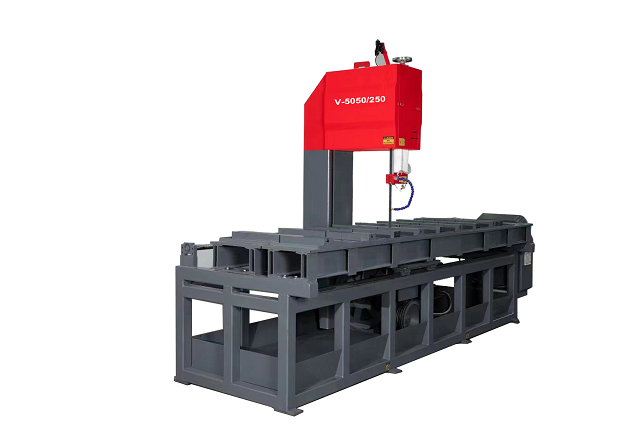

Product | Vertical Band saw Machine | |
Model | V-5050/250 | |
Technical Data |
Max.Cutting capacity(mm) | Length 2500 |
Throat depth 500 | ||
Height 500 | ||
Blade speed (m/min) | 0-90 by Inverter | |
Blade size (mm) | 41×1.3900 | |
Blade guides | Carbide side guides | |
Blade cleaning | Flood coolant | |
Main Motor (kw) | 3.0 | |
Feeding Motor (kw) | 1.0 | |
Coolant Pump (kw) | 0.09 | |
Work piece Clamping | Manual | |
Blade Tension | manual | |
Main Drive | Worm wheel drive | |
Material feed | Manual | |
Machine weight | 2450kgs | |
Machine size | 3900x1500x2500 mm | |
