1325 5 axis
Remax
| Description | Parameter |

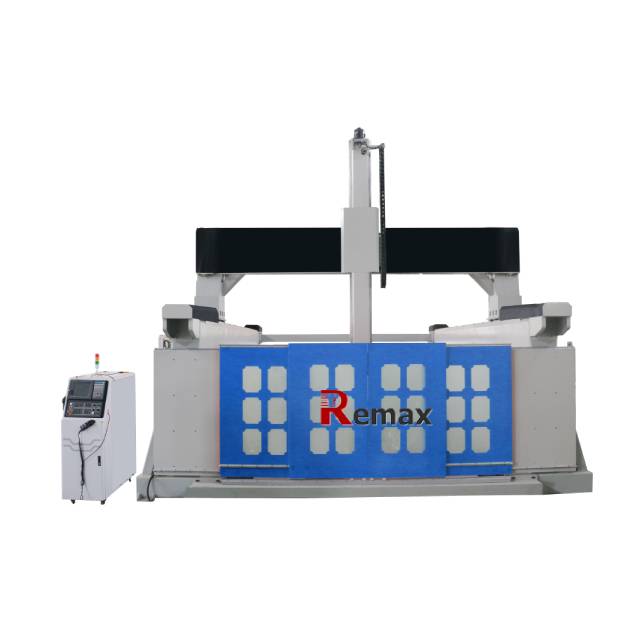

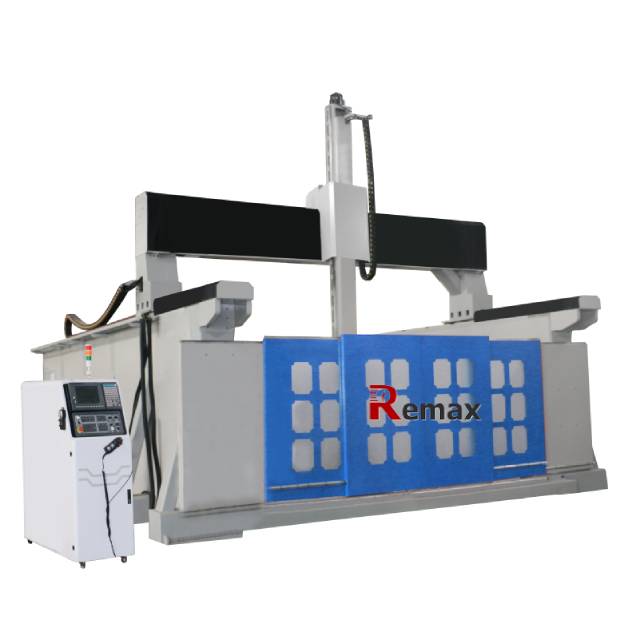

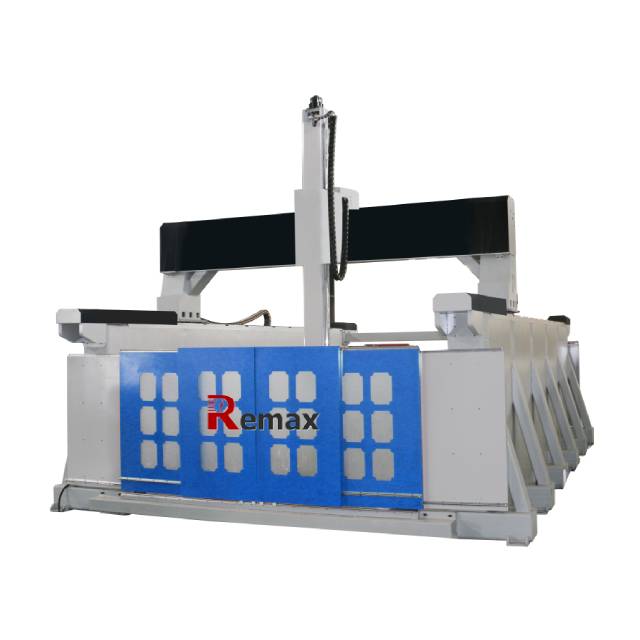

| Product name | 1325 3d large size 5 axis cnc router milling engraving machine |
| Working Table Size(mm) | 1300×2500 |
| Working area | 1300mm*2500mm*1000mm |
| Spindle power | 15kw Italy HITECO air cooling spindle |

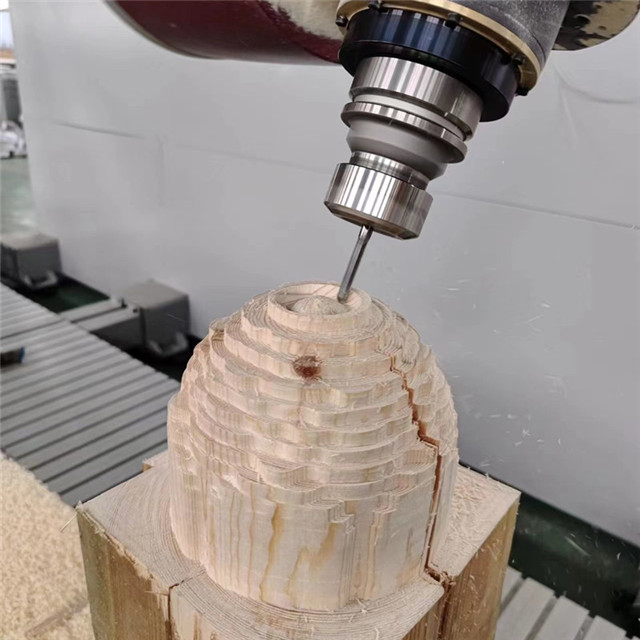

| Spindle head | AKEMDE 5 axis head |
| Spindle speed | 6000-24000rpm |
| Spindle rotation | spindle 360 degree rotation |
| Control system | NK300 control system |
| Servo motor | Delta servo motor and driver |

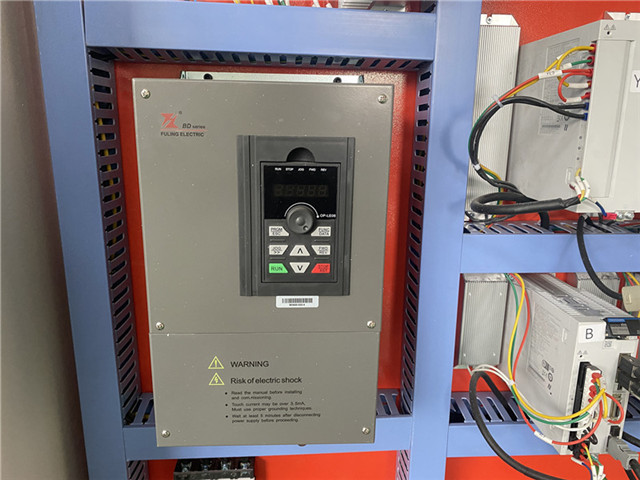

| Inverter | Fuling Inverter |
| Guide rail | HIWIN Linear Square Guide Rail |
| Transmission | Taiwan TBI Ball Screw |
| Voltage | 380V/ 50HZ/ 3 Phase |
| Electrical component | Schneider |
| Command langurage | G-code |
| Software | Artcam/Type 3 |
| Computer interface | USB |
Parts
Samples
