5 Axis Swing Spindle 3d Foam Wood CNC Milling Cutting Machine

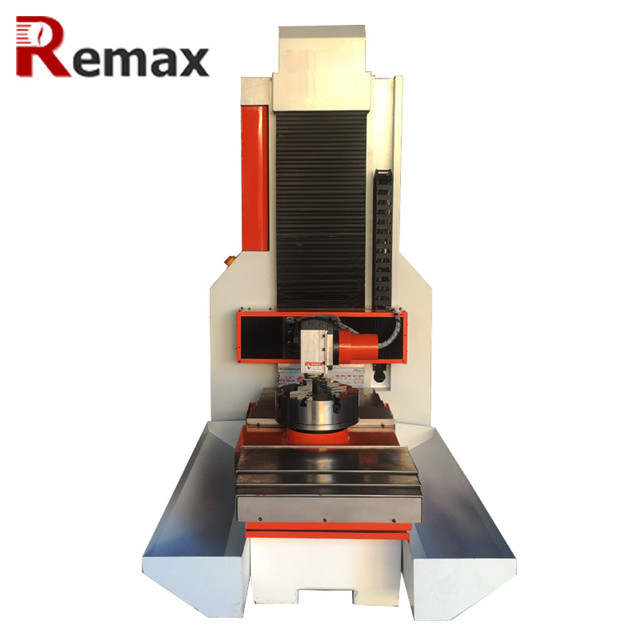

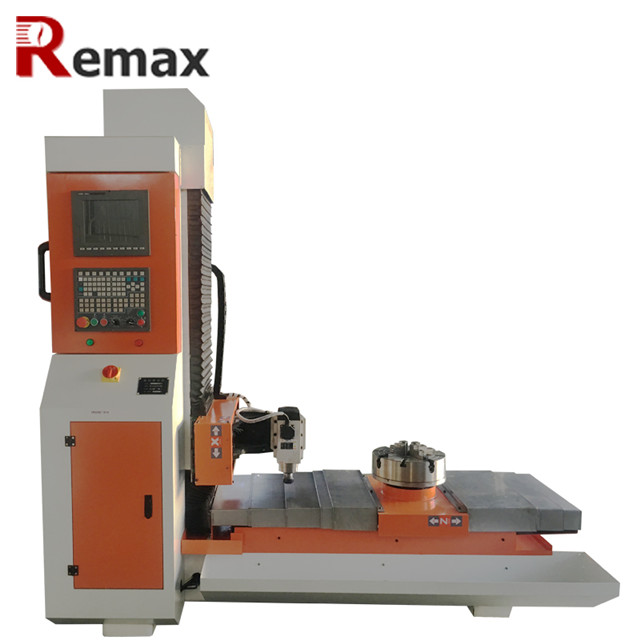

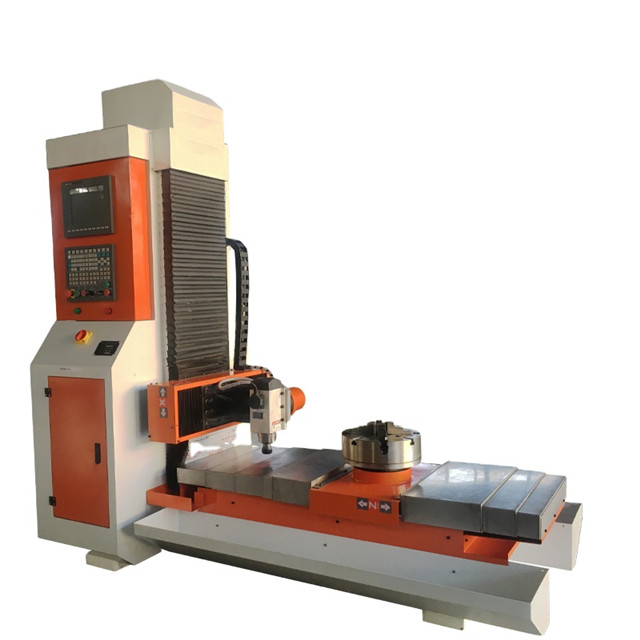

This model is a single head cnc 5 axis 3D Foam Wood milling cutting machine with no seams and high engraving accuracy.

5 axis (9)

This model is a single head cnc 5 axis 3D Foam Wood milling cutting machine with no seams and high engraving accuracy.

Suitable for carving non-metallic and non stone materials such as woodworking.

It can carve complex 3D shapes and achieve hollow carving.

The carving has high completeness, and most shapes do not require manual deep processing.

Range of Spindle Speed(r.p.m)	1- 18000rpm
Working Table Size(mm)	500*800mm
Rotary diameter	500mm
Processing height	800mm
Frame	Integral steel structure
Repositioning Accuracy	±0.05mm
The maximum load of the workpiece table	200KG
Voltage	AC220/380V 50HZ
Spindle	4.5kw air cooling spindle
Control system	Nk300 5-axis system, can be used offline and no need to connect to a computer
command system	G code, u00, mmg, plt
Transmission	Ball screw 32mm
Guide rail	30 Linear guide rail
Driving system	Leadshine Servo motor and driver 750w
Software	ArtCam / powermill
Application	Solid wood, resin, styrofoam foam, substitute wood, plastic etc
Weight	about 1500kg
Electrical Components	Schneider
Limit	Photoelectric limit
