1600*3000mm CO2 Laser Cutting Machine With 130W Reci Laser Tube

1. Parameter

Working area	1600x3000mm
Laser Types	CO2 Laser
Laser power	80W/100W/150W/180W/260W
Engraving speed	0-60,000mm/min
Cutting speed	0-40,000mm/min
Location precision	≤+0.01mm
Resetting positioning accuracy	≤+0.01mm
Highest Scanning Precision	4000DPI
Power supply	AC110V/220V+10%, 50HZ/60HZ
Gross power	<1,500W
Minimum shapes	Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm
Driving system	Stepper
Cooling mode	Water-cooling and protection system
Control system	Ruida
Graphic format supported	BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST
	(TIANDAO Embroidery Software), DWG, CDR, etc.
Compatible Software	CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc.
Working Environment	Temperature:0-45C,
	Humidity 5-95%(No Condensate Water)

2. Features

1. Art-crafts: laser machine for wood,bamboo, elephant's tusk,bone, leather, marble,sea shell etc.

2. Advertisement: double color board,acrylic engraving and cutting,label engraving,crystal etc.

3. Leather and cloth process:compound leather, man-made leather,fabric,fur ,toy etc.

4.1630 CO2 laser cutting machine machine structure welded by steel, very strong.

5. CO2 laser cutting machine with Taiwan Hiwin/PMI linear rail.

6. Machine used USA II-VI lens and mirror, long life working time.

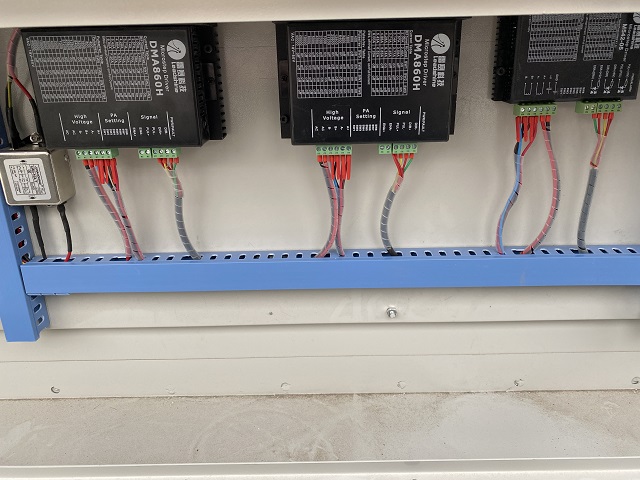

7. Ruida control system, easy operate. Red dot spot, S&A water chiller,leadshine driver and stepper motor.

3. Machine parts

4. Machine sample

5. FAQ

Q: Are you  a factory or trading company ?

A:We are a manufacturer

Q:How i can choose a suitable machine?
A:Tell us the max working area,the material and its thickness you want to process ,we can help you

choose the best suitable machine .

Q:Traning and use ?
A:We will supply friendly Engish operation manual and Installation .
customers is warmly to welcome to visit for free traning .
if you need ,we also provide the engineer overseas training .,

Q:How about the documents after shipment?
A:After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice,

B/L, and other certificates as required by clients.

Q:Certification
A:CE,ISO,FDA,CO,FORM A,FORM E,FORM F,FTA...

6. Our service

1. The normal machine has been adjusted correctly before shipment.



2. You will be able to use the machine immediately.



3. You will be able to get free training suggestions about our machines on our machines.



4. You will also get free advice and consultation, technical support, and service via email/fax/telephone as

well as lifetime technical support.
