| Quantity: | |
|---|---|

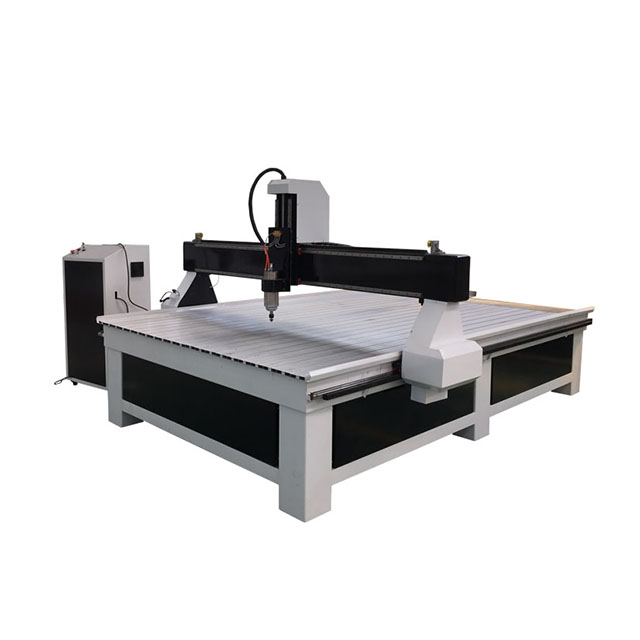

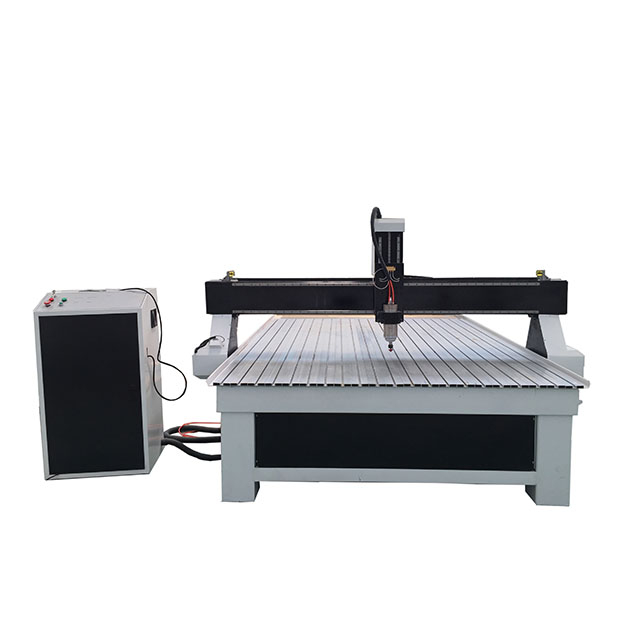

2030
Remax
84659900
1 Parameter:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 2000x3000x200mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |
4 | Table Surface | T-slot Table |
5 | Frame | Welded Structure |
6 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Guide |
7 | Z Structure | Hiwin Rail Linear Guide and TBI Ball Screw |
8 | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
9 | Max. Rapid Travel Rate | 25000mm/min |
10 | Max. Working Speed | 18000mm/min |
11 | Spindle Power | 3.2kw water cooling spindle |
12 | Spindle Speed | 0-24000RPM |
13 | Drive Motors | Stepper Motor |
14 | Working Voltage | AC220/380v 50/60HZ |
15 | Command Language | G Code |
16 | Operating System | DSP System (Options: Nc studio/Mach3 PC Software) |
17 | Computer Interface | USB |
18 | Flash Memory | 128M(U Disk) |
19 | Collet | ER20 |
20 | X,Y Resolution | <0.01mm |
21 | Software Compatibility | Type3/UcancameV9/Artcam |
22 | Running Environment Temperature | 0 - 45 Centigrade |
23 | Relative Humidity | 30% - 75% |
24 | Inverter | Delta/Fuling |
25 | Electrical components | Schneider |
26 | Limit switch | OMRON |
27 | Driver | Leadshine 860 |
2 Features:
1)Welded steel pipe lathe bed, strong and never out of shape
2)Double motors and drivers of Y axis which can ensure steady movement
3)Rack gear transmission ensures fast speed and high accuracy
4)Imported HIWIN square rail ensures high accuracy and heavy workload
5)Adopt vacuum system. Made by advanced international technology, with double cavities, configured with vacuum pump of strong adsorption, can absorb different size materials
6)Machine with leadshine 860 driver and stpper motor, you can choose Taiwan Delta or Japan YASKAWA servo motor and driver.
7)Humanistic design,the machine can be disassembled,so it is easily transported.

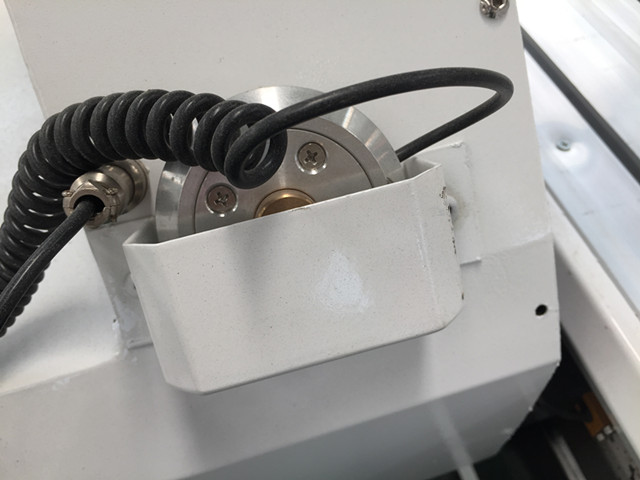

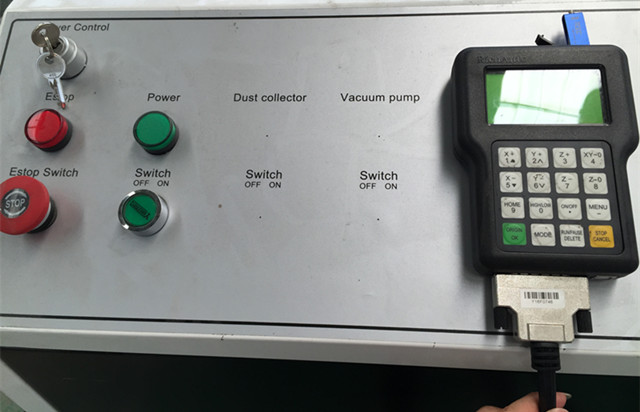

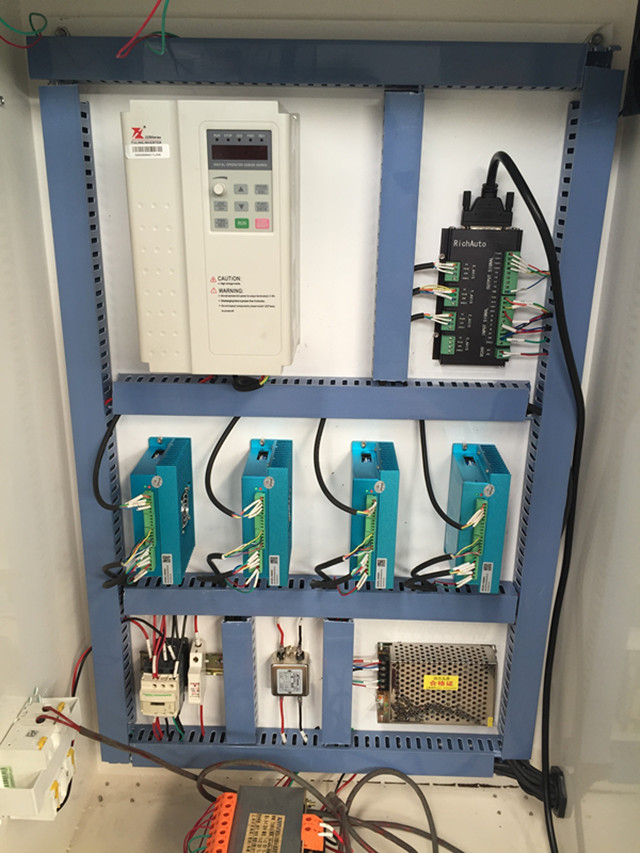

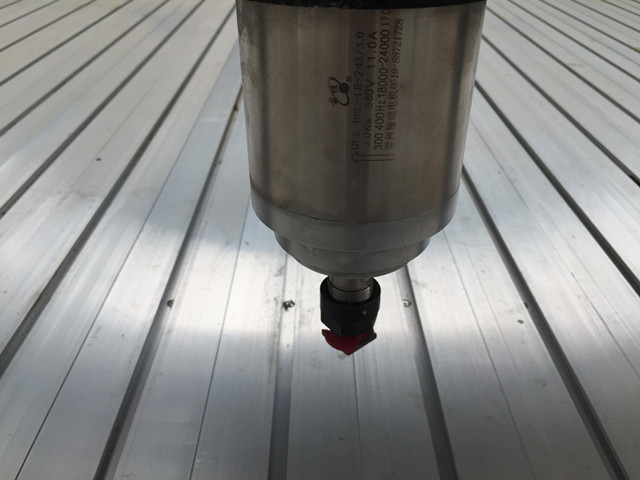

3 Machine parts
4 Machine sample
5 FAQ
Q：I got the Artcam software to work. I actually use another design program Fusion 360 or sketchup.
A：Ok, For the Artcam software sent to you, because some customers don`t have drawing software themselves, we give it for free.If you have drawing software, you can also use it, as long as the drawing software can generate G code.
Q：What is the correct procedure to get my files to operate on the CNC?
A：After you finish the drawing in the software, generate G code, export it to the U disk, then insert the U disk into the handle, find and open the file in the handle to operate the machine.
Q：I don't how to use machine.
A：Don't worry friend, we will send you the English manual and teaching video, you can learn from it, if you still have problem, our engineer can video teach you or go to your country training you.
Q: For the water cooling spindle and air cooling spindle, I don’t know how to choose it.
A: For the 2 spindles, if you mainly process metal and stone, choose water cooling spindle is best; you mainly process wood, acrylic etc non-metal materials, choose air cooling spindle is better.
Q:Can you make sample for me? I want to see how the machine works.
A: Yes we can, you send sample picture or provide STL format files to us is ok.
Q: What kind of tools can I choose? Can I buy more from you.
A: We will provide one box tools for you with the machine. If you want more, you can buy from us.
Q: How to connect the machine to the computer?
A: Different control systems have different connection methods, we will guide you and provide manual.
6 Our service
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance,
if something is wrong with machine, you will get spare part for free.;
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
