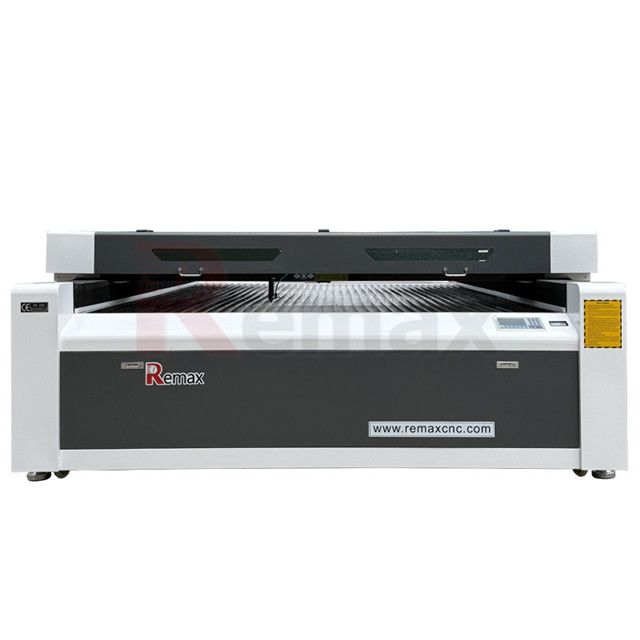

2030 Co2 Laser Engraving And Cutting Machine

Applicable Material:
Acrylic, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, wood, Crystal,etc
Availability:
Quantity:
Inquire Add to Basket

  • 2030

  • Remax

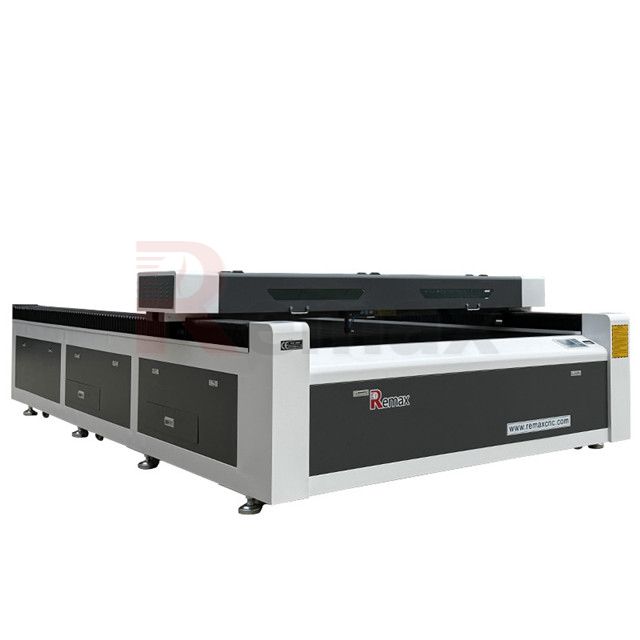

2030 laser01

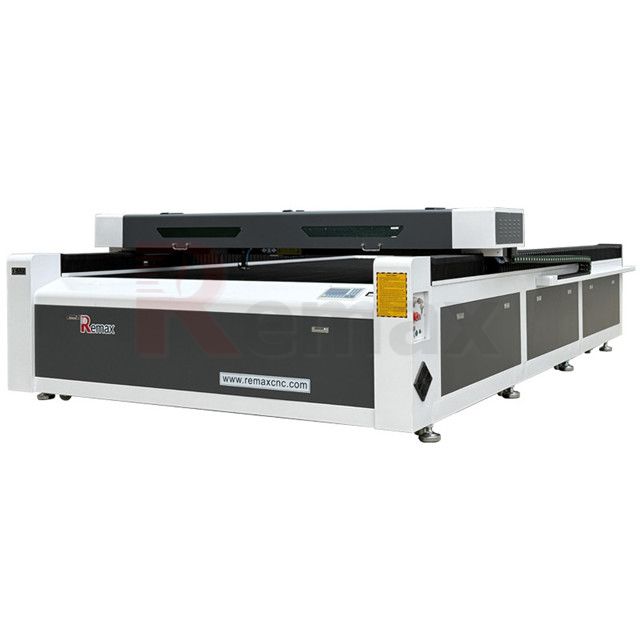

2030 laser03


Parameter


Description
Parameter
Name
2030 co2 laser cutting machine
Working area
2000*3000mm
Cooling Mode
WATER COOLING
Water chiller
cw520
Laser Source Brand
EFR
Laser power
100W /130w /150W/180W
Control system
Ruida 6445 Control system
Driver and motor
Stepper motor and Leadshine driver
Transmission
Hiwin square rail and X,Yaxis high quality belt
Work table
Knife strip funnel table
Fan
550w
Applicable Material
Acrylic, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, wood, Crystal,etc



Features


  • The machine adopts RECI laser tube with a working life of 10,000 hours to complete the engraving and cutting work.
  • Advanced Leetro or Ruida control system, easy to operate, Hiwin square rail, high-quality belt drive.
  • The USB interface supports rapid completion of data transmission.
  • Imported lenses and mirrors from Singapore, and imported focusing lenses, with high engraving accuracy.
  • The latest laser working software, compatible with CoreIDraw and AutoCAD, can directly transfer files, and high-speed USB 2.0 interface output supports offline work.
  • Using high-end technology, the best engraving and scanning accuracy, it can be clearly engraved on 1mm letters.
  • Taiwan sea temperature guide rail, high quality belt, smooth carving and cutting.
  • Optional rotating fixture for processing cylindrical objects.
  • Optional electric lifting table, convenient for thick and tube operation.
  • After power on, resume work from the point of power failure.



Machine parts

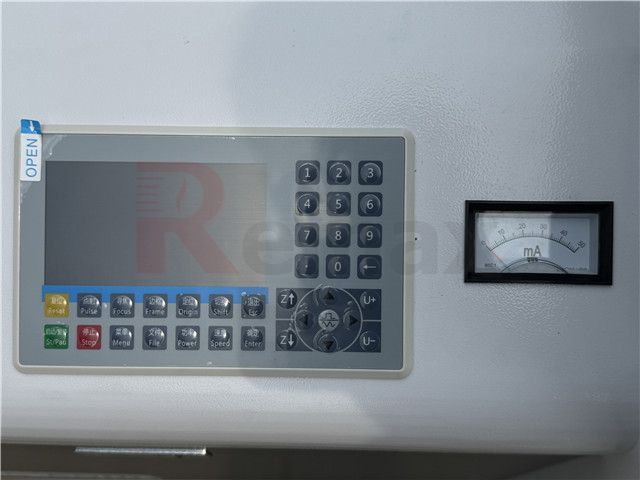

2030 laser04

Ruida 6445 Control system


2030 laser07

Knife strip funnel table

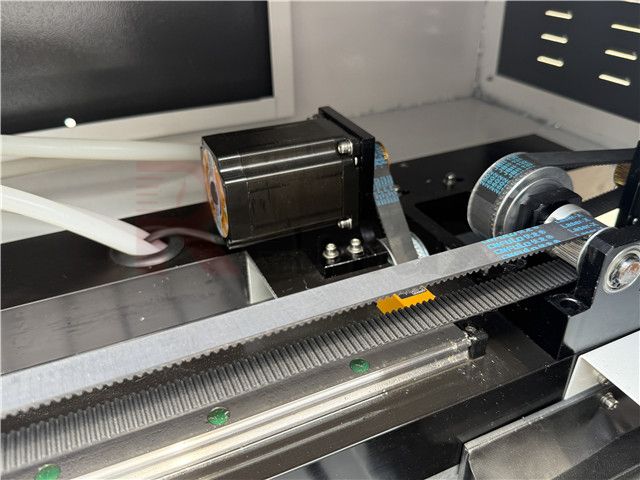

2030 laser06

Hiwin square rail and X,Yaxis high quality belt


2030 laser08

Laser Head / RECI Laser Tube

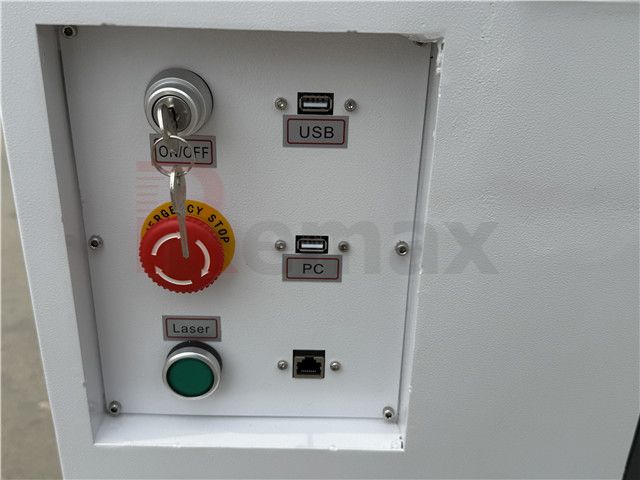

2030 laser09

Control Switch



Machine sample

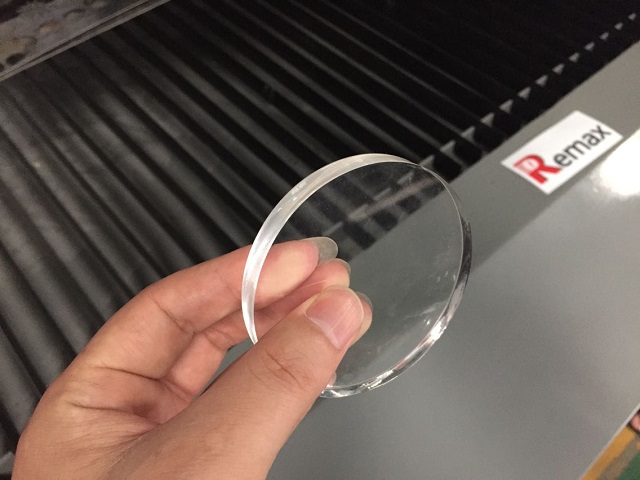

1630 sample 2

1630 sample 3

1630 samplelaser sample01


FAQ


Q: Are you  a factory or trading company ?

A:We are a manufacturer

Q:How i can choose a suitable machine?
A:Tell us the max working area,the material and its thickness you want to process ,we can help you choose the best suitable machine .


Q:Traning and use ?
A:We will supply friendly Engish operation manual and Installation .
customers is warmly to welcome to visit for free traning .
if you need ,we also provide the engineer overseas training .

Q:How about the documents after shipment?
A:After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.



Our service

1. The normal machine has been adjusted correctly before shipment.



2. You will be able to use the machine immediately.



3. You will be able to get free training suggestions about our machines on our machines.



4. You will also get free advice and consultation, technical support, and service via email/fax/telephone as

well as lifetime technical support.
