| Quantity: | |
|---|---|
6060
Remax
8456110090
PARAMETER
Model | 6060 fiber laser cutting machine for jewelry |
Working Area | 600*600mm |
| Laser Power | 1000W/1500W/2000W |
Fiber Laser Generator Brand | Max, Raycus, IPG, GW, nLIGHT for option |
Positioning accuracy | ±0.03mm |
Repeatability positioning accuracy | ±0.02mm |
XY Axis Maximum Acceleration | 0.4g |
XY Axis Max. speed | 80m/min |
Working Table | Serrate working platform |
XY Axis Transmission system | German helical rack and pinion |
Z axis Transmission system | Taiwan TBI ballscrew |
Cooling System | Industry water chiller |
Power Supply Rated Voltage | 3-phase 380V/50Hz or Custom made |
FEATURE
Bed is welded with thick steel pipes. Anneal the bed to eliminate excess hard pressure, improve the ductility of the bed, and ensure stability during the cutting process.
Aviation aluminum is manufactured using aerospace standards and is extruded using a 4,300-ton press.
After aging treatment, the hardness can reach T6, which is the strongest of all beams. Aviation aluminum has the characteristics of good toughness, light weight, corrosion resistance, oxidation resistance, and low density, which can greatly increase the processing speed.
The product has a built-in motor drive unit, and the focus lens driven by a linear mechanism automatically changes its position within a 17mm range. The user can continuously adjust the focus through the program, complete the rapid perforation of thick plates, and automatically cut plates of different thicknesses and materials. The product is equipped with D28 compound lens unit, integrated beam, optimized optical and water cooling design, so that the laser head can work continuously for a long time.
The product has a built-in motor drive unit, and the focus lens driven by a linear mechanism automatically changes its position within a range of 17mm. The user can continuously adjust the focus through the program, complete the rapid perforation of thick plates, and automatically cut plates of different thicknesses and materials. The product is equipped with D28 compound lens unit, integrated beam, optimized optical and water cooling design, so that the laser head can work continuously for a long time.

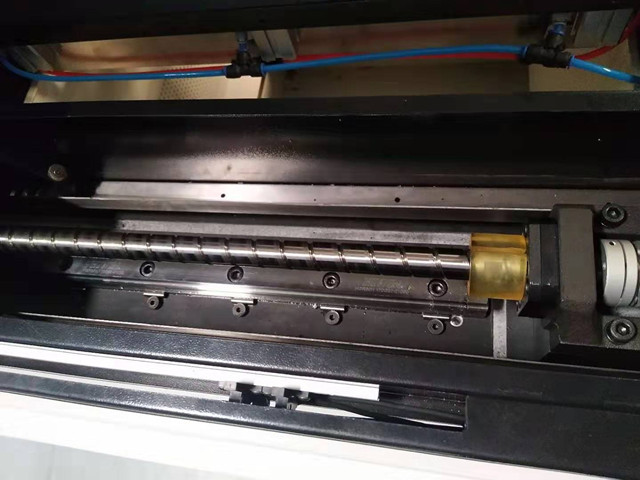

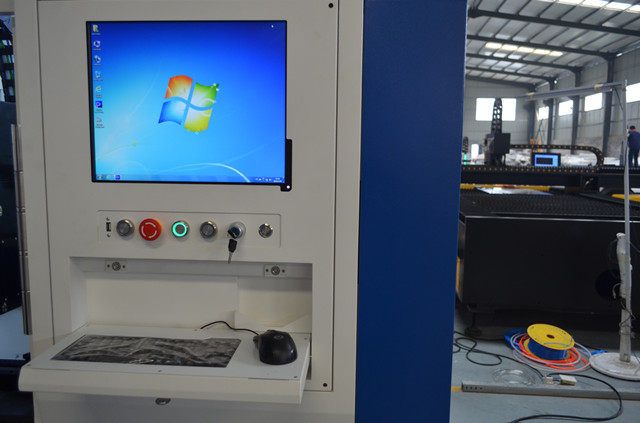

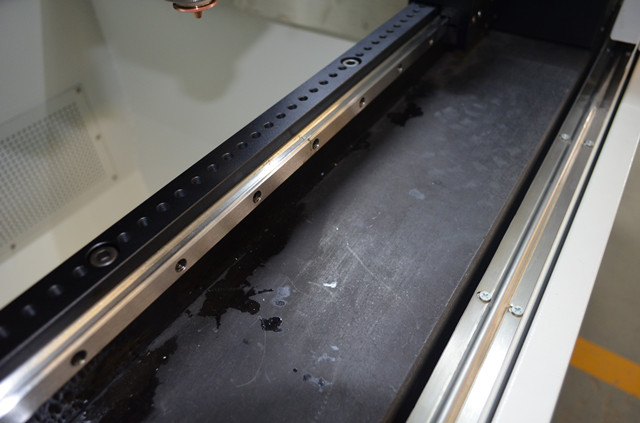

MACHINE PARTS

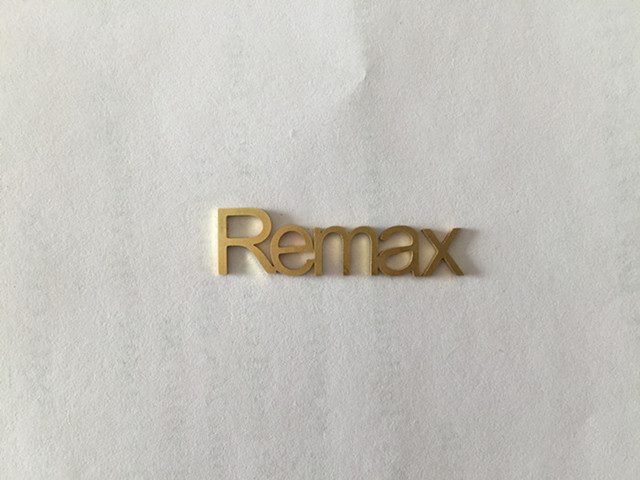

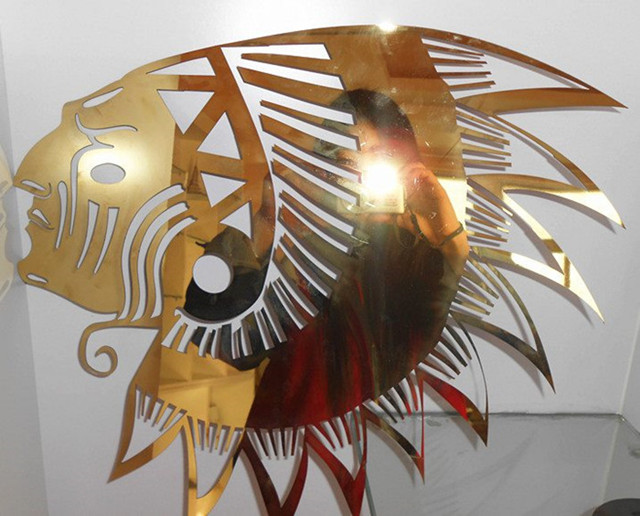

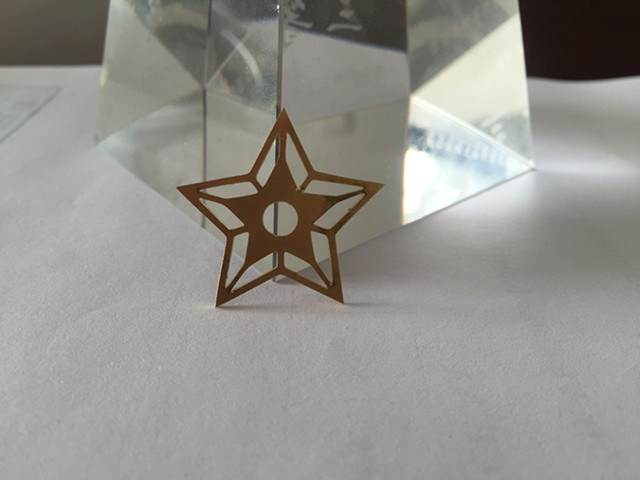

MACHINE SAMPLES
FAQ
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world.
We need your machines running in order to keep your business running.
2),Q: I am not sure if this machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting thickness, then I will recommend you the most suitable machine for you.
3),Q:How can i do if the machine goes wrong?
A:If confronted with such problems,online service is offered,you could contact our sales. Also,we offer
engineer delivery service.Please contact us asap and don’t try fix the machine by yourself or someone else.We will response within 12 hours as quick as we can to solve it for you.
OUR SERVICE
1.Free installation of video, machine and using instructional videos of software.
2.Provide free machine instruction manual, basic production installation drawing, power supply drawing
3.Free online staff training (also available directly to manufacturers); multi-language CNC trainers
4.Free online technical support, technical consultation and machine diagnostics
5.Warranty period: Free replacement of any machine fault parts, free online machine diagnosis .
After the warranty period, the manufacturer only charges the cost and freight.
