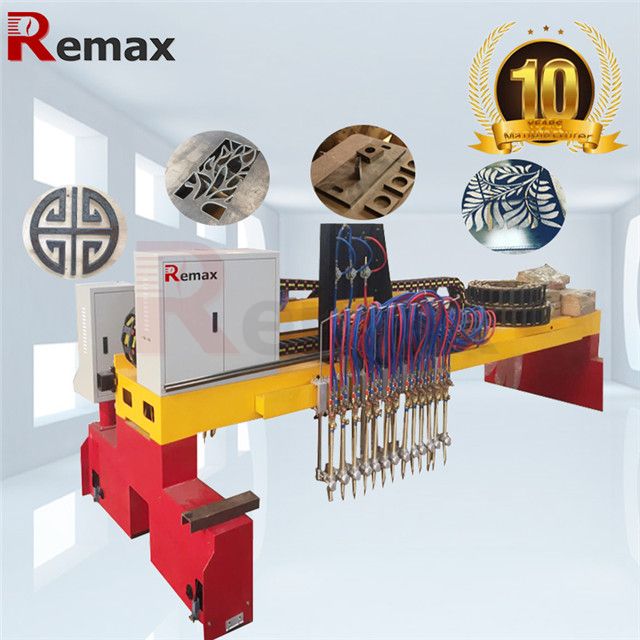

Gantry Cnc Sheet Metal Cutter Flame Plasma Cutting Machine

Plate plasma cutting machine Remax-3050 is used for cutting metal materials, such as
stainless steel, mild steel, and Aluminum etc.
Availability:
Quantity:

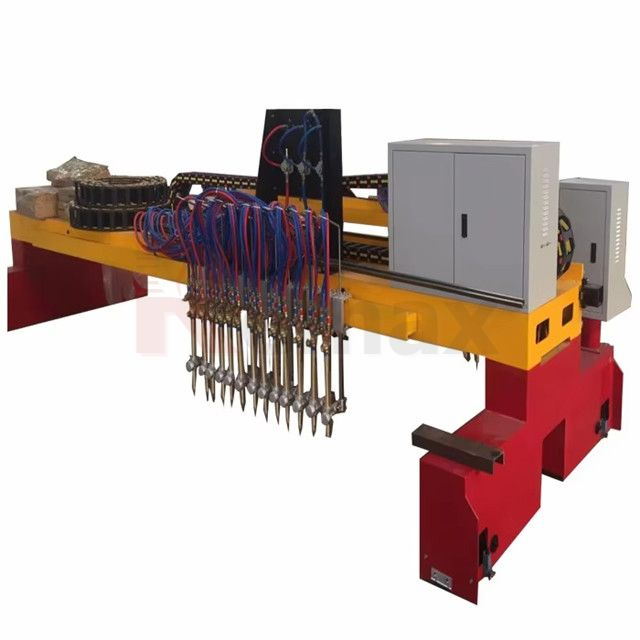

  • Remax 3015 gantry plasma cutting machine

  • Remax

gantry02


Features

1.All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric

automatic lifting,to assure cutting speed and quality.

2.Dual drive , stable performance .

3.The set-up is very simple, all kinds of CAD graphics can be read directly by our

system trough U-disk.

The  software can be edict graphics automatically.

4.Plate plasma cutting machine Collocated U-disk interface and cutting code auto converting

software for CAD drawing, CAD drawing can be input  directly into the cutter through U-disk.


Specifications

Model

Remax-3060 gantry cnc flame plasma cutting machine

Effective Cutting Width (X axis)

3000mm

Effective Cutting Length (Y axis)

6000mm

Drive Mode

Bilateral-side

CNC system

Beijing START CNC

Plasma cutting speed

50-6500 mm/min

Cutting torch lifting distance

150mm

Speed setting error

≤±5%

Max Idle running speed

12000mm/min

Torch height controller accuracy

≤±1.0mm

Longitudinal line accuracy

±0.2mm/10m

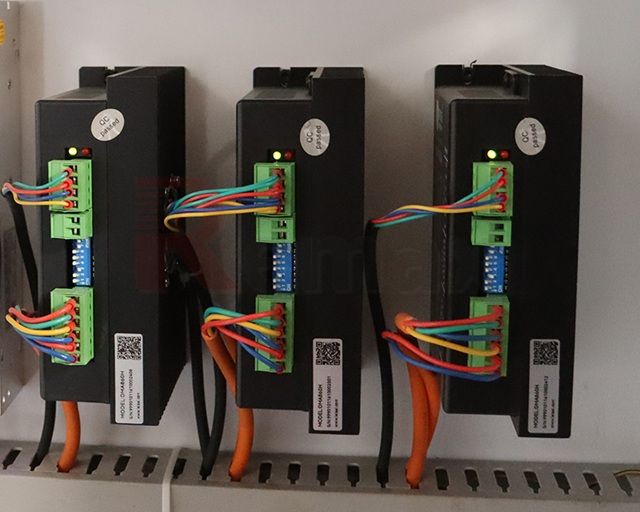

Motor and driver

stepper motor and driver

Gearbox

Hubei planet

Drive Method

Rack and square rails for X  Y Z axis

Moving Precision

0.01mm per step

Power Source

380V 50/60Hz

Height controller(plasma)

HYD THC

Plasma cutting thickness

1-32mm

length of a side ±0.5mm
Diagonal error |AD-BC| ±0.5mm
Base point return error ±0.2mm
Intersection point error ±0.5mm
Lineation forward- reverse error ±0.2mm

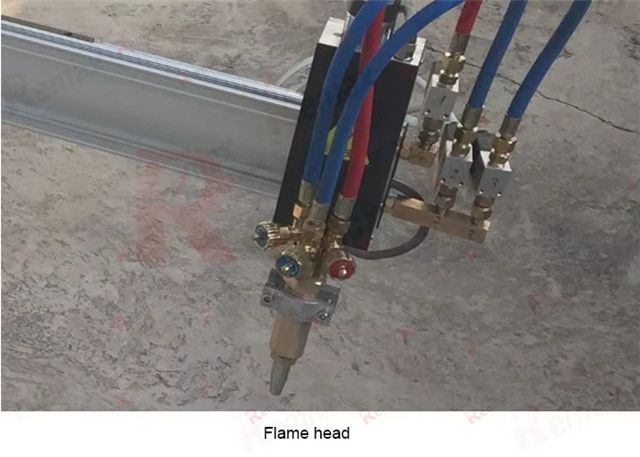

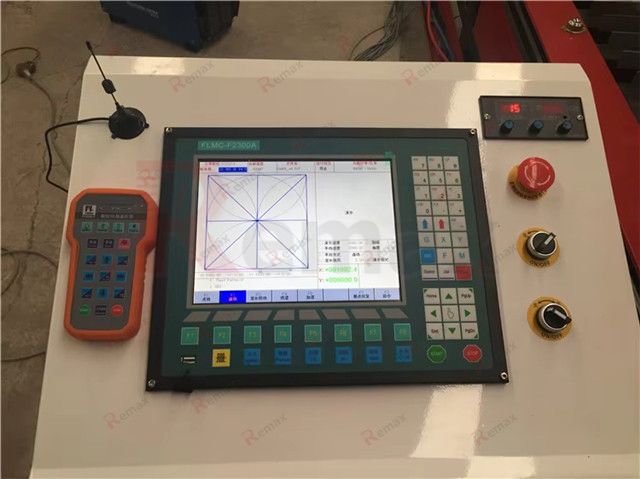

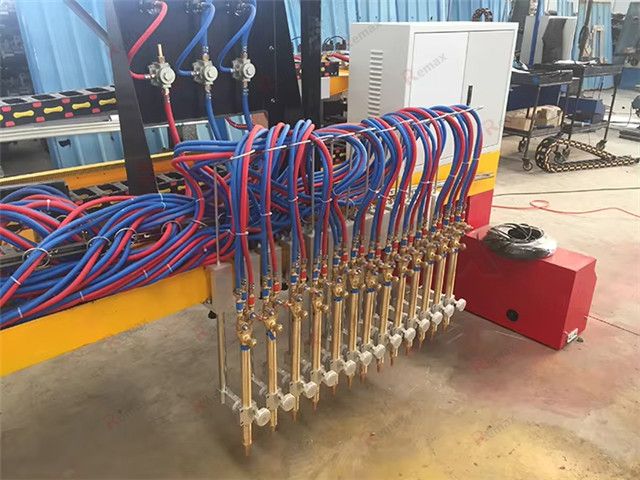

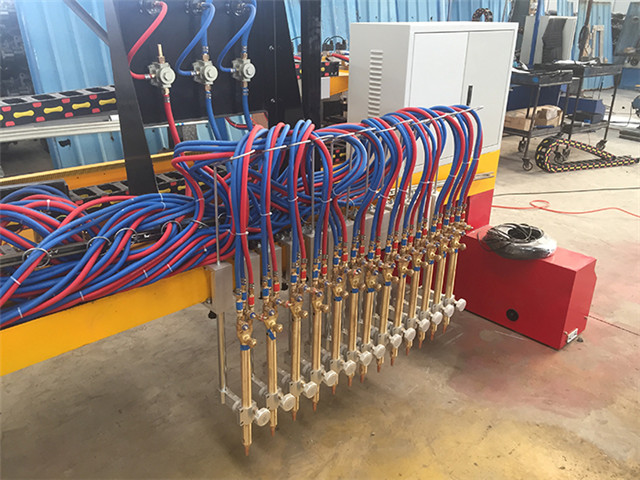

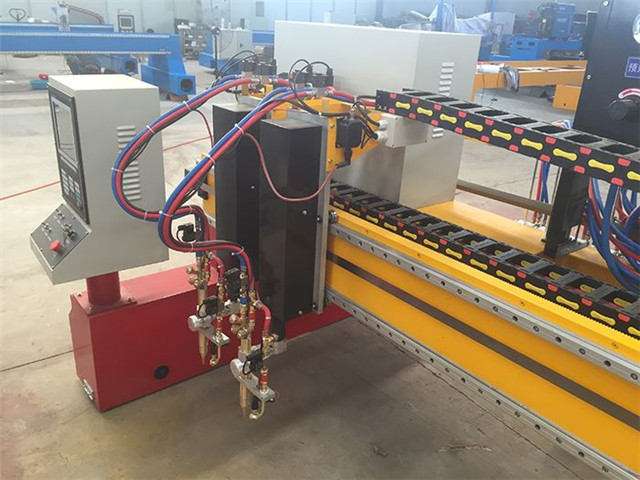

gantry plasma02gantry plasma08gantry plasma03gantry plasma01













plasma sample..

plasma sample.

plasma sample

plasma.sample

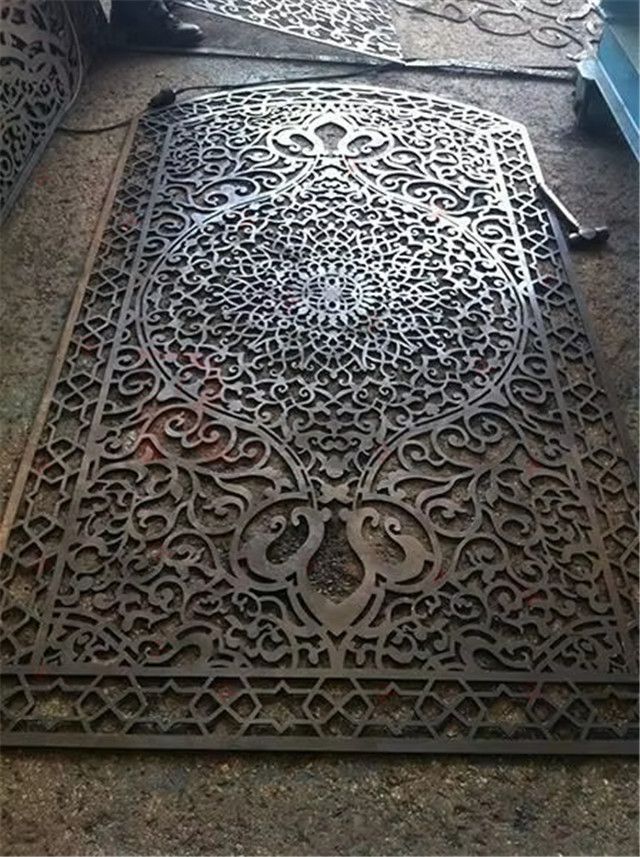

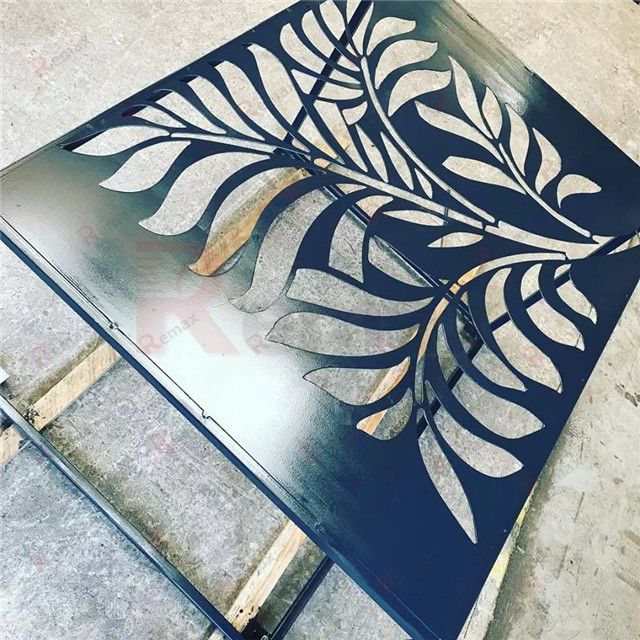

gantry plasma04gantry plasma05

A This is the first time I use this kind of machine, is it easy to operate?



There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by email / skype/ phone

/trademanager online service at any time.


B If machine have any problem after I receive it, how can I do ?


Free parts send to you in machine warranty period if machine have any problem.


C MOQ ?


The minimum order is 1 set machine, if you order more one time, the price will be better.



D How can I buy this machine from you?   ( Very easy and flexible !)



1. Consult us about this product on line or by e-mail.

2. Negotiate and confirm the final price , shipping , payment methods and other terms.

3. Send you the proforma invoice and confirm your order.

4. Make the payment according to the method put on proforma invoice.

5. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

6. Send your order by air or by sea.



E 10 good reasons why you should buy from us?



1. We are a real factory offering products.

2.Free technical business foa many years.

3.Company in busniess for many years.

4.Over 50 countries cuatomers served!

5.Buy direct saving your money!

6.All machine with CE, SO, BV certificate.

7.Machine and spindle warranty 1year.

8.Our enginner can go to your country to provide technical guidance

9.We have phone support in English,if you have any questions,you can call it,

   we can give you a best soultion within 24 hours

10. Fast delivery,save your time.

Thank you for your visiting the product of Remax!

Aim to give the best service to our customer ,any question feel free to contact me!



A Guarantee:

12 months for the whole machine.

Within 12 months under normal use and maintenance,

If something is wrong with machine, you will get spare part for free;

Out of 12 months, you will get spare part at cost price.

You will also get technical support and service all the lifetime.



B Technical support:

1.Technical support by phone, email or MSN/Skype 24 HOURS.

2.Friendly English version manual and operation video CD disk.

3.Engineer available to service machinery overseas.



C After sales services:

Normal mashine is properly adjusted before dispatch.

You will be able to use the machine immediately.

You will be able to get free training advice towards our machine in oue factory.

You will also get free suggestion and consulting,technical support and service by

 email/fax/tel and lifetime technical support.
