| Quantity: | |
|---|---|
1530
Remax
8456401000

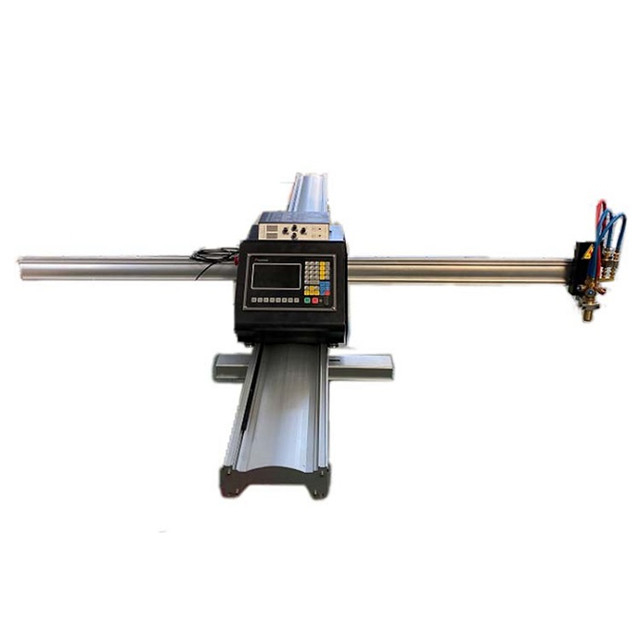

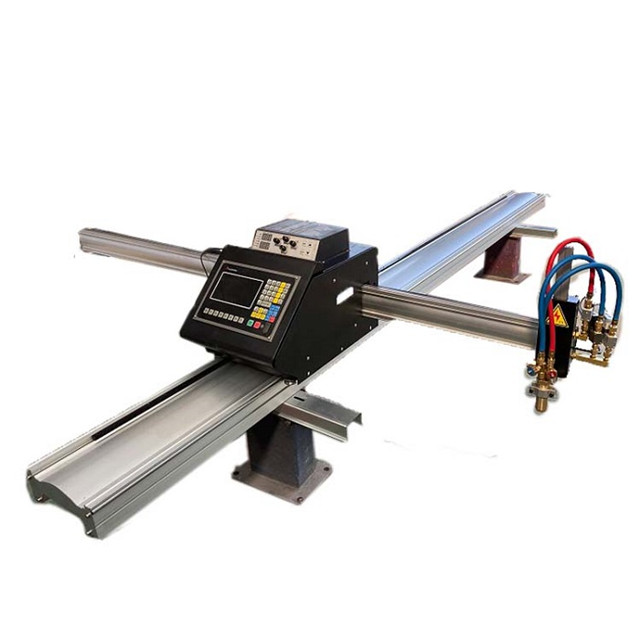

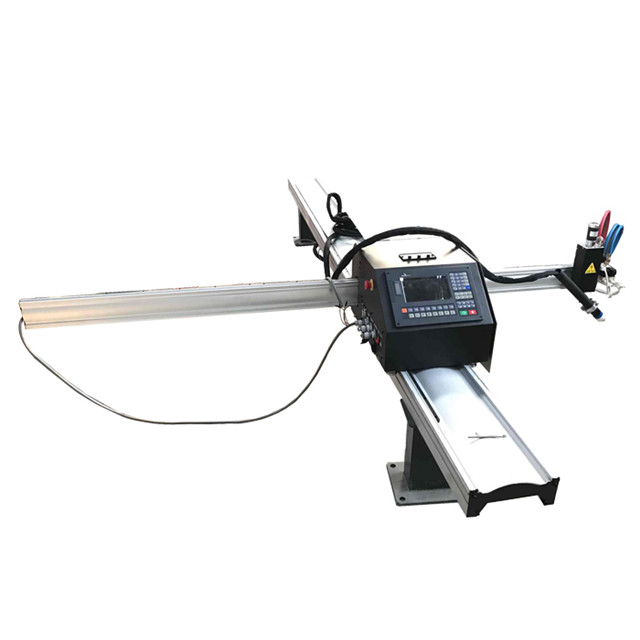

Model | portable cnc plasma cutting machine |
Effective Cutting Width (X axis) | 1500mm |
Effective Cutting Length (Y axis) | 3000mm |
Plasma power | Hypertherm or huayuan |
Drive Mode | Bilateral-side |
CNC system | Beijing START CNC |
Plasma cutting speed | 50-6500 mm/min |
Cutting torch lifting distance | 150mm |
Speed setting error | ≤±5% |
Max Idle running speed | 12000mm/min |

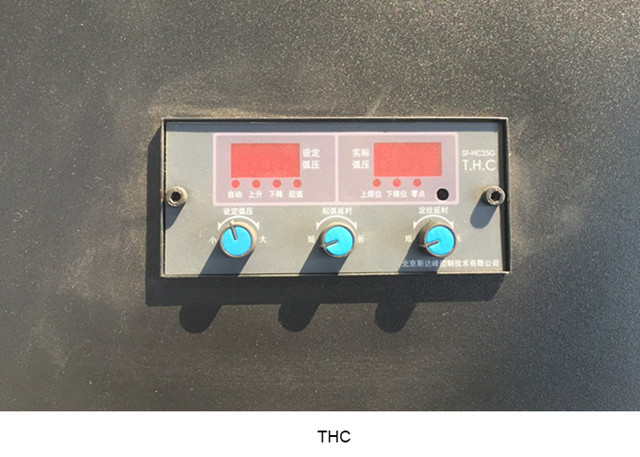

Torch height controller accuracy | ≤±1.0mm |
Longitudinal line accuracy | ±0.2mm/10m |
Motor and driver | stepper motor and driver |
Gearbox | Hubei planet |
Moving Precision | 0.01mm per step |
Power Source | 380V 50/60Hz |
Height controller(plasma) | HYD |
1.Adopt START control ssytem, it can cut arbitray complex planar shape, high efficiency, low cost.
2.the machien can read Auto CAD format file directly and turn into cutting program with humanized human machine interface and powerful automatic programming system with materials software.
3.this machine has special features of compact structure, beautiful style, light weight and convenient movement. it can cut by manual control, and also can cut automatically with stable movement and high cutting accuracy.
4.the machine adopts telescopic boom type structure, X, Y axis both adopt aviation aluminum alloy materials, high accuracy, no deformation and good appearance.
5.standard model: A1525: 1500*2500mm; B 1530: 1500*3000mm; C customised
How can i choose a best suitable machine
1 Tell us the max working area,the material and its thickness you want to cut,we can help choose
the best suitable machine
2.How can i get the machine?
CIF:Almost finish production →order shipment and confirm shipping date→delivery machine to port
of loading→declare at customs→shipping→delivery to port of destination
FOB:Almost Finish production→tell us your shipping agent contacts and confirm shipping date→
delivery machine to port of loading→declare at customs→shipping→delivery to port of destination
DDP:Almost finish production →order shipment and confirm shipping date→delivery machine to
port of loading→declare at customs→shipping→delivery to port of destination-clearance-delivery machine
to your place
Guarantee: 12 months for the whole machine. Within 12 months under normal use and maintenance,any
parts broken regarding quality problem, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime
After sales services:Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately. free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
