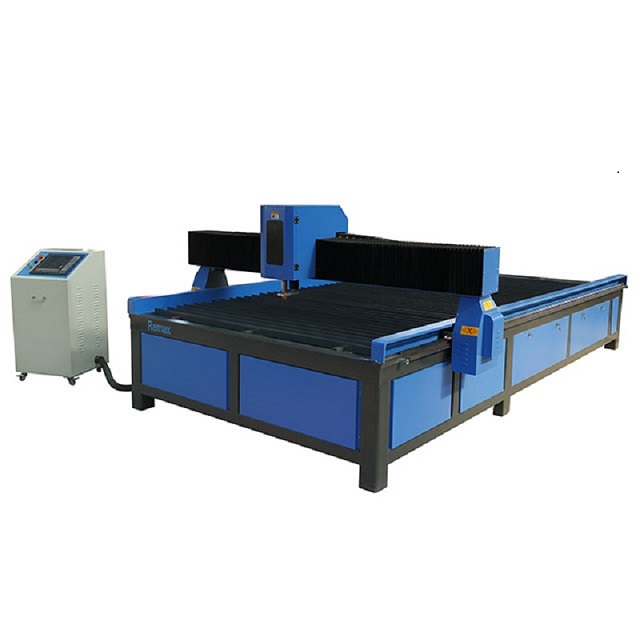

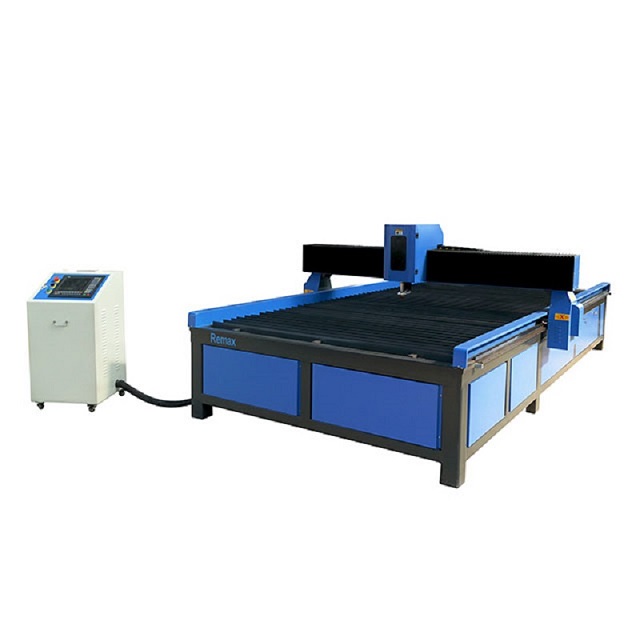

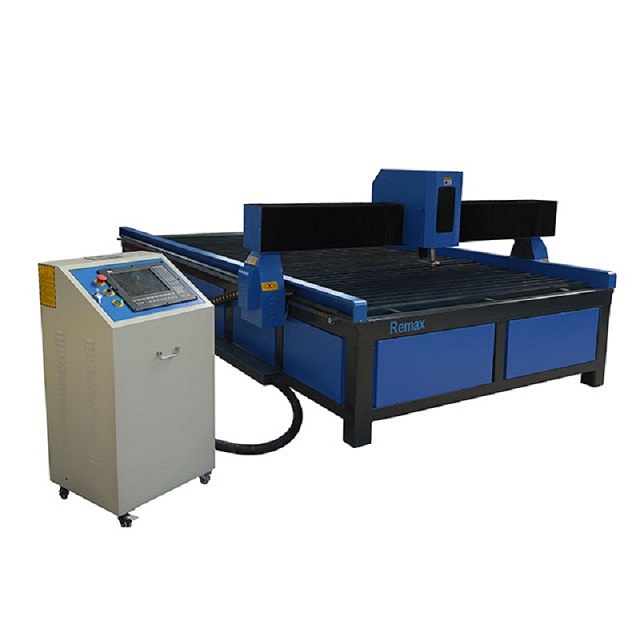

Remax Metal Cutter 2040 Cnc Plasma Cutting Machine for Stainless/carbon Steel

Working Size:
Plasma power:
Cutting thickness:
Power supply:
Cnc control:
Availability:
Quantity:
  • Remax 2040 plasma cutting machine

  • Remax

  • RM-2040P

2040 plasma

Features

1.All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting,to assure          cutting speed and quality.

2.Dual drive , stable performance.

3.The set-up is very simple, all kinds of CAD graphics can be read directly by our system trough U-disk. The           software can be edict graphics automatically.

4.Collocated U-disk interface and cutting code auto converting software for CAD drawing ,CAD drawing can be       input directly into the cutter through U-disk.

5.Tips for each operation is displayed at the screen at any moment ,so operators can use our system without         being trained or reading the instructions.

6.Collocated indicator lights for various hitches.Hitch diagnosing is clear just at a glance and the maintenance is     convenient and quick.

7.There are necessary keys for the movement control in the torch carriage ,so the operator can easily move the     torch to the right spot.

8.With break point or interruption of power ,memory function.


Specifications For Remax-1530 CNC Plasma Cutting Machine


Model

Remax-2040

Effective Cutting Width (X axis)

2000mm

Effective Cutting Length (Y axis)

4000mm

Plasma power

Hypertherm/Huayuan

Electrical components

Schneider

Control system

Beijing STARFIRE

Plasma cutting speed

50-6500 mm/min

Cutting torch lifting distance

150mm

Speed setting error

≤±5%

Max Idle running speed

12000mm/min

Torch height controller accuracy

≤±1.0mm

Longitudinal line accuracy

±0.2mm/10m

Motor and driver

stepper motor and LEADSHINE driver

Gearbox

Hubei planet

Drive Method

Rack and square rails for X  Y Z axis

Moving Precision

0.01mm per step

Power Source

380V 50/60Hz

Height controller(plasma)

HYD Torch height controller for plasma cutting

Plasma cutting thickness

1-50mm


Remax-1530 Plasma Cutter Cut 60 portable cnc plasma cutting machine

Complete machine accuracy

(Subject to the right drawing)

Side length (Four sides)

1000mm x1000mm

Lineation speed,500-800mm/min


length of a side

±0.5mm

Diagonal error |AD-BC|

±0.5mm

Base point return error

±0.2mm

Intersection point error

±0.5mm

Lineation forward- reverse error

±0.2mm


2040plasma..

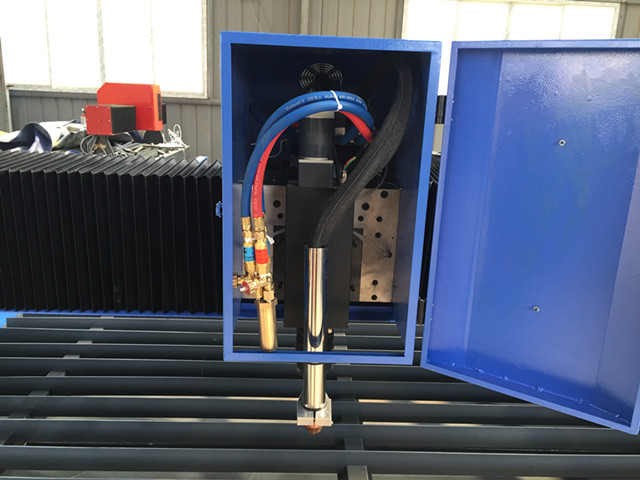

2040plasma part

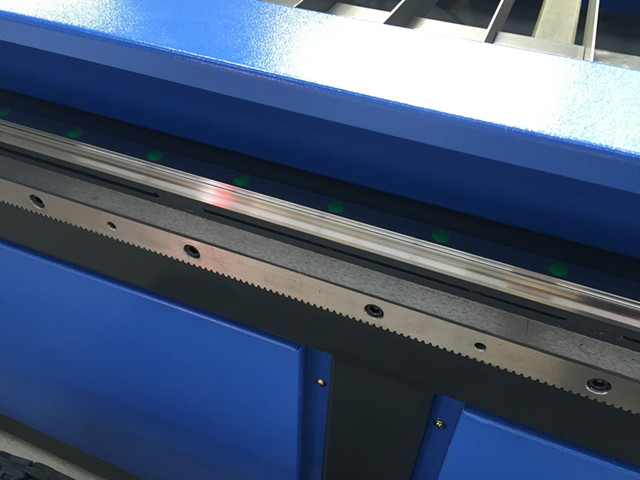

2040plasma

2040 plasma part...

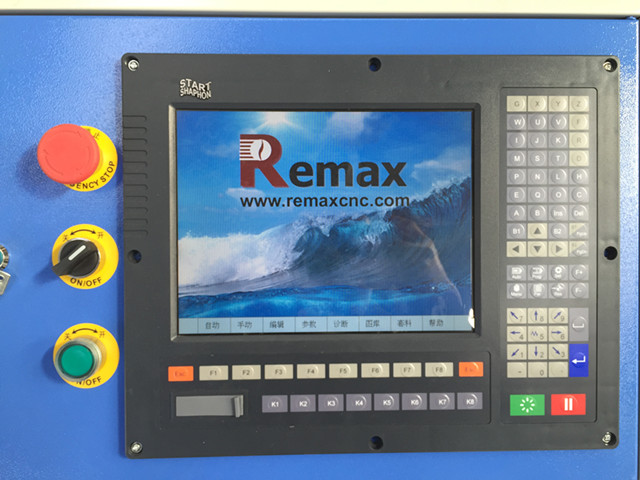

2040 plasma part..

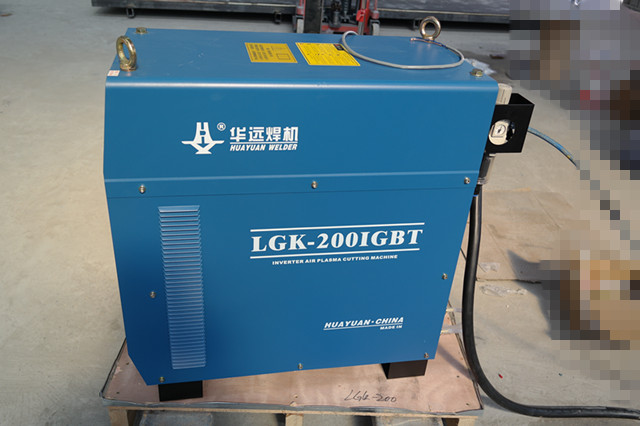

2040 plasma part.

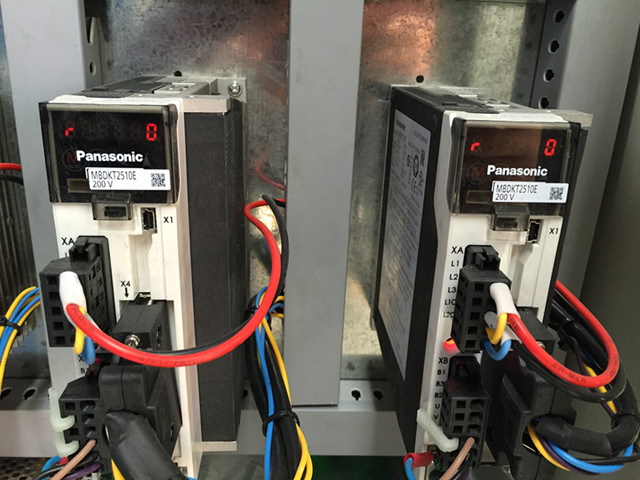

2040 plasma part1







plasma sample.


plasma sample


sample plasma


plasma sample (1)

A This is the first time I use this kind of machine, is it easy to operate?



There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by email / skype/ phone

/trademanager online service at any time.


B If machine have any problem after I receive it, how can I do ?


Free parts send to you in machine warranty period if machine have any problem.


C MOQ ?


The minimum order is 1 set machine, if you order more one time, the price will be better.



D How can I buy this machine from you?   ( Very easy and flexible !)



1. Consult us about this product on line or by e-mail.

2. Negotiate and confirm the final price , shipping , payment methods and other terms.

3. Send you the proforma invoice and confirm your order.

4. Make the payment according to the method put on proforma invoice.

5. We prepare for your order in terms of the proforma invoice after confirming your full payment.

    And 100% quality check before shipping.

6. Send your order by air or by sea.



E 10 good reasons why you should buy from us?



1. We are a real factory offering products.

2.Free technical business foa many years.

3.Company in busniess for many years.

4.Over 50 countries cuatomers served!

5.Buy direct saving your money!

6.All machine with CE, SO, BV certificate.

7.Machine and spindle warranty 1year.

8.Our enginner can go to your country to provide technical guidance

9.We have phone support in English,if you have any questions,you can call it,

we can give you a best soultion within 24 hours

10. Fast delivery,save your time.

Thank you for your visiting the product of Remax!

Aim to give the best service to our customer ,any question feel free to contact me!



A Guarantee:

12 months for the whole machine.

Within 12 months under normal use and maintenance,

If something is wrong with machine, you will get spare part for free;

Out of 12 months, you will get spare part at cost price.

You will also get technical support and service all the lifetime.



B Technical support:

1.Technical support by phone, email or MSN/Skype 24 HOURS.

2.Friendly English version manual and operation video CD disk.

3.Engineer available to service machinery overseas.



C After sales services:

Normal mashine is properly adjusted before dispatch.

You will be able to use the machine immediately.

You will be able to get free training advice towards our machine in oue factory.

You will also get free suggestion and consulting,technical support and service

 by email/fax/tel and lifetime technical support.
