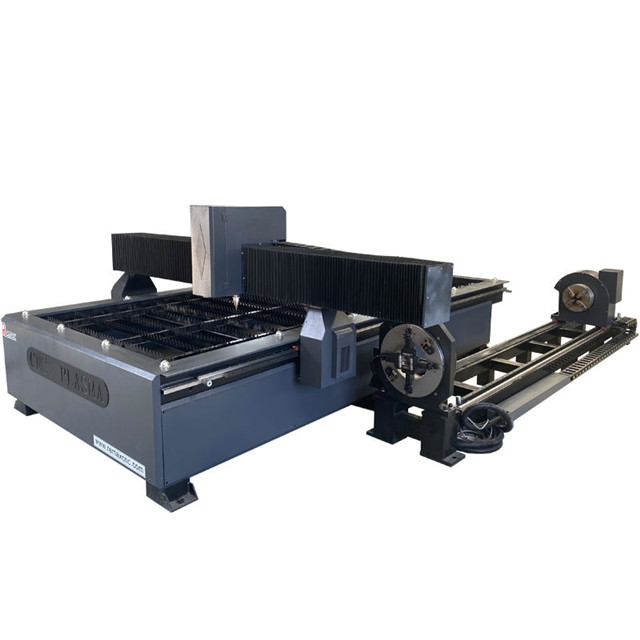

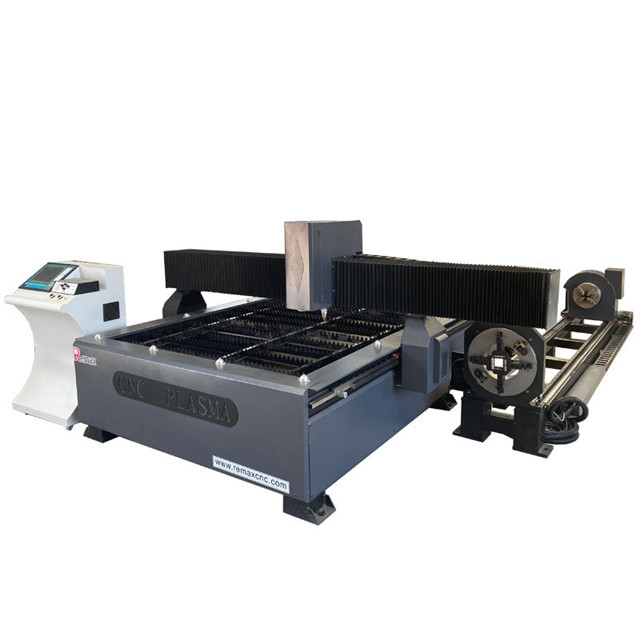

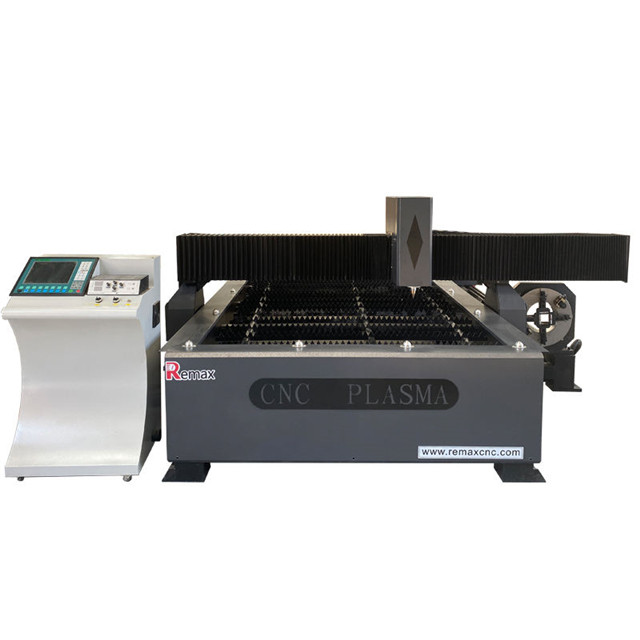

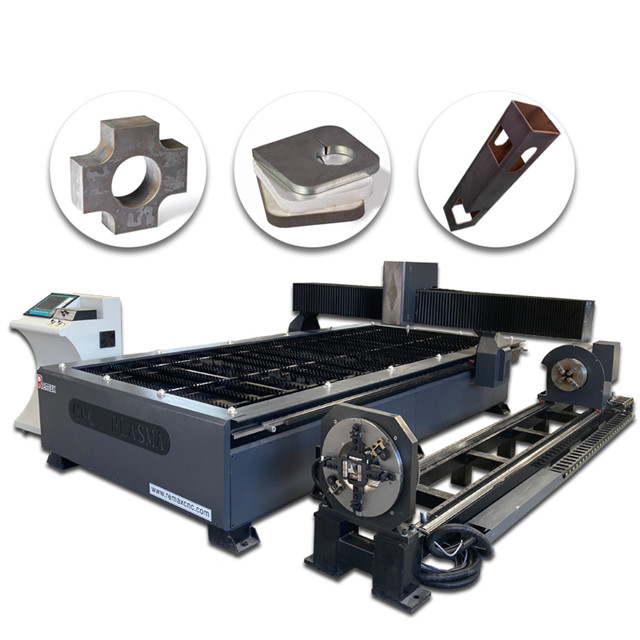

1530 4 axis Cnc Plasma Cutter For Tube

Name: 1530 4 axis Cnc Plasma Cutter For Tube
Brand: Remax
Rating: 5.0 (85 reviews)

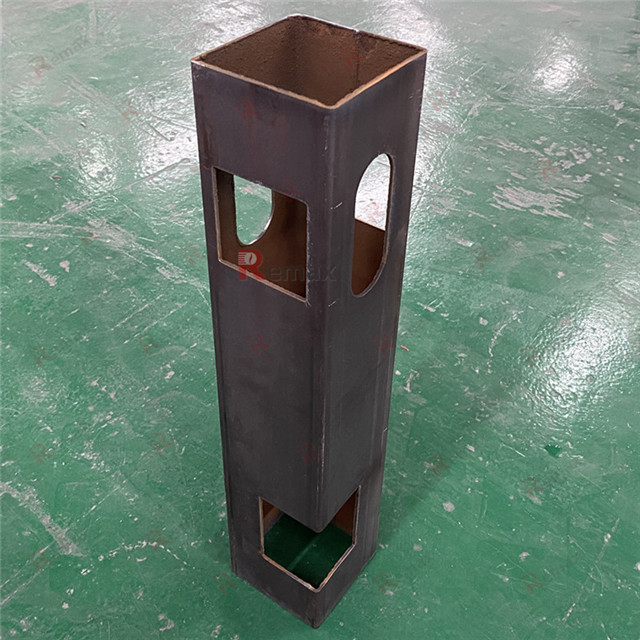

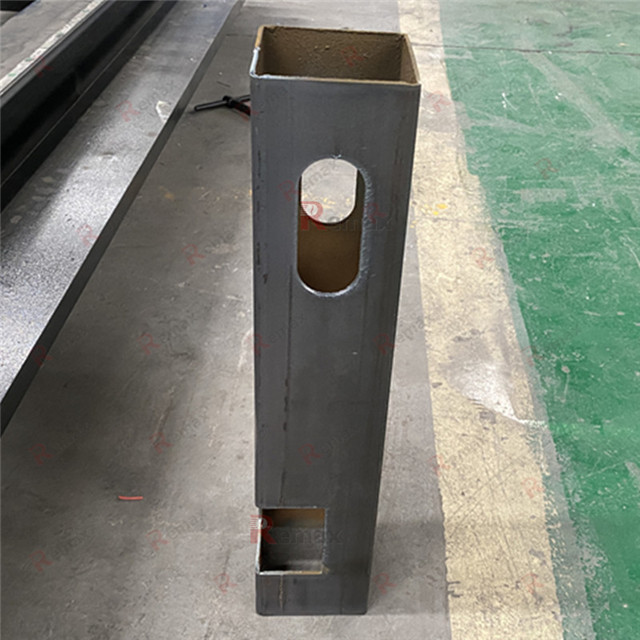

This equipment is widely used in stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanized pipe andother metal pipe cutting.

Availability:

Quantity:



Inquire Add to Basket

Model:
RM-1530 4 axis
Brand:
Remax

Product Description

Features

1. All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric
automatic lifting,to assure cutting speed and quality.
2. Dual drive , stable performance .
3. The set-up is very simple, all kinds of CAD graphics can be read directly by our
system trough U-disk.
The software can be edict graphics automatically.
4. Plate plasma cutting machine Collocated U-disk interface and cutting code auto converting
software for CAD drawing, CAD drawing can be input directly into the cutter through U-disk.

Description		Parameter
Working area		1500*3000mm

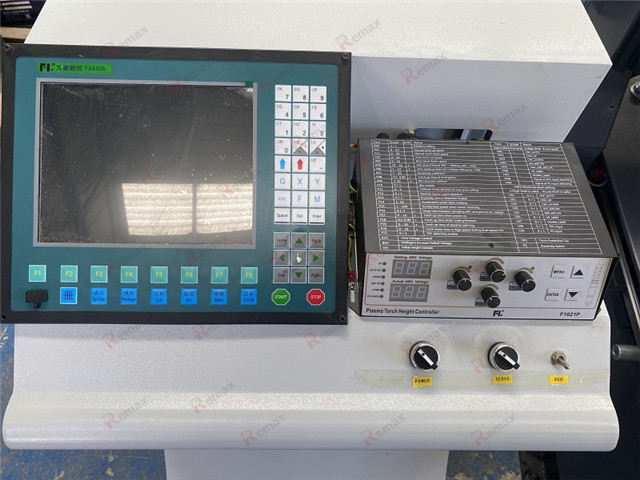

Control system		Flmc control system
Motor		Leadshine stepper motor
Driver		Leadshine
Power supply		China Huayuan 100A (63/120/160/200A for option)
Plasma cutting speed		50-6500mm/min

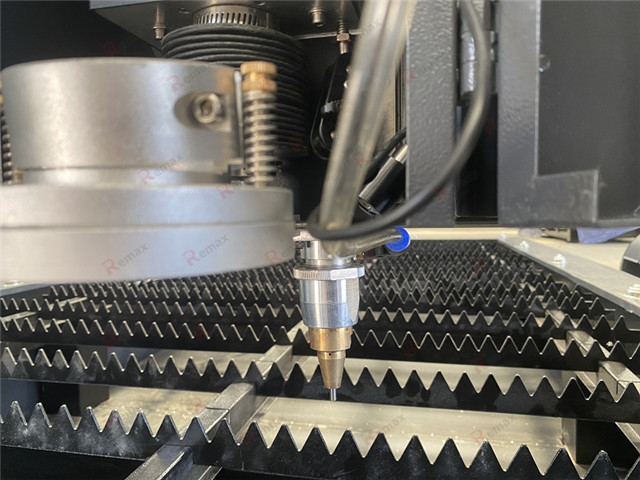

Cutting torch lifting distance		150mm
Power Source		380V
Software		Fastcam
Moving Precision		0.01mm per step
Height controller(plasma)		HYD
