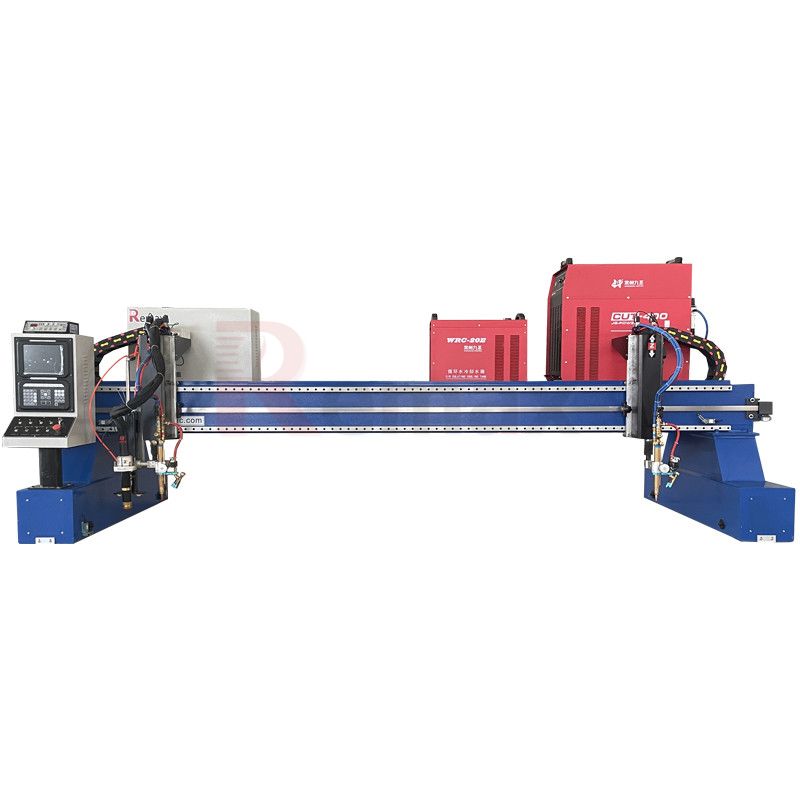

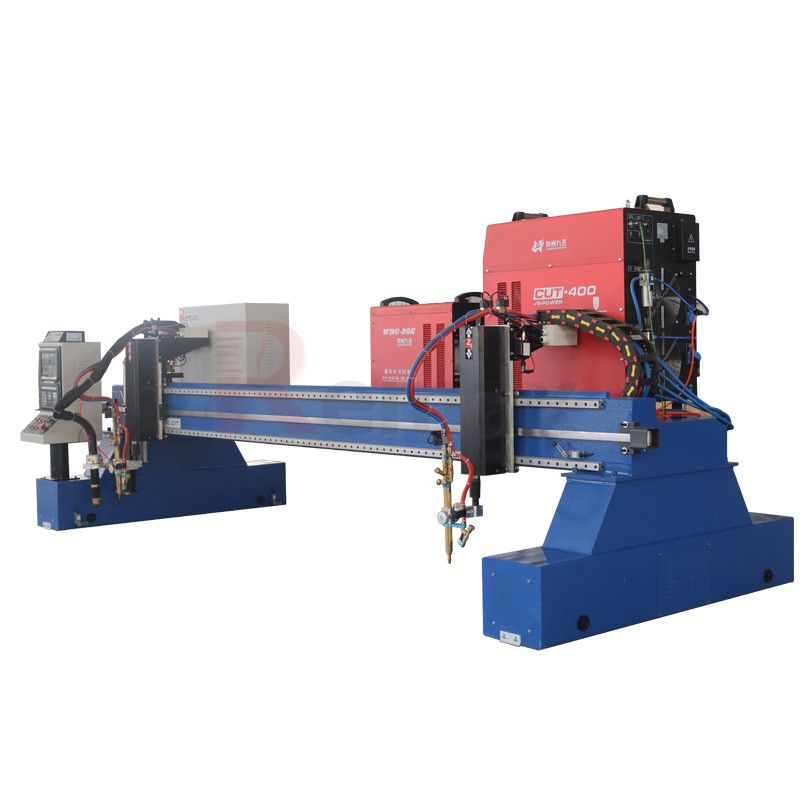

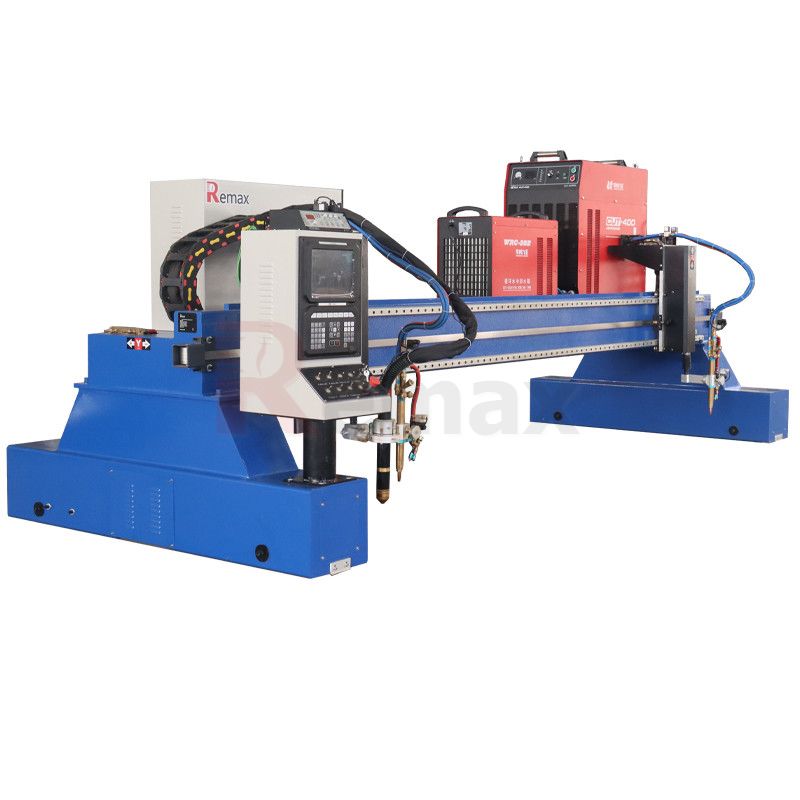

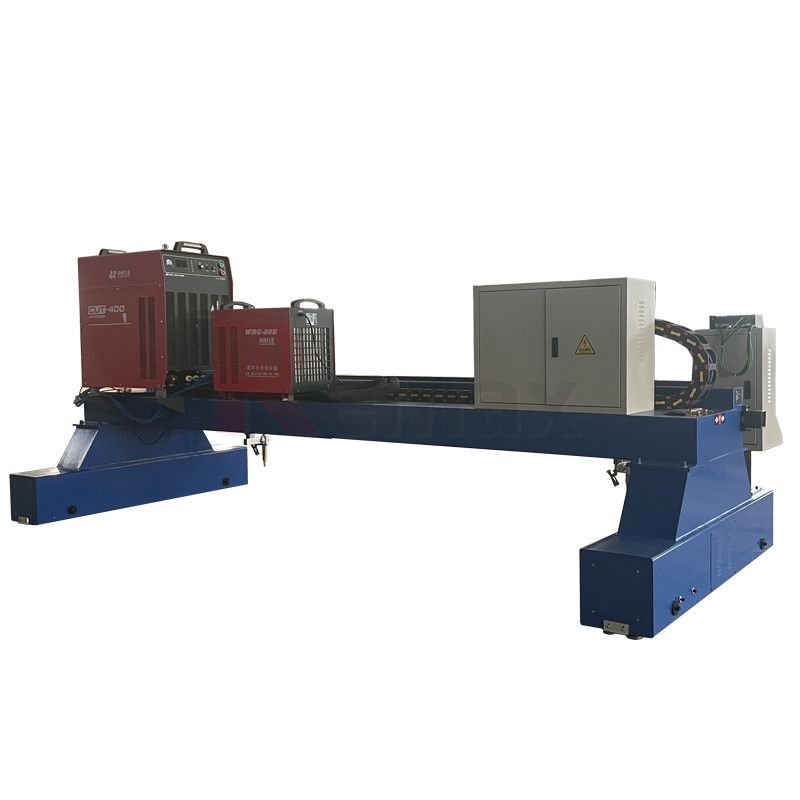

CNC gantry plasma cutting machine
Remax
| Model | CNC gantry plasma cutting machine |
Effective Cutting Width (X axis) | 2M |
| Effective Cutting Length (Y axis) | 6M |
| Plasma power | Hypertherm/Huayuan/Jiusheng |
| Drive Mode | Bilateral-side |
| CNC system | FLMC |
| Plasma cutting speed | 50-6500 mm/min |
| Cutting torch lifting distance | 150mm |
| Speed setting error | ≤±5% |
| Max Idle running speed | 12000mm/min |
| Torch height controller accuracy | ≤±1.0mm |
| Longitudinal line accuracy | ±0.2mm/10m |
| Motor and driver | Stepper motor and Chuangwei driver |
| Gearbox | Hubei planet |
| Drive Method | Rack and square rails for X Y Z axis |
| Moving Precision | 0.01mm per step |
| Plasma source voltage | 3phase 380V |
| Machine voltage | 1phase 220V |
All-welded structure, Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting,to assure cutting speed and quality.
Dual drive , stable performance .
The set-up is very simple, all kinds of CAD graphics can be read directly by our system trough U-disk. The software can be edict graphics auautomatically.
Collocated U-disk interface and cutting code auto converting software for CAD drawing ,CAD drawing can be input directly into the cutter through U-disk.

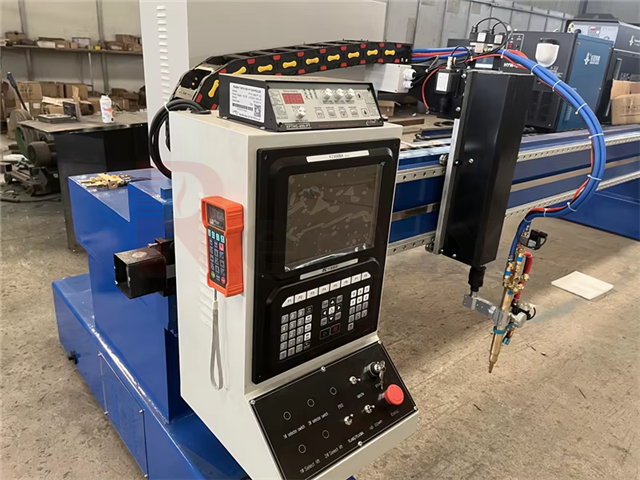

Tips for each operation is displayed at the screen at any moment ,so operators can use our system without being trained or reading the instructions.
Collocated indicator lights for various hitches.Hitch diagnosing is clear just at a glance and the maintenance is convenient and quick.

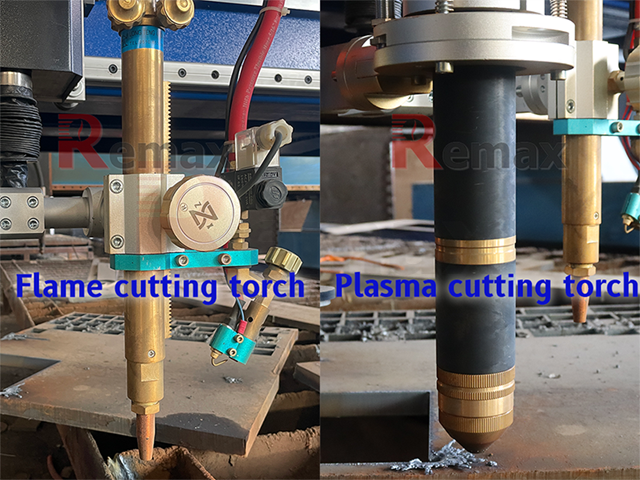

There are necessary keys for the movement control in the torch carriage ,so the operator can easily move the torch to the right spot.
With break point or interruption of power ,memory function.
How can i choose a best suitable machine
1 Tell us the max working area,the material and its thickness you want to cut,we can help choose
the best suitable machine
2.How can i get the machine?
CIF:Almost finish production →order shipment and confirm shipping date→delivery machine to port
of loading→declare at customs→shipping→delivery to port of destination
FOB:Almost Finish production→tell us your shipping agent contacts and confirm shipping date→
delivery machine to port of loading→declare at customs→shipping→delivery to port of destination
DDP:Almost finish production →order shipment and confirm shipping date→delivery machine to
port of loading→declare at customs→shipping→delivery to port of destination-clearance-delivery machine
to your place
Guarantee: 12 months for the whole machine. Within 12 months under normal use and maintenance,any
parts broken regarding quality problem, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime
After sales services:Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately. free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
