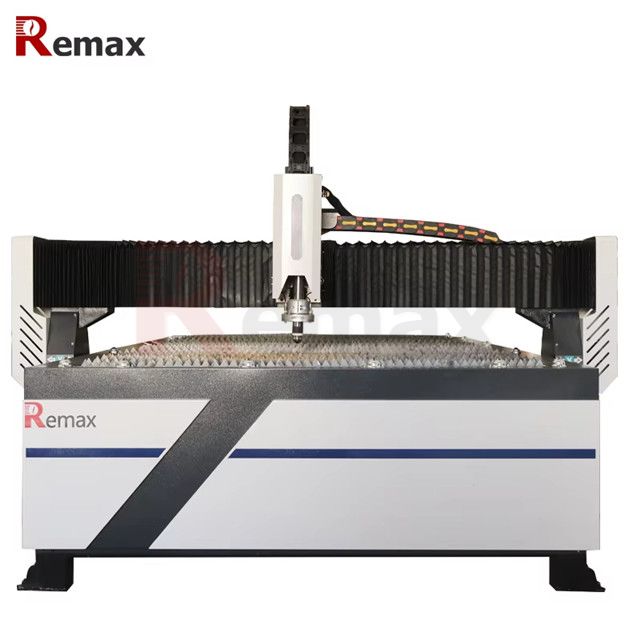

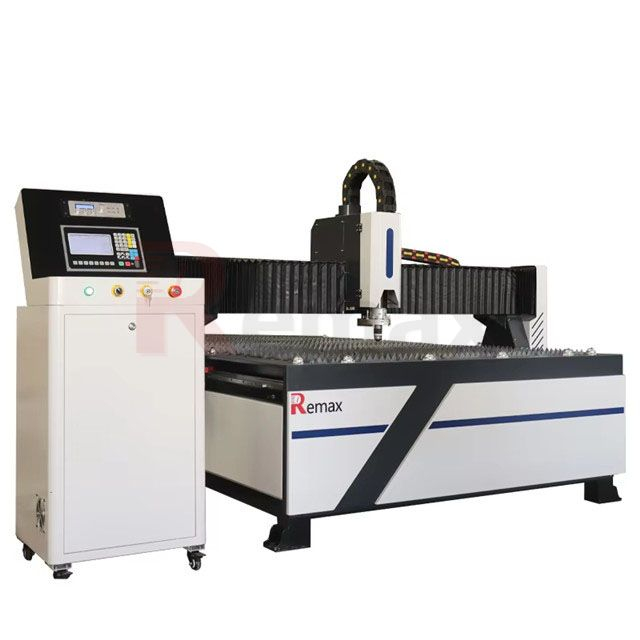

Remax plasma
Remax
1.All-welded structure,Y,X axis with rack and linear guide drive,Z axis with electric automatic lifting,to assure cutting speed and quality.
2.Dual drive, stable performance.
3.The set-up is very simple, all kinds of CAD graphics can be read directly by our system trough U-disk. The software can be edict graphics automatically.
4.Collocated U-disk interface and cutting code auto converting software for CAD drawing ,CAD drawing can be input directly into the cutter through U-disk.
5.Tips for each operation is displayed at the screen at any moment,so operators can use our system without being trained or reading the instructions.

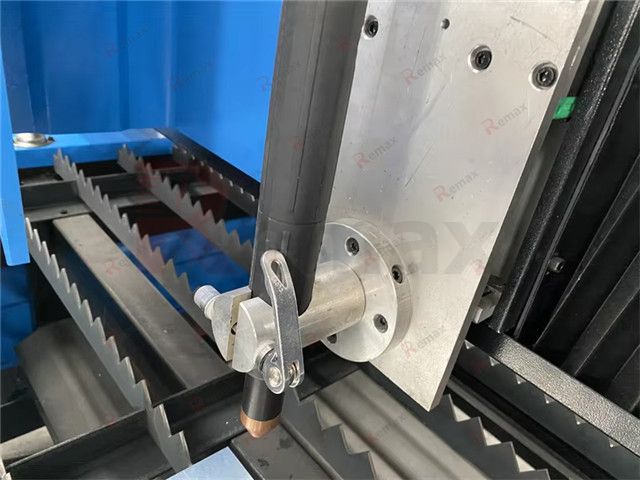

6.There are necessary keys for the movement control in the torch carriage ,so the operator can easily move the torch to the right spot.
7.With break point or interruption of power,memory function.
Product parameter
| Effective cutting width(X axis) | 1500/1300mm |
| Effective cutting width(Y axis) | 3000/2500mm |
| Drive Mode | Bilateral-side |
| CNC system | Starfire |
| Plasma cutting speed | 50-6500mm/min |
| Cutting torch lifting distance | 150mm |
| Max idle running speed | 12000mm/min |

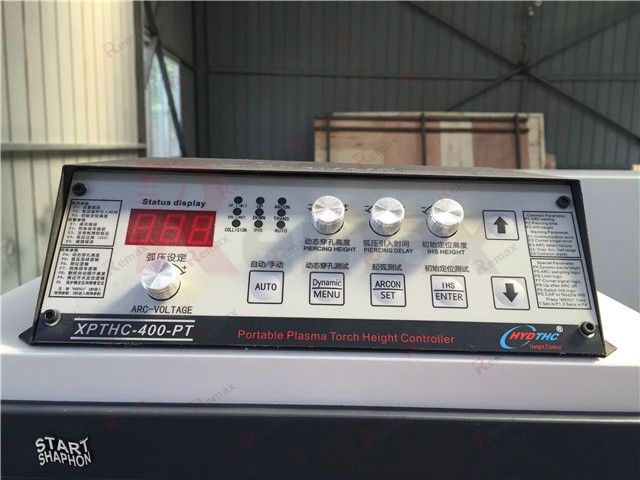

| Torch height controller accuracy | ≤±1.0mm |
| Plasma Cutting Longitudinal line accuracy | ±0.2mm/10m |
| Motor and drvier | Stepper motor and leadshine driver |
| Plasma Cutting Gear box | Hubei planet |
| Drive Method | Rack and square rails for X Y Z axis |
| Moving Precision | 0.01mm per step |
| Machine Voltage | 220V 50/60HZ |
| Power Source | 380V 50/60HZ |

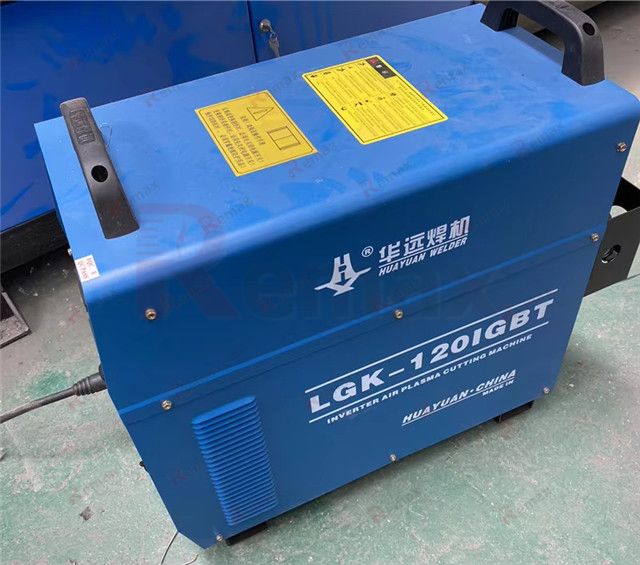

| Power supply | Huayuan/Hypertherm/Jiusheng |
Parts
