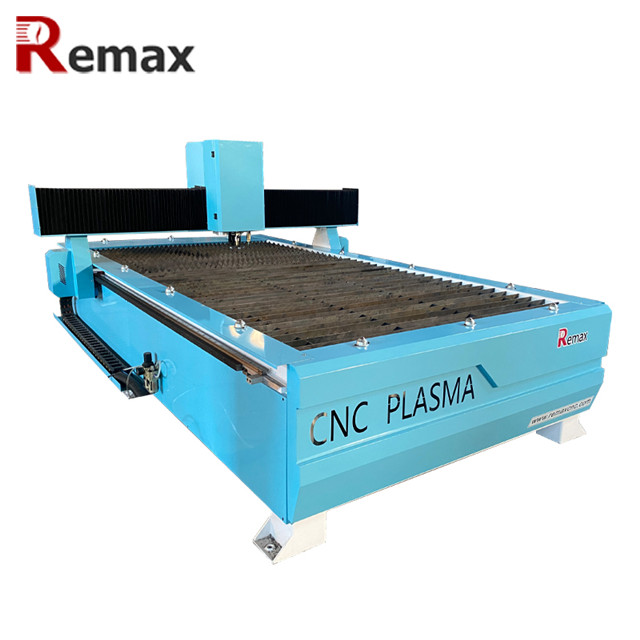

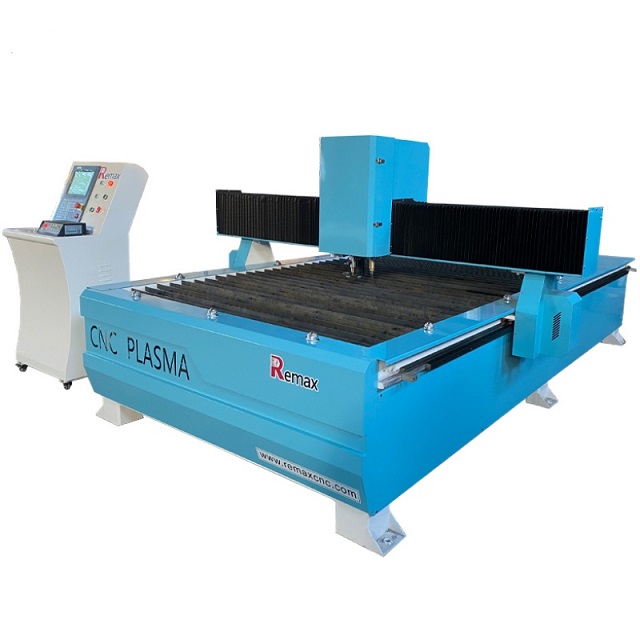

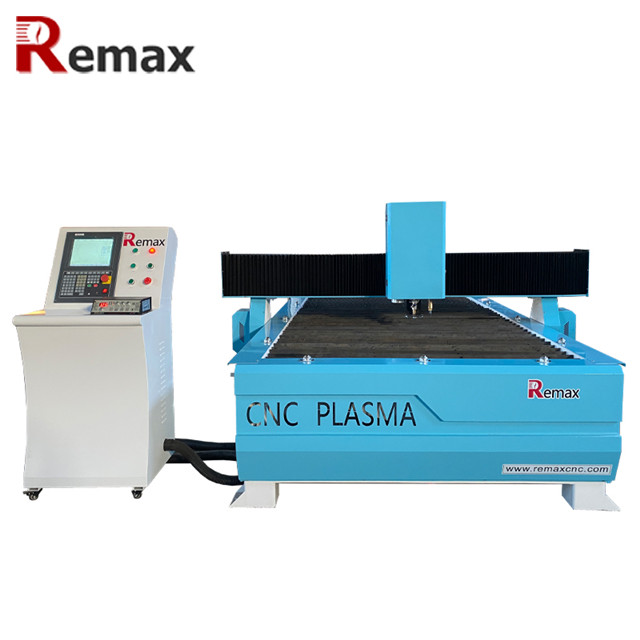

Cnc Plasma Cutting 1530 Carbon Steel Plate Cutters

Name: Cnc Plasma Cutting 1530 Carbon Steel Plate Cutters
Brand: Remax
Rating: 5.0 (39 reviews)

This equipment is widely used in stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanized pipe andother metal pipe cutting.

Availability:

Quantity:



Inquire Add to Basket

Model:
RM-1530
Brand:
Remax

Product Description

This equipment is widely used in stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanized pipe andother metal pipe cutting.

It is widely used in steel plate blanking , chassis cabinet , sheet metal structure, metal processing, electrical switch cabinet production , textile machinery , food mechanization , kitchen utensils , lamps and lanterns , automobiles , metal crafts, saw blades , electrical parts , glasses production , medical instruments , aerospace , hardware , knife measuring tools and other industries.

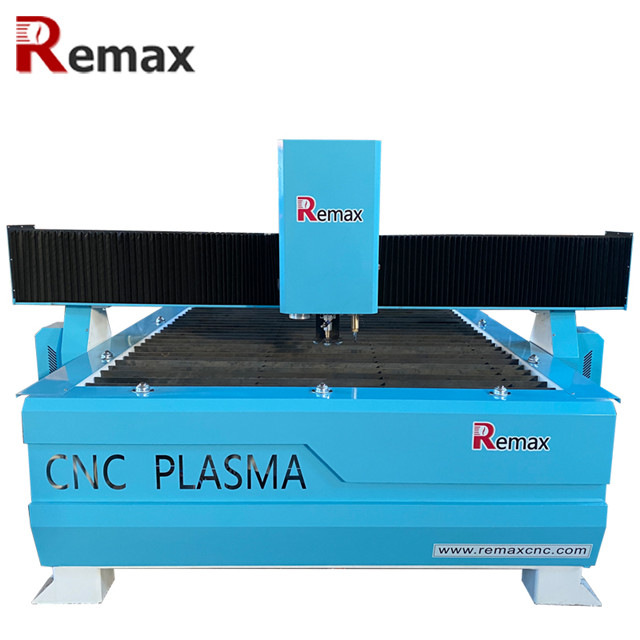

plasma cutting machine (4)

1530 Sheet Metal Plasma Cutter Machine Product parameter:

Effective cutting width(X axis)	1500mm/1300mm
Effective cutting width(Y axis)	3000mm/2500mm
Drive Mode	Bilateral-side
CNC system	Starfire
Plasma cutting speed	50-6500mm/min

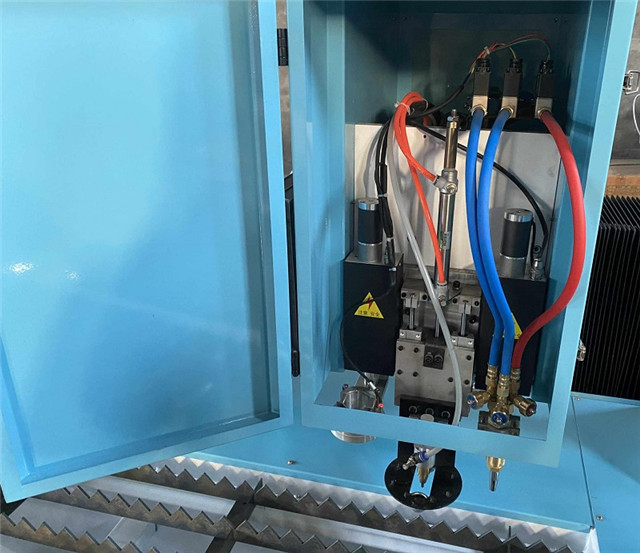

Cutting torch lifting distance	150mm
Max idle running speed	12000mm/min

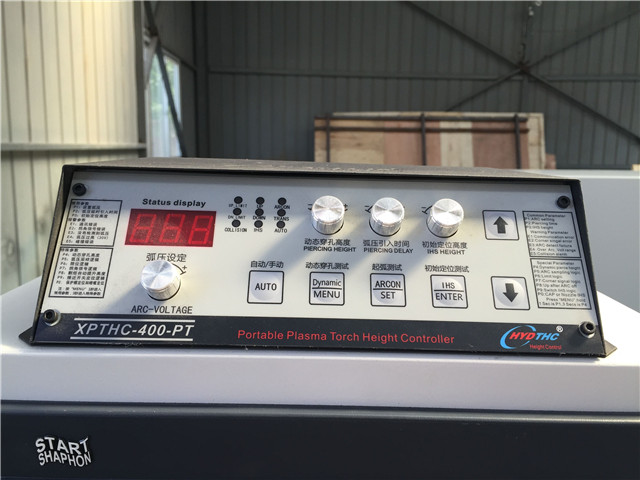

Torch height controller accuracy	≤±1.0mm
Plasma Cutting Longitudinal line accuracy	±0.2mm/10m
Motor and drvier	Stepper motor and leadshine driver
Plasma Cutting Gear box	Hubei planet

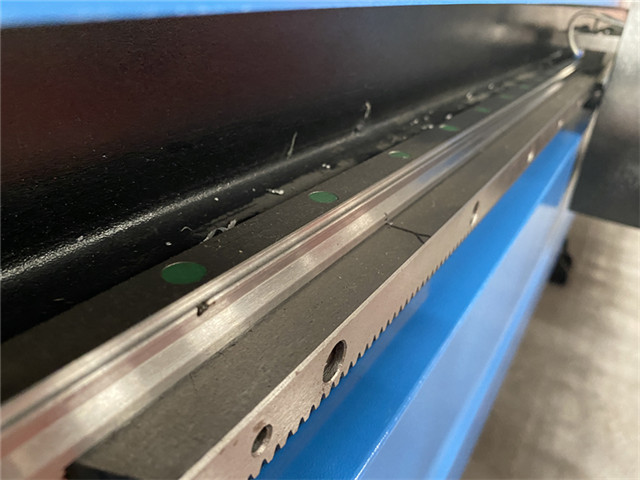

Drive Method	Rack and square rails for X Y Z axis
Moving Precision	0.01mm per step
Machine Voltage	220V 50/60HZ
Power Source	380V 50/60HZ

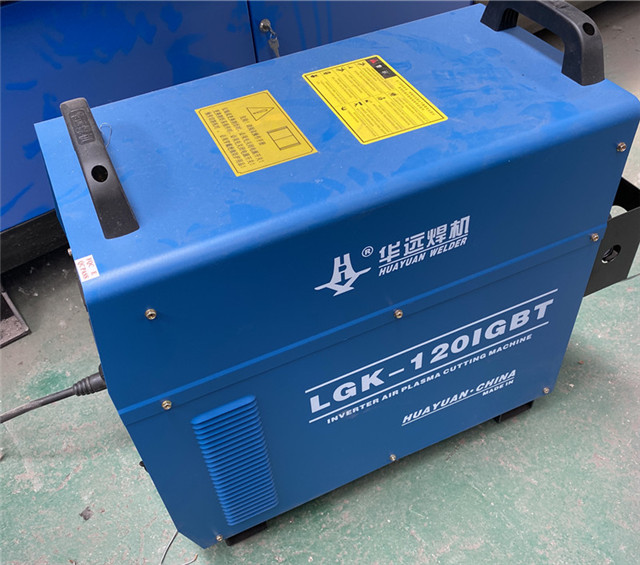

Power supply	Huayuan/Hypertherm/Jiusheng

1530 Sheet Metal Plasma Cutter Machine Part

Using high quality pipe welding, frame structure after professional large military enterprise welding, secondary heat treatment, large processing center precision processing, these design and processing to ensure that the machine parts have excellent shock resistance, high strength and stability.

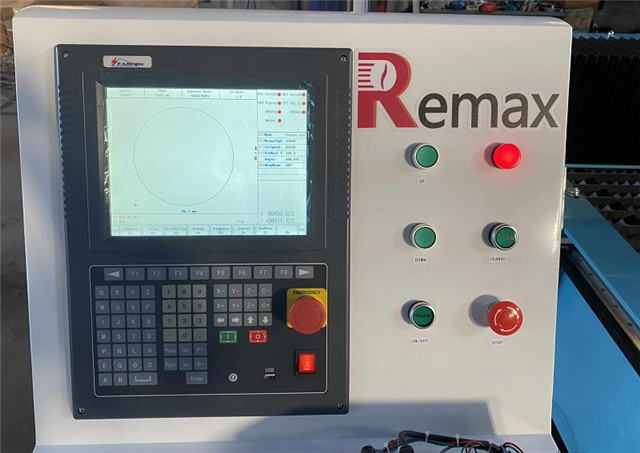

plasma02
