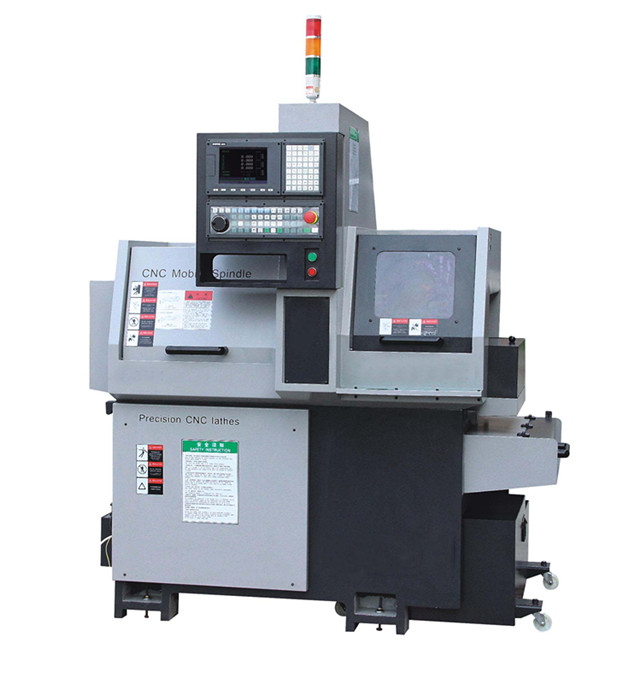

20-III Series machines are the heart of the Swiss go-speed precision CNC lathes, computer belongs take effort type of machine. Class tools for aspect ratio larger "slender shaft" parts and "small" part of high-volume, multi-species, high-precision processing tasks.
| Quantity: | |
|---|---|
20-III
Remax
CNC lathes Features Introduction:
Technological advantages: take only the domestic non-conductive sleeve design, from the Swiss technology, Japanese design, assembly process.
Configure advantages: high-grade core configuration; for example: Japan THK linear guide, screw; Japan NSK P4 grade high precision bearings, Yaskawa servo motors.
Cost advantage: domestic prices, import quality; and reduced foreign investment equivalent product comparison 40% -60%!
Service Advantage: provide one-stop service, turn-key projects.
Machine tool control arrangement using row turret arranged two-axis structure, simple structure, quick tool change, high reliability.
Z-axis machines have a long trip, and travel up to 180mm. So the machine when processing long parts, and compared to similar machines, can significantly reduce the feeding times and improve processing efficiency. For many parts of 180mm in length, you can complete the processing of parts feeding once full length.
The machine is equipped with high-speed precision synchronous guide bush, so you can complete the steel, stainless steel parts of large quantities of precision machining to achieve high-speed cutting of high quality parts.
Drilling machine is equipped with three-axis machining function, you can complete drilling and tapping the shaft parts processing. And for the customer's part, can be equipped with a front and side installation drilling, milling flat processing function modules power tools to complete a variety of precision drill shaft and milling.
Feeding part of the machine can be equipped with automatic feeders, splice portion can install short pieces catcher and long parts catcher, in order to achieve one-person operation, care more than one machine, "a multi-machine" working model for the factory to save human resources, It can also be equipped with automatic conveyor composed of a variety of additional facilities and flexible manufacturing production lines, in order to complete the automated processing.
This machine is best suited for a variety of high-precision machining of aviation, aerospace, defense, automotive, motorcycle, communication, refrigeration, optics, electronics, micro-electronics, electronics, watches and other industries, multi-volume, complex shape of the shaft parts precision complex machining.
Machine parts:
CNC lathes Basic Configuration:
1. The spindle and the guide bush: with synchronous linkage bushings structure, especially for stainless steel processing. Bearings Japan NSK P4 class bevel bearing group, with Austria KLUBER ISOFLEX NUB15 imported spindle grease, make sure that the spindle, the guide sets of high rigidity, high speed and precision.
2. Bed: High intensity secret bake cast iron (HT300), two aging treatment, precision machining machine tools to ensure accuracy.
3. Rail: Japan THK precision linear guide double arrangement, P level (precision) rolling guide, installation preload to achieve zero transmission gap.
The ball screw: Japan THK grinding level precision ball screw, and the motor used in Japan Miki gapless flexible coupling directly connected, high precision, low noise.
5. screw bearings: Japan NSK high-precision ball screw bearings group.

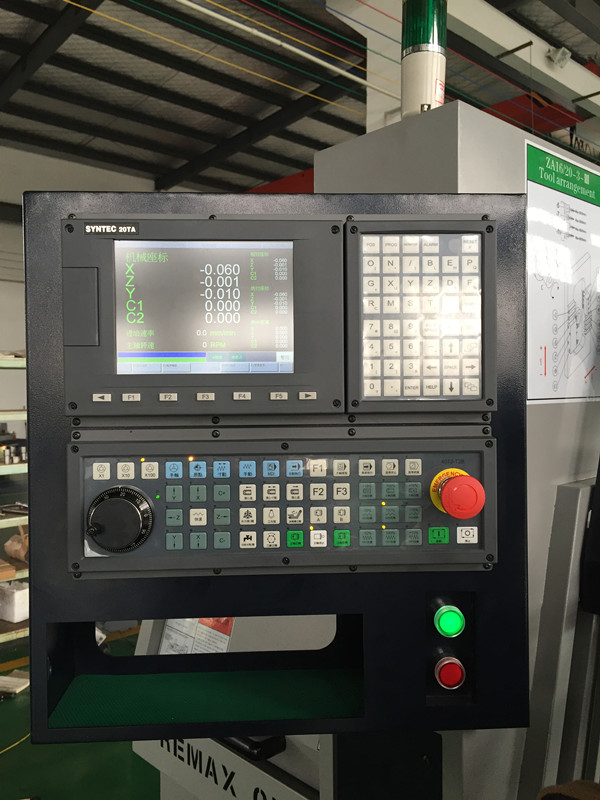

6. Control System: Taiwan's new generation of numerical control system;
7. Splice mobile cylinder with a flow regulator, water separator;

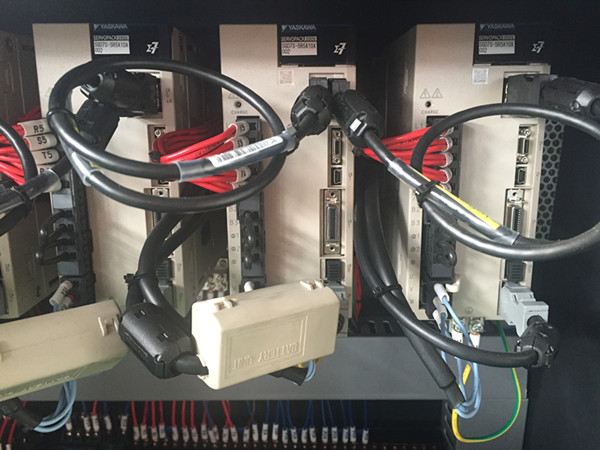

8. The spindle servo motor: Japan Yaskawa;
9. Spindle motor power: Servo 3.7KW.
10. Spindle Controller: Yaskawa
11. contactors, electrical switch: West Germany
12. relay: Omron
12. The limit switch: Japan Omron
13. The pneumatic system: solenoid valve, air source treatment FR.L to AirTAC
14. Cooling system: high volume can be removed from the cooling tank and cooled sufficiently, easy to clean.
To meet a variety of conditions.
15. Chip boxes: large volume chip box can be removed for easy cleaning.
16. Lubrication system: Japanese Valley forced lubrication system, regular meals for screw, rail lubrication, ensure
adequate lubrication rail and screw, prolong life.
17. Protection: Integral Full enclosure, processing zone and the operator is completely isolated to ensure safety of the operator.

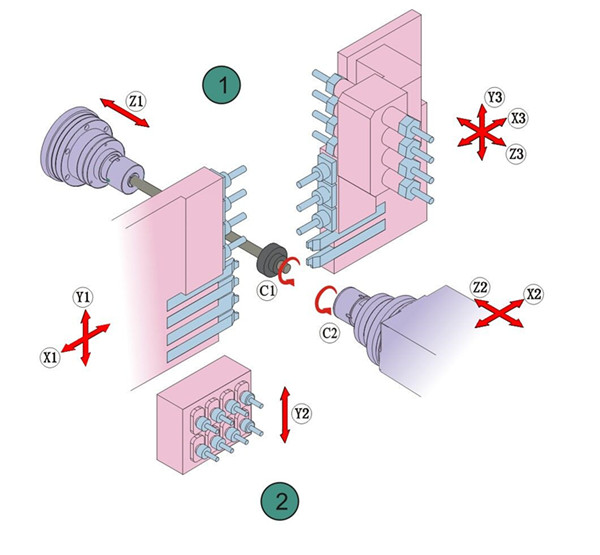

18. Tool arrangement using two-axis control (X, Y) of the row turret structure. Simple structure, quick tool change, high reliability.
19. Turret: 5 double turret, mainly for machining cylindrical shaft, cutting, chamfering, chip convenient, higher processing efficiency.
20. The end face of the non-rotating tool: 4, mainly for face drilling, tapping, boring process,
21. The milling and drilling power head: two ER16 + 2 ER11, high-speed precision bearings P4 level group beveled spindle bearings, the maximum spindle speed 5000rpm / min.
22. Sheet Metal: good Sort by oil and big cutting area.
23. The rotary guide sleeve: Japan NSK P-bearing, so that higher accuracy and longer bearing life;
24. A cooling pipe arrangement 3, each increase in independent control valve;
25. The spindle synchronized rotation has a C-axis function.
CNC lathe Technical parameters:
1) The maximum machining diameter: 20mm
1) Spindle a feed stroke (maximum machining length): 180 mm
2) control axis: 5 axis (X / Y / Z / C / A)
3) The number of axis: 4 axis
4) spindle speed: 0-8000rpm
5) Spindle motor power: 3.7kw
6) Power Tool motor power: 0.75 kw
7) Number cylindrical tools: 5
8) side of the rotary cutter Quantity: 4 (2 ER16 + 2 ER11)
9) the end face of the tool does not rotate Number: 4
10) Fast moving speed: ≤32m / min
11) Minimum setting unit: 0.001mm
12) C-axis minimum scale: 0.001 °
13) Tool cross-section: 12 * 12mm
14) side milling drill chuck: 2 ER11 (≤φ7mm) + 2 ER16 (≤φ10mm)
15) Positive Drill clamp lever: ER11≤φ7mm)
16) color machine color to whichever party offers bed as dark gray, the beige sheet metal.
17) Power Capacity: 5 KVA
18) Machine Gross Weight: 1500Kg
19) Machine Shape: 1900x1570x2040
