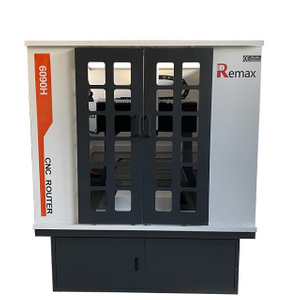

6060 Metal Engraving Machine for Aluminum

Application Materials

Copper, aluminum, steel, iron, stainless steel, aluminum alloy, light alloy, wood, plywood, MDF, PVC board, acrylic, engineering plastics, epoxy resin, ABS, PP, PE, jade, crystal, graphite, bakelite, carbon fiber, stone, foam, and various other metallic and non-metallic materials.

Application Industries

Aerospace: Impellers, engine casings, wing-body structures, landing gear structures, aircraft parts, panel structures, wall panels, slide rails, etc.

Automotive and New Energy: Engine housings, gearbox housings, battery trays, motor housings, automotive wheel hubs, motor end covers, brake discs, steering knuckles, control arms, gears, ratchet wheels, splined shafts, etc.

Mold Industry: Injection molds, stamping molds, die-casting molds, biscuit molds, chocolate molds, food molds, copper motherboards, etc.

Hardware Industry: High-end door locks, hinges, gearbox housings, valve bodies, valves, connectors, fasteners, etc.

Medical devices: implants, surgical instruments, imaging equipment stands, collimators, endoscopic lens barrels, metal-framed lights.

Precision components: watch cases, watch parts, speaker housings, mobile phone housings, mobile phone frames, eyeglass frames, etc.

Parameter

Description	Parameter
X,Y,Z Working Area	600x600x200mm
X,Y,Z  Accuracy	±0.02mm
X,Y,Z Repositioning Accuracy	±0.0254mm
Table Surface	T-slot Table
Frame	Whole machine cast by iron
Transmission	Hiwin square rail and TBI ball screw for 3 axis
Max. Power Consumption	2.5kw~3Kw (without spindle)
Max. Rapid Travel Rate	18m/min
Max. Working Speed	10m/min
Spindle Power	3.2kw water cooling (4.5kw,5.5kw for option)
Spindle Speed	0-24000 rpm/min
Driver and Motor	Delta servo motor and driver
Working Voltage	220/380V    50/60Hz
Command Language	G Code
Operating System	NC Studio (Mach3 and NK280B option)
Computer Interface	USB
Software	Type3 or Artcam
Running Environment  Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Inverter	Delta/Fuling
Electrical components	Schneider
Limit switch	OMRON
Tool sensor and lubrication	With
Rotary axis	Option

Features

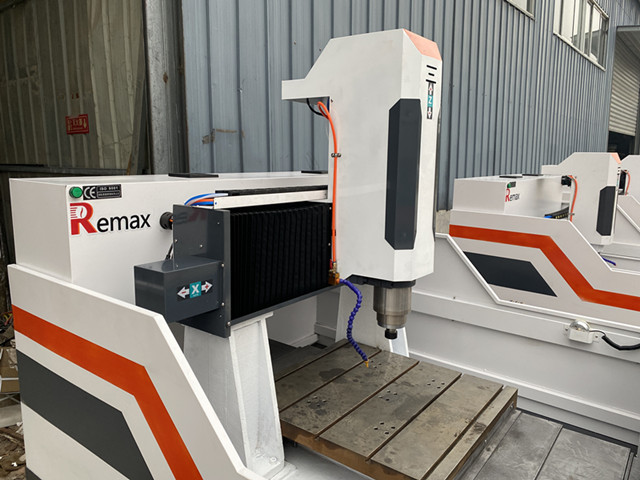

1)Whole machine cast by iron, very strong and never out of shape



2) Schneider electrical parts. Taiwan Delta 750w servo motor and driver, you can choose Japan

    YASKAWA  servo motor and driver for option



3)Taiwan TBI ball screw transmission ensures high accuracy



4)Imported Taiwan square rail ensures high accuracy and heavy workload



5)NC Studio control system, easy cooperation



Machine parts

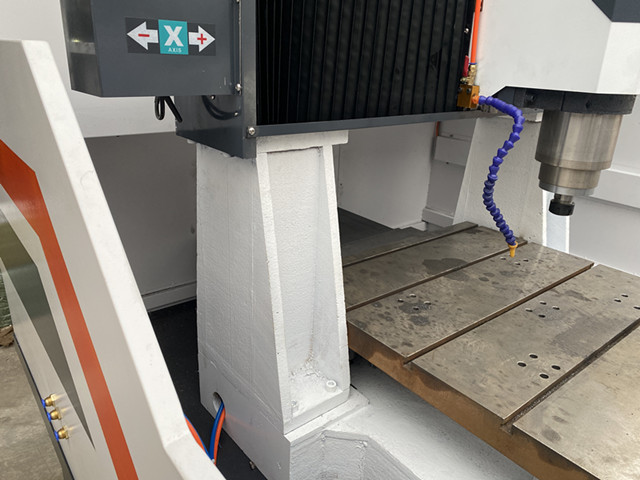

Water Cooling Spindle

High-speed water coolingspindle ensures stabletemperature rise, highaccuracy and long service life.

The Electronics of the CNC Router

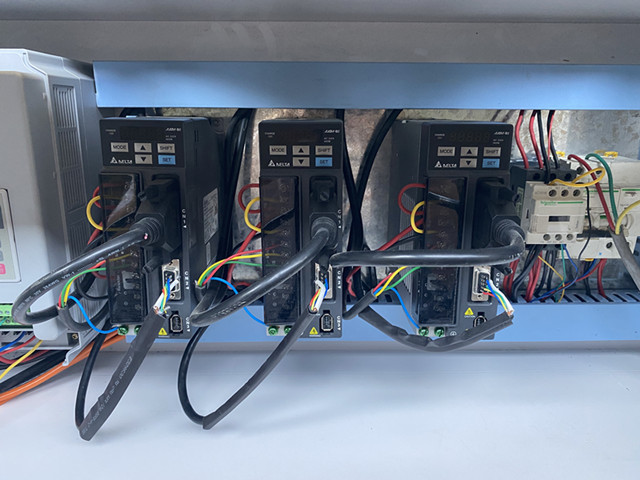

All the electrical components are housed and wired in electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.

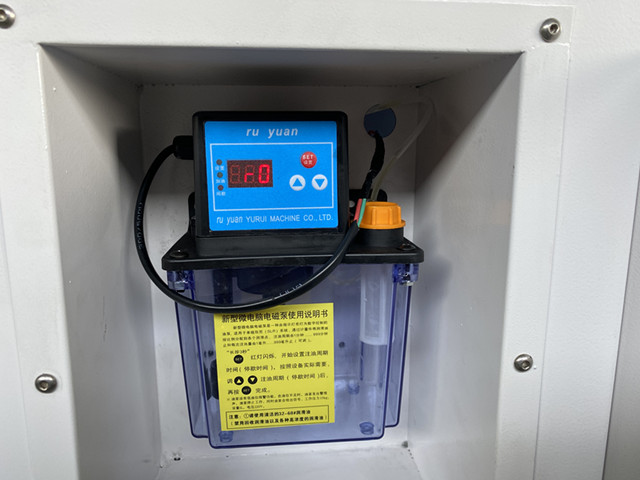

The electric lubricating oil pot can automatically lubricate the machine guide rails and slide blocks, making machine maintenance easier.

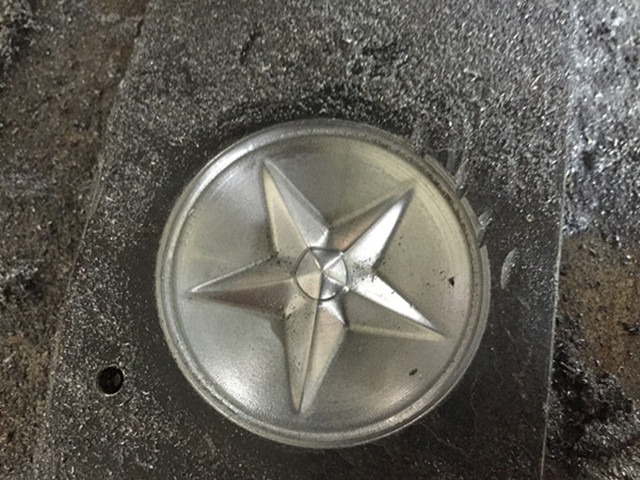

Machine sample
