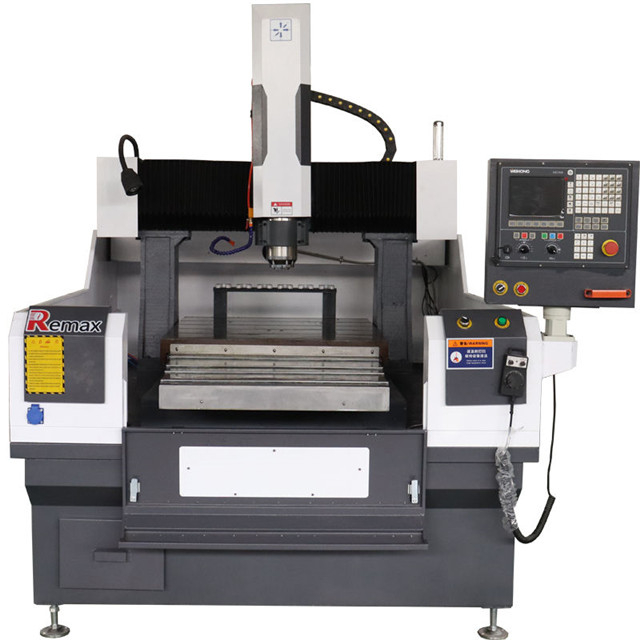

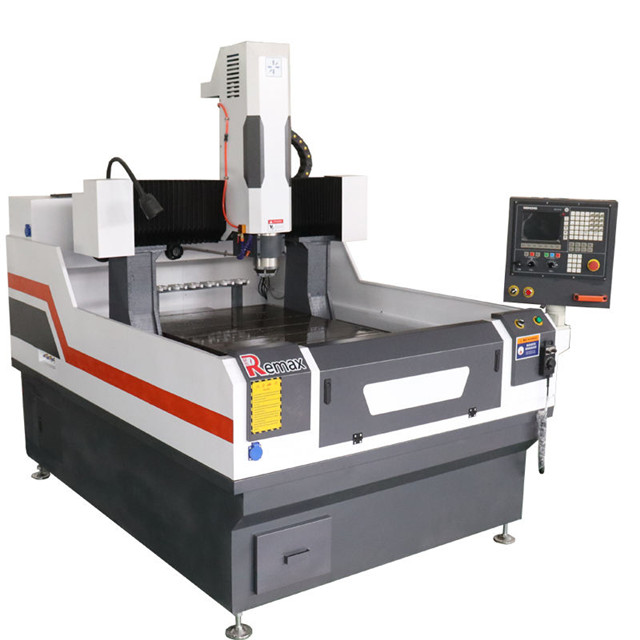

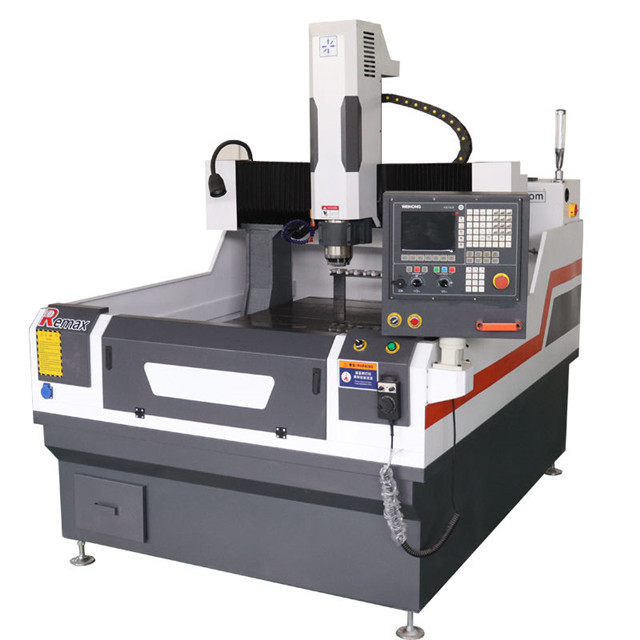

8090 Heavy Duty ATC
Remax
Parameter
| Description | Parameter of cnc milling machine |
| X,Y,Z Working Area | 800*900*400mm |
| X,Y,Z Repositioning Accuracy | 0.02mm |
| Table Surface | T-slot Table |
| Frame | Machine frame cast by iron |
| X, Y,Z Structure | Hiwin Square Rail and TBI Ball Screw |
| Spindle Power | BT30 ER32 5.5kw ATC water cooling spindle |
| Spindle Speed | 0-18000RPM |
| Working Voltage | AC220/380V 50/60Hz |

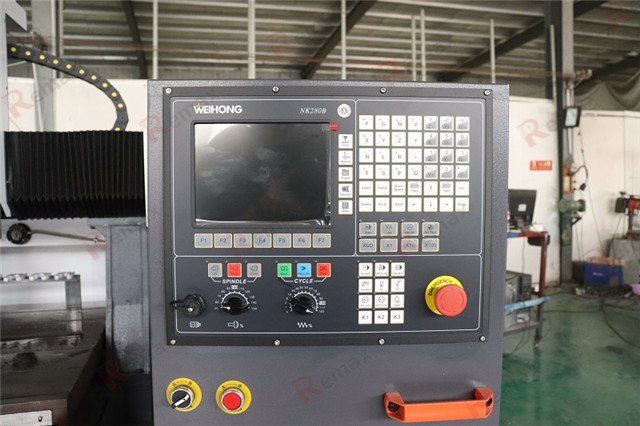

| Control system | NK280B(NK300 for option) |
| Command Language | G Code |
| Inverter | Fuling |
| Electrical components | Schneider |
| Limit switch | OMRON |
| Running Environment Temperature | 0-45 Centigrade |
| Relative Humidity | 30%-75% |
Features
1.This cnc machine mainly used for engraving and cutting aluminum, iron, brass amd steel etc metal materials; it can process non-metal materials also. machine can make metal mold, craft manufacturing, indoor decoration cutting, sign and mark manufacturing, acrylic board processing, metal and PCB drilling.

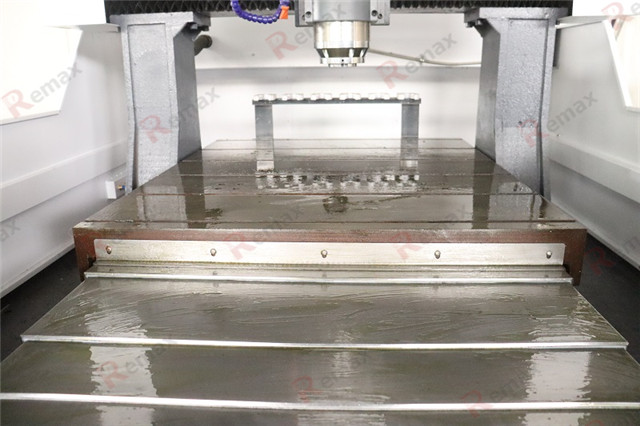

2.Iron T-slot and moving table, ideal for machining metal or wooden molds.

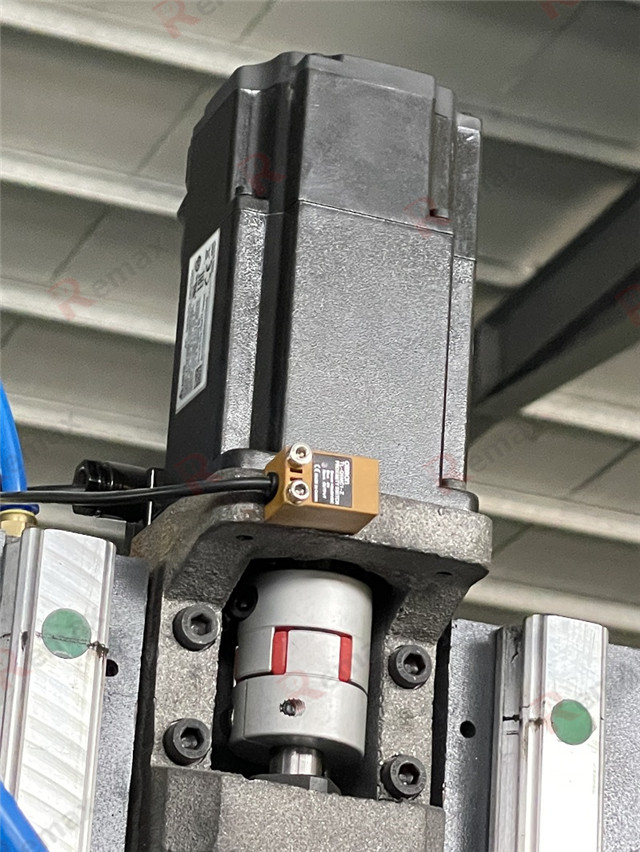

3.X, Y, Zaxis are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity.
4.25mm TBI ball screw transmission improves positioning accuracy and fast speed.

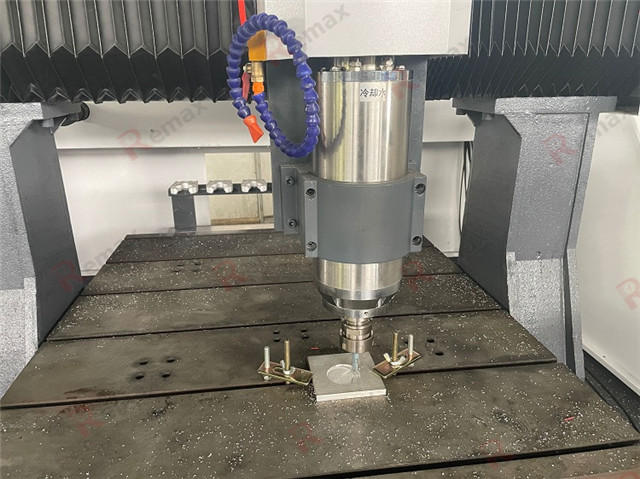

5.Selection of high speed 3.2/5.5kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.

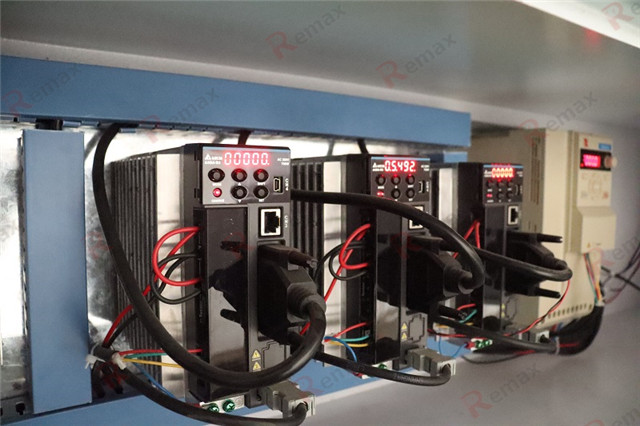

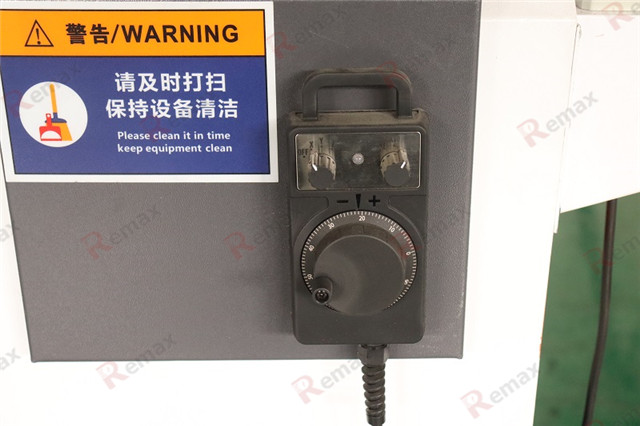

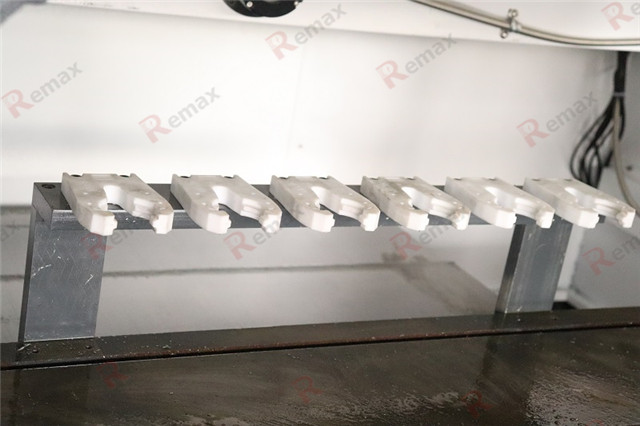

Machine parts
Machine sample
Customer feedback
