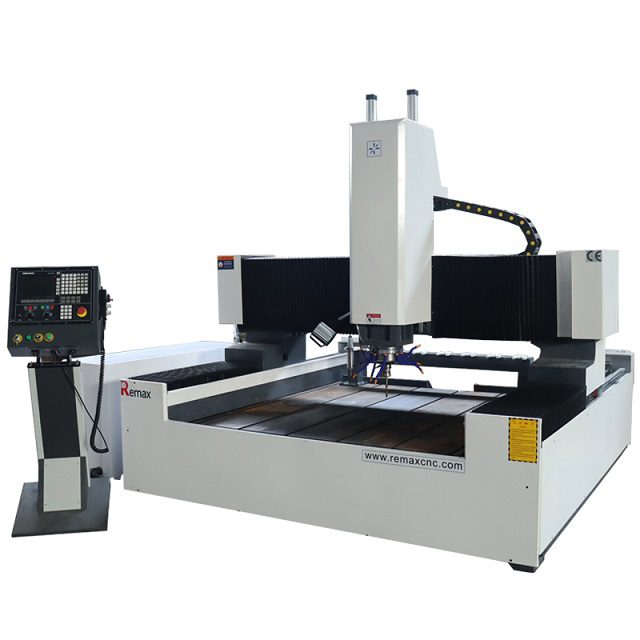

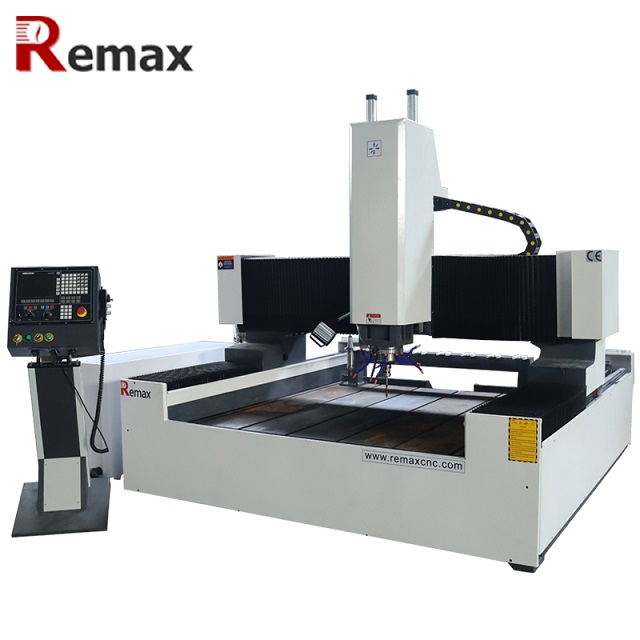

Remax 15kw ATC water cooling spindle 1515 cnc milling machines

Remax 15kw ATC water cooling spindle 1515 cnc milling machines
Availability:
Quantity:
  • 1515

  • Remax

Remax 15kw 1515  ATC cnc milling machines

1515 cnc (3)

6060 Heavy0


Specification

Item
Configuration
Name
Remax 15kw ATC water cooling spindle 1515 cnc milling machines
Working area
1500*1500*400mm
Table
T-Slot working table
Frame
Whole machine structure cast iron
Spindle power
15KW ATC Water Cooling Spindle
Spindle speed
0-12000rpm/min
Control system
NK280B control system with wireless handwheel/Mach3 panel/DSP for option
Motor and Driver
Leadshine 1500W servo motor and driver
Transmission
40mm HIWIN/PMI square rail and TBI ball screw
Inverter
Fuling inverter
Electrical components
Schneider
Limit switch
OMRON
With
Auto tool sensor
With
Lubricationn system,  LED light


Machine parts

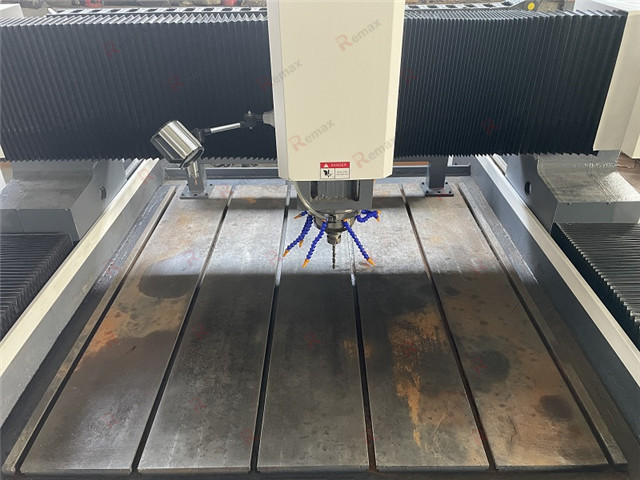

1515 cnc08

1500*1500mm T-Slot cast iron working table

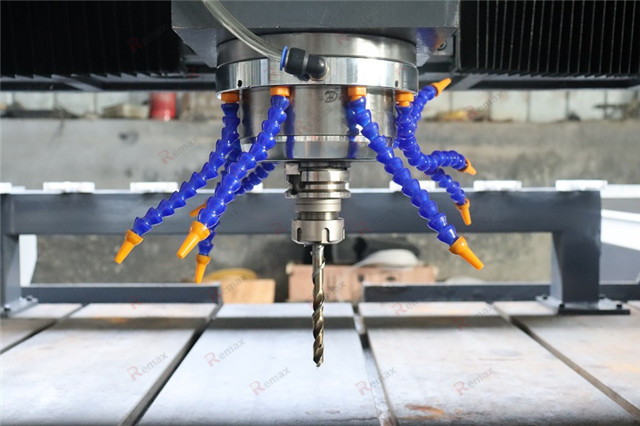

1515 cnc01

15kw atc water cooling spindle

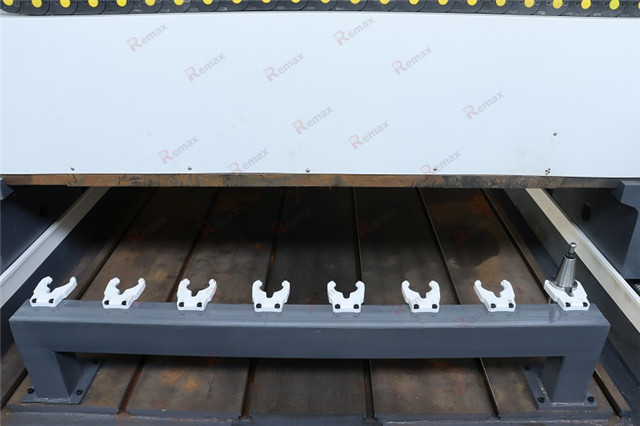

1515 cnc03

Auto tool changer linear type 8 pieces tools

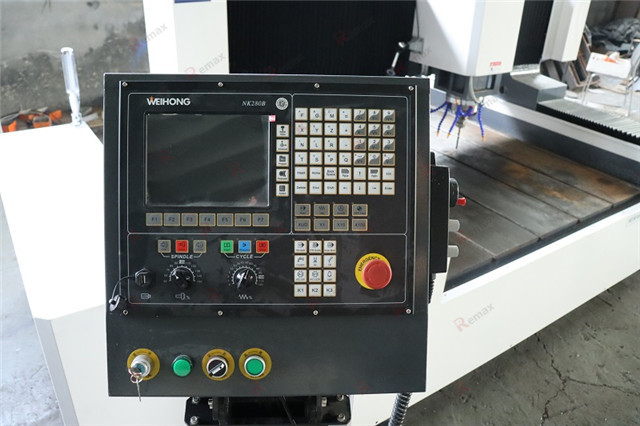

1515 cnc02

NK280B Control system

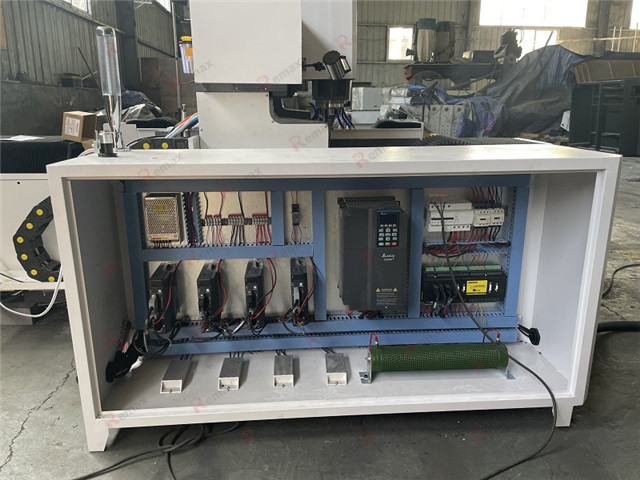

1515 cnc04

Electrical cabinet / Leashine 1500w servo motor and drivers/ Schneider electric parts/  Delta Inverter



Machine Sample


1515 cnc01_副本

sample (2)

metal sample

sample metal (2)




Customer feedback

metal




Company Profile

remax metal factory

cooperation partnersample



FAQ

A This is the first time I use the kind of machine, is it easy to operate?

Yes,We provide English manual or teaching on how to use the machine.

If you still have any questions.please contact us by e-mail/phone/trademanager online service at any time.


 B If the machine has any problem after I receive it ,how can I do?

Free parts send to you in machine warranty period if the machine has any problem.


 C MOQ?

The minimum order is one set machine , if you order more than one set,the price will be better.



 D How can I buy this machine from you ? ( Very easy and flexible! )

  1. Consult us about this product on line.

  2. Negotiate and confirm the final price,shipping,payment methods and other terms.

  3. Send you the proforma invoice and confirm your order.

  4. Make the payment according to the terms of payment on the proforma invoice.

  5. We prepare the terms of the proforma invoice for your order after confirming your full payment.And 100% quality check before shipping. 6.Send your order by air or by sea.



E 10 good reasons why you should buy from us?

  1. We are a real factory offering high quality products.

  2. Free technical business for many years.

  3. Company in business for many years.

  4. Over 50 countries customers served!

  5. Buy directly saving your money!

  6. All machines with CE certificate.

  7. Machines’warranty is 1 year.

  8. Our engineers can go to your country to provide technical guidance.

  9. We have phone support in English.if you have any questions,you can call it.we can give you the best solution within 24 hours.

  10. Fast delivery,save your time.
