8090 Heavy Duty
Remax
Parameter
| Description | Parameter of cnc milling machine |
| X,Y,Z Working Area | 800*900*200/300mm |
| Work Accuracy | 0.02mm |
| Table Surface | Iron T-slot work table |
| Frame | Heavy duty cast iron structure |
| X, Y,Z Structure | Hiwin Square Rail and TBI Ball Screw |
| Spindle Power | 5.5kw water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Working Voltage | AC220/380V,50/60Hz |
| Command Language | G Code |
| Inverter | Fuling |
| Electrical components | Schneider |
| Limit switch | OMRON |
| Running Environment Temperature | 0-45 Centigrade |
| Relative Humidity | 30%-75% |
Features
1.Iron T-slot and moving table, ideal for machining aluminum,iron,brass,steel,and other metal molds.
2.High quality Hiwin guide rail TBI ball screw,smooth movement,to ensure machine high precision.
3.Steel dust proof protect cutting fluid or water and scrap fall on the guide rail and ball screw, make them rusting ,protect the ball screw and guide rail ,make the maintenance operation easily.
4.Selection of high speed 3.2/5.5kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.

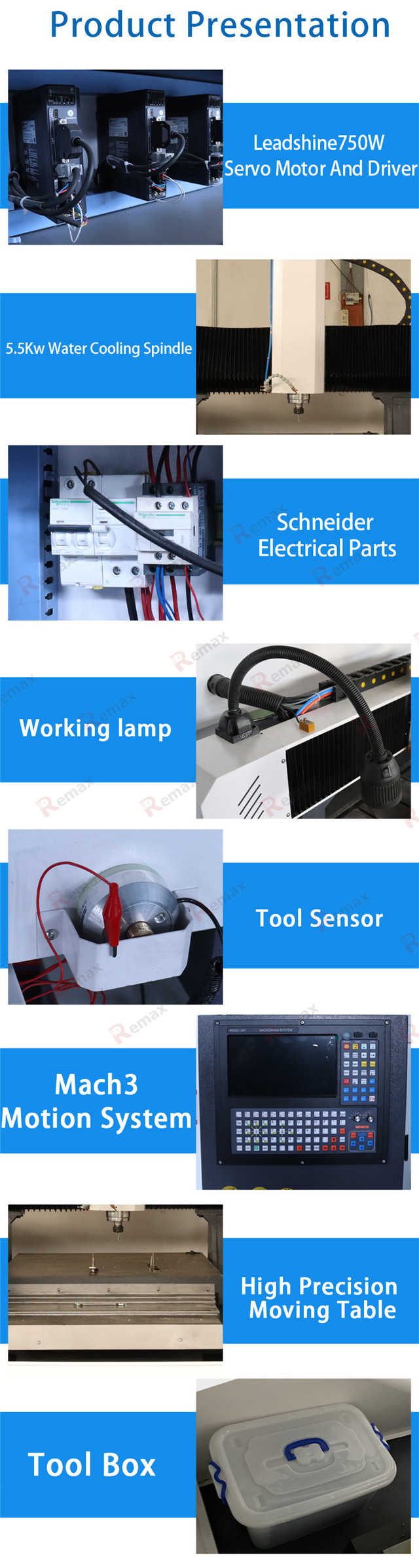

Machine parts
Machine sample
Customer feedback
Company Profile
