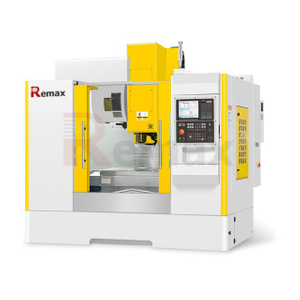

VMC650 ertical CNC Machining Center Milling Drilling Machine

Vertical Metal Milling Machining
Availability:
Quantity:
Inquire Add to Basket

  • VMC650

  • Remax

Product parameter

Description
Parameter
Workbench size
1000×400mm
Maximum allowable load
400kg
T-slot size
3-18-120mm
X axis
650mm
Y axis
400mm
Z axis
550mm
Control system
FANUC
Spindle taper (7:24)
BT40-120
Speed range
8000r/min
Spindle motor power
5.5KW
Tool Magazine Type
Disc Type
Tool Magazine Capacity
16
Tool Change Time
2.5s
Accuracy test standard
JISB6336-4: 2000/ GB/T18400.4-2010
X/Y/Z axis accuracy
0.008mm
X/Y/Z axis repeatability accuracy
0.005mm

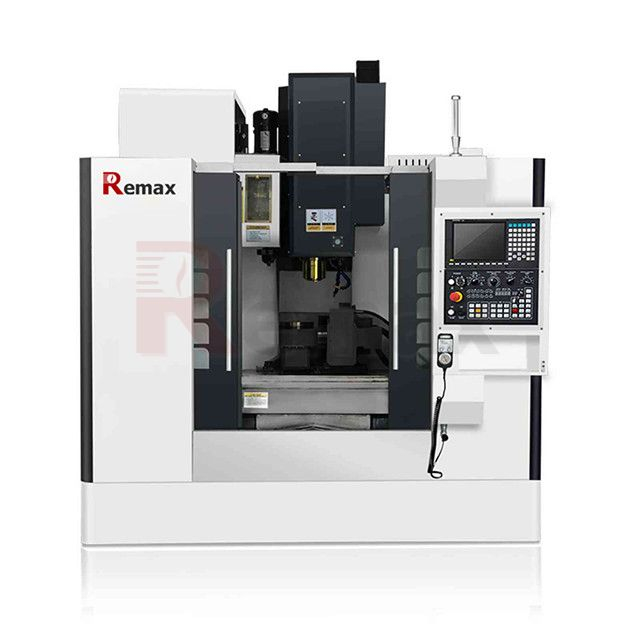

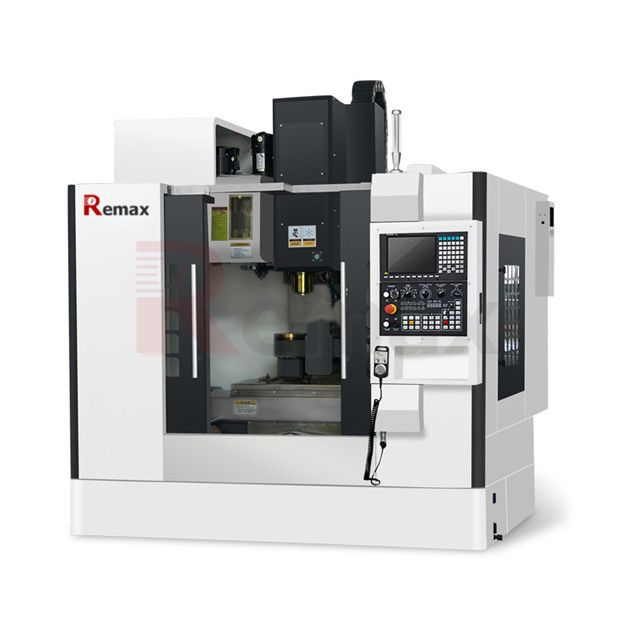

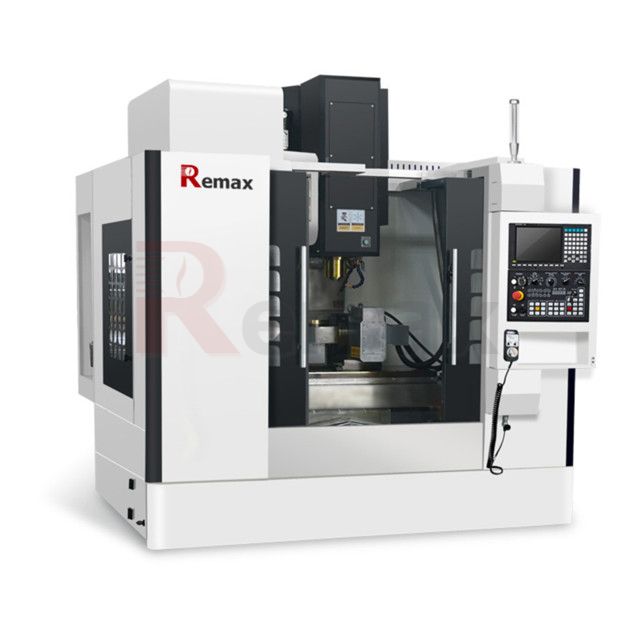

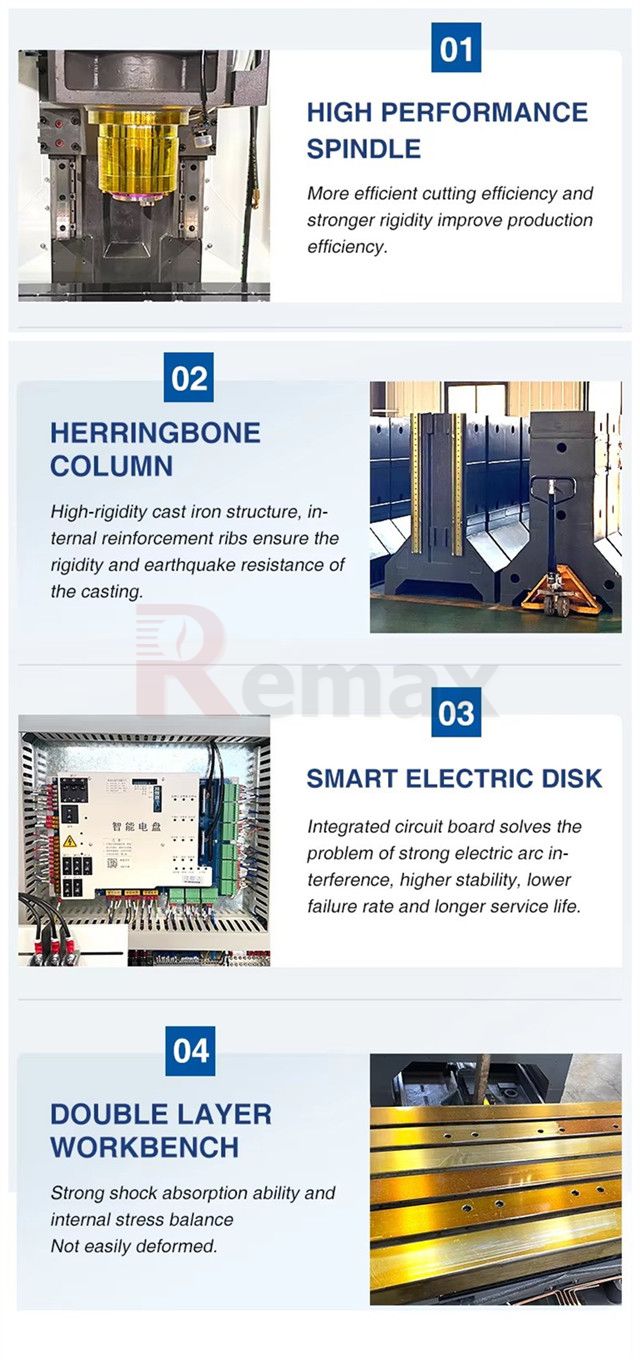

Detailed Photos

vmc02_副本

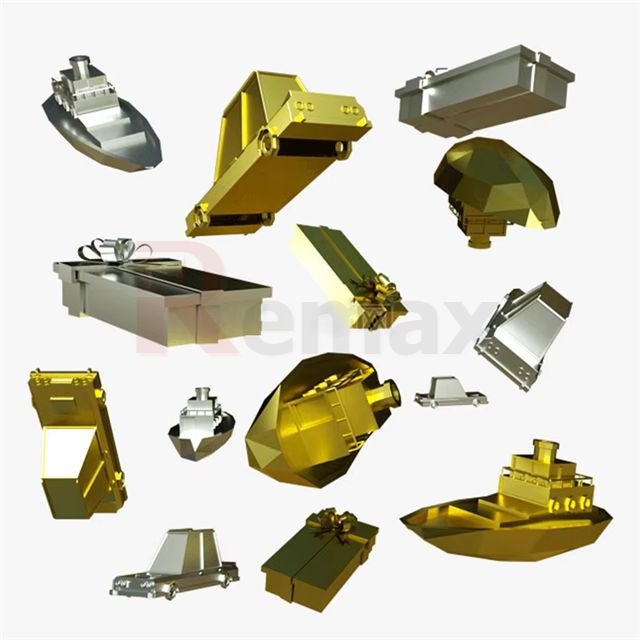

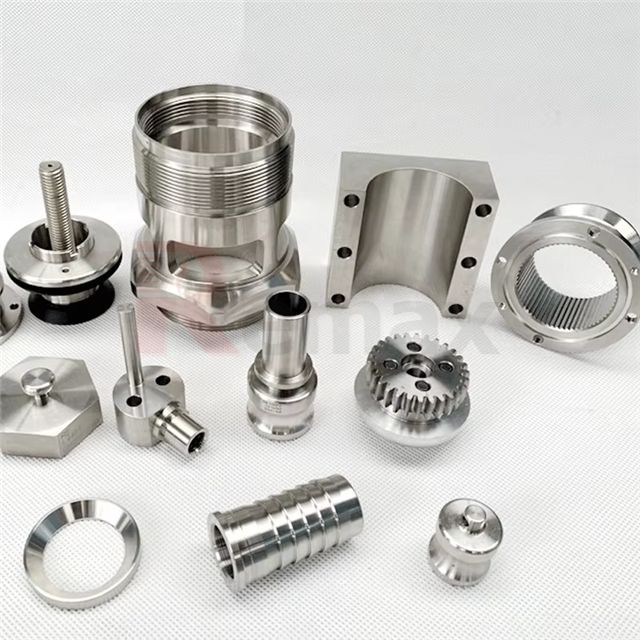

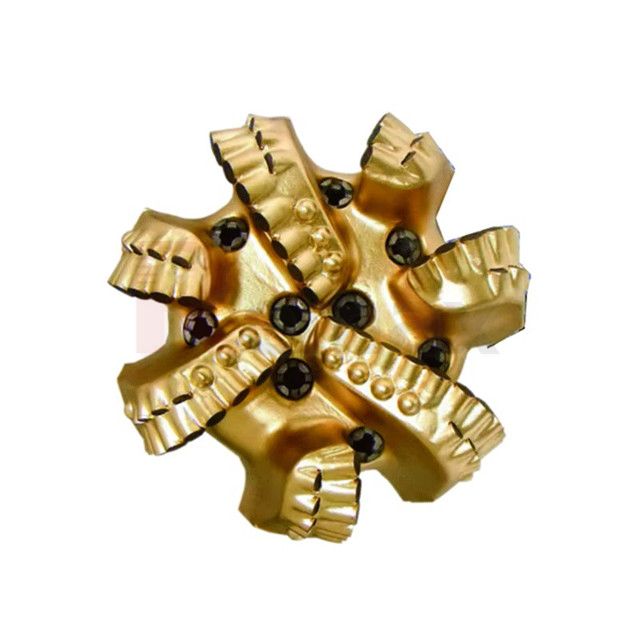

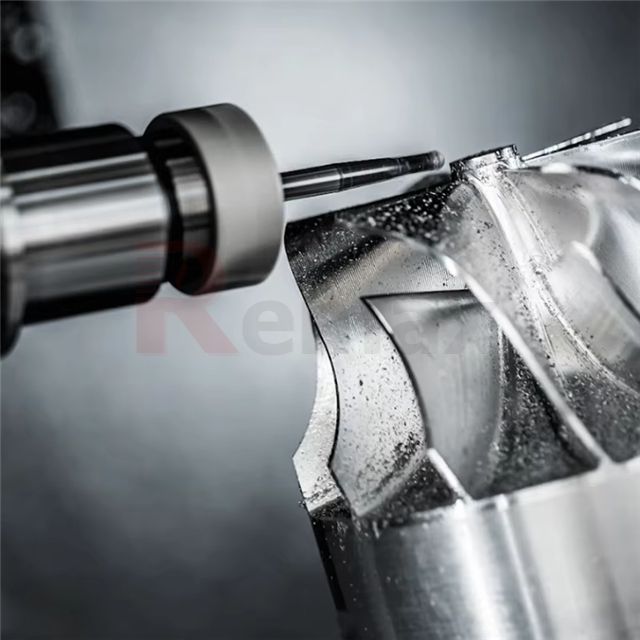

Samples

vmc03vmc04vmc07vmc06vmc08vmc05_副本
