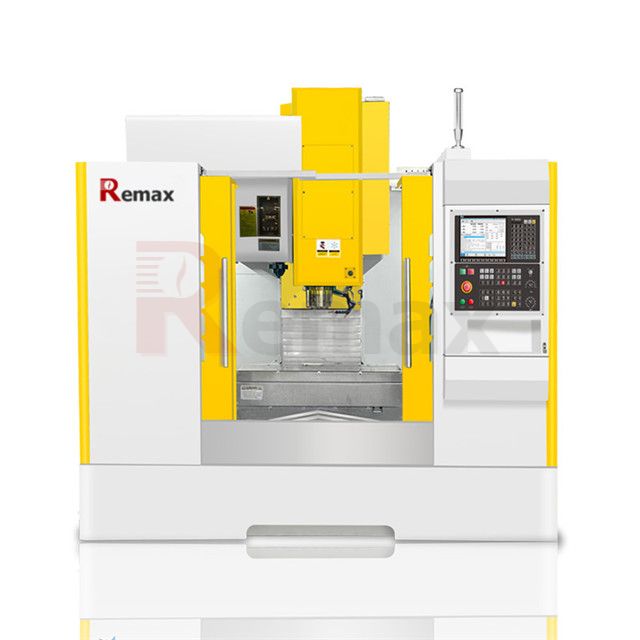

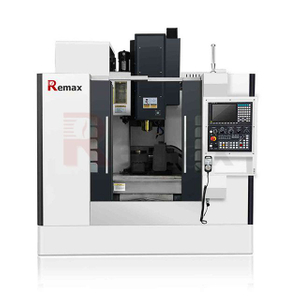

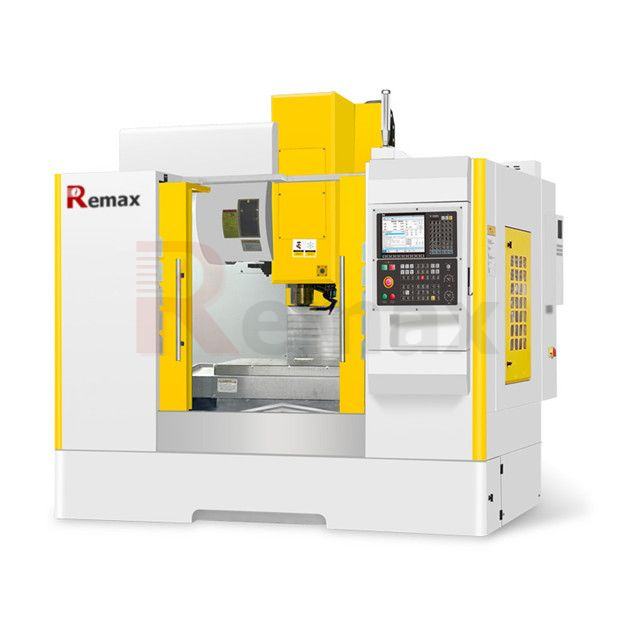

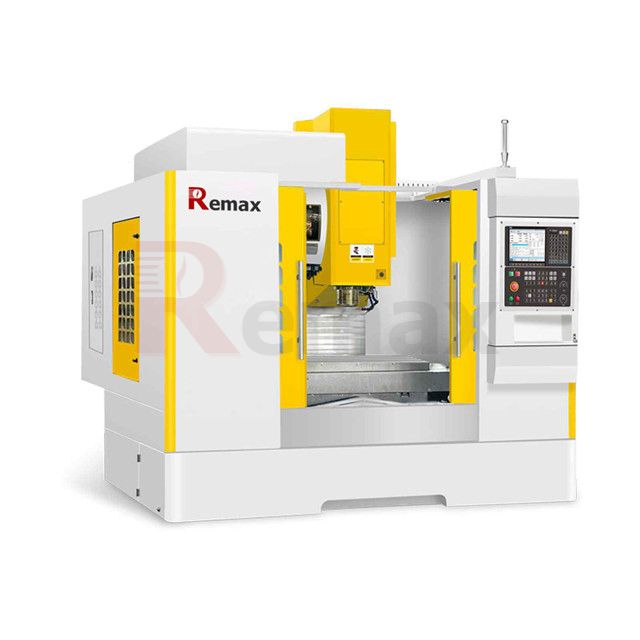

VMC855 CNC Vertical Machine Center

Worktable

Worktable size

mm

1000*550

Worktable max.load

kg

500

T-slot (number*width*distance)

5-18-90

Travel

X-axis travel

mm

800

Y-axis travel

mm

550

Z-axis travel

mm

550

Distance from spindle nose to worktable

mm

120-670

Distance from spindle center to column guideway

mm

590

Spindle

Spindle transmission type

belt drive

Spindle taper

BT 40 φ150

Spindle speed

rpm

10000

Spindle motor

kw

7.5/11

Oil cooler

with

CTS (coolant through the spindlesystem)

30

BAR

Feed Speed

X/Y/Z-axis rapid feed

m/min

32/32/24

Cutting feed speed

mm/min

1-10000

Tool magazine

Tool capacity

pcs

24

Tools change way

Arm type ATC

Tool change time

s

2.5

Precision

Positioning precision

mm

±0.008

Reported positioning precision

mm

±0.005

Test standard

JISB6336-4:2000/ GB/T18400.4-2010

Other

Package size

mm

2600*2380*2400

weight

kg

5500
