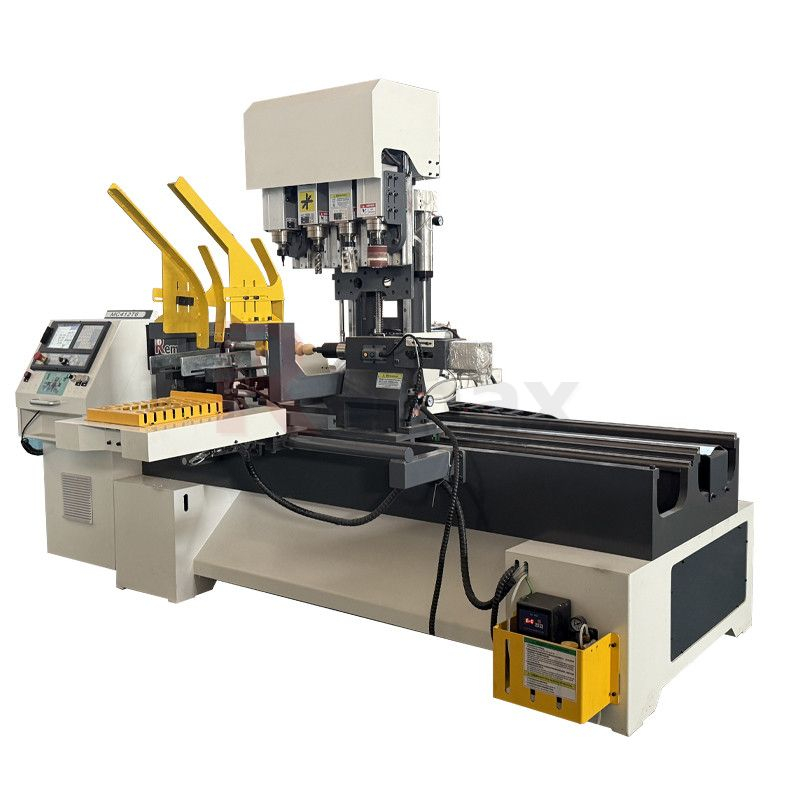

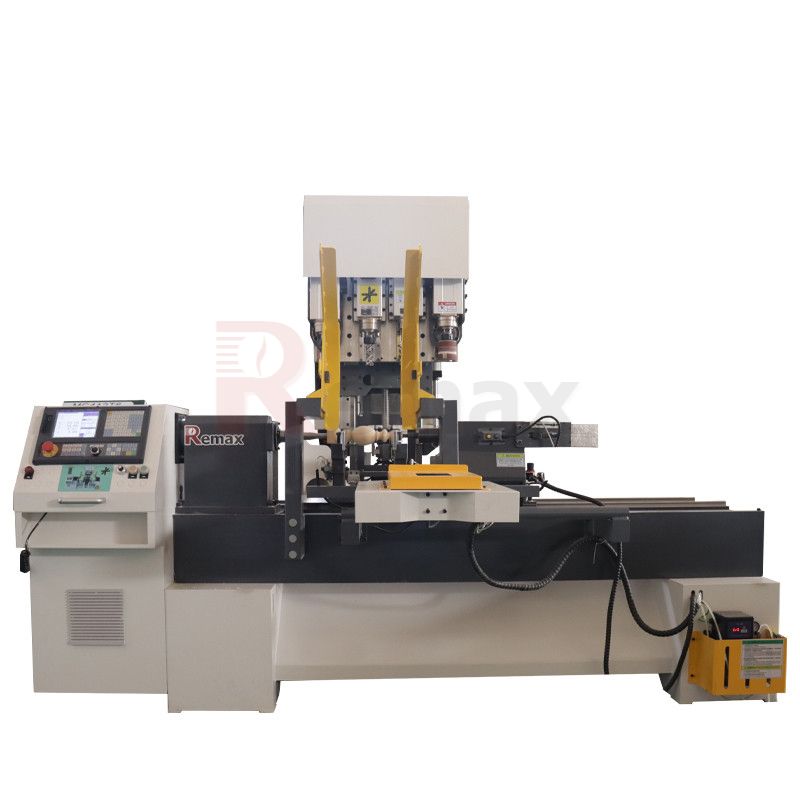

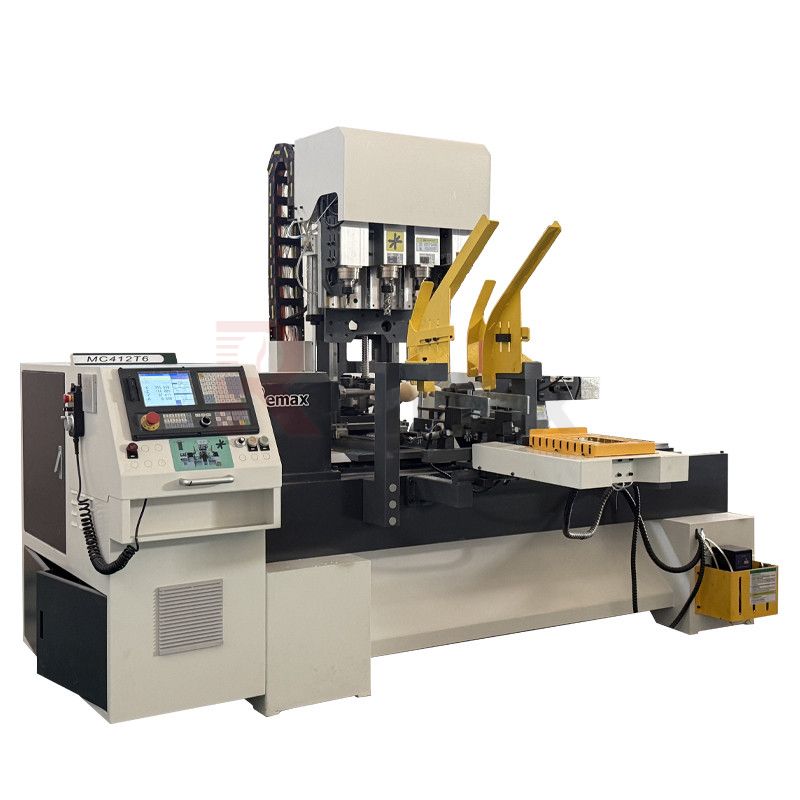

4 in 1 wood cnc lathe
Remax
Parameter
| Description | Parameter | |||
| Processing stroke | 1200mm*200mm | |||
| Feeding mechanism | Automatic feeding in bin type, (loading range:width*thickness≤100*100mm, length 80~1200mm) | |||
| Body structure | Integral casting body (annealing treatment) + casting rigid structural components | |||

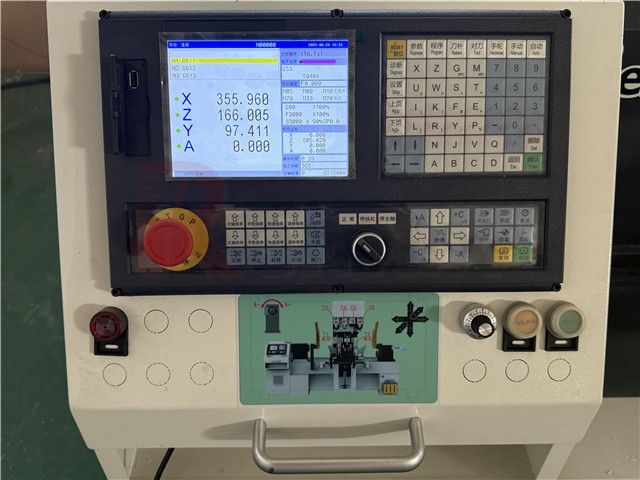

| Control system | Xinkerui 4-axis milling system | |||
| X, Y, Z, A axis feeding method | X\Y\Z Xinkerui servo drive, A-axis Alpha spindle servo | |||
| Lathe tool holder | Cylinder telescopic 2-position lathe tool holder | |||
| Guide rail | 25;30 matching precision linear guides | |||
| Ball screw | Precision ball screw | |||
| Inverter | Fuling | |||
| Maximum moving speed of X, Y, Z axis | 12m/min | |||
| Maximum processing speed | 10m/min | |||
| Spindle | One 6000 rpm 4.0K servo lathe spindle, two 4.5KW-18000rpm adjustable angle electric spindles, one 6KW- 18000rpm electric spindle, one 7.5kw-12000rpm electric spindle | |||
| Processing accuracy | ±0.07mm/200mm | |||
| Repeat positioning accuracy | ±0.06mm | |||
Features
1.Steel pipe weld lathe bed, strong and never out of shape

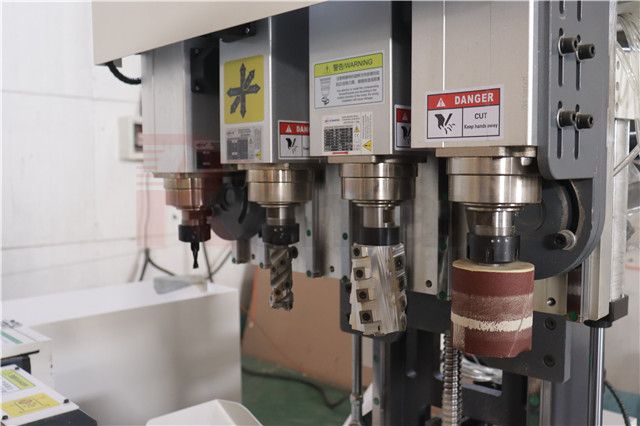

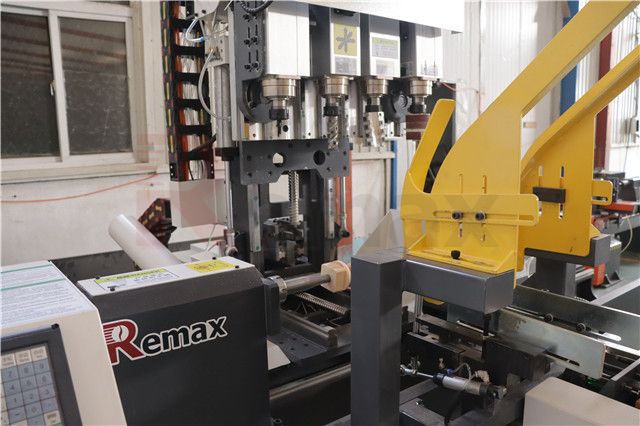

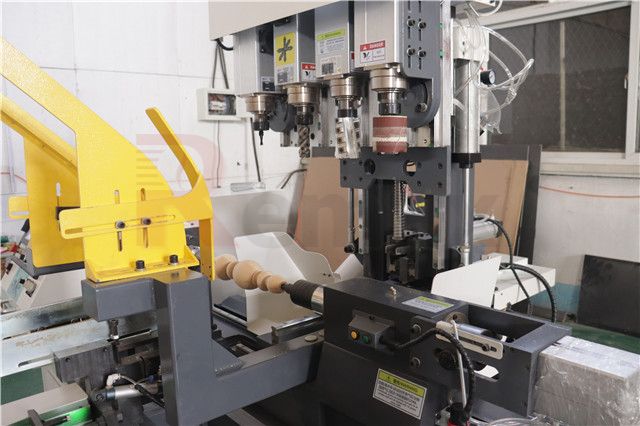

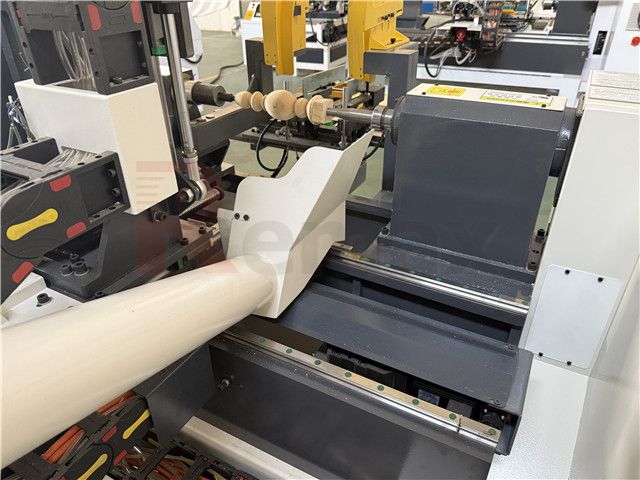

Machine parts

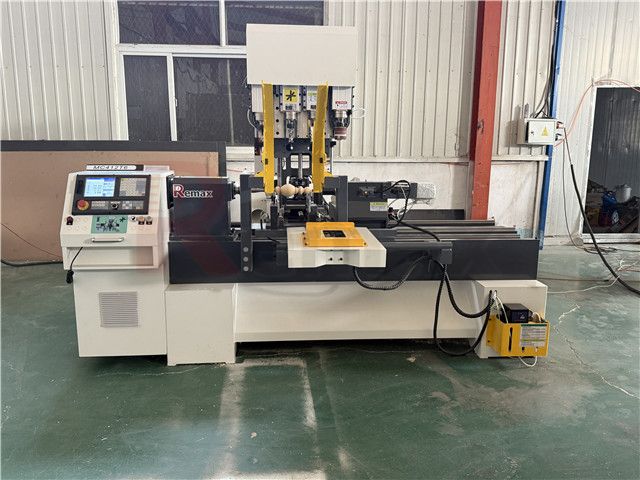

Machine sample
Customer Feedback
FAQ
Q: Are you a factory or trading company ?
A:We are a manufacturer
Q:How i can choose a suitable machine?
A:Tell us the max working area,the material and its thickness you want to process ,we can help you choose the best suitable machine .
Q:Traning and use ?
A:We will supply friendly Engish operation manual and Installation .
customers is warmly to welcome to visit for free traning .
if you need ,we also provide the engineer overseas training .,
Q:How about the documents after shipment?
A:After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Q:Certification
A:CE,ISO,FDA,CO,FORM A,FORM E,FORM F,FTA...
Our service
1. The normal machine has been adjusted correctly before shipment.
2. You will be able to use the machine immediately.
3. You will be able to get free training suggestions about our machines on our machines.
4. You will also get free advice and consultation, technical support, and service via email/fax/telephone as well as lifetime technical support.
