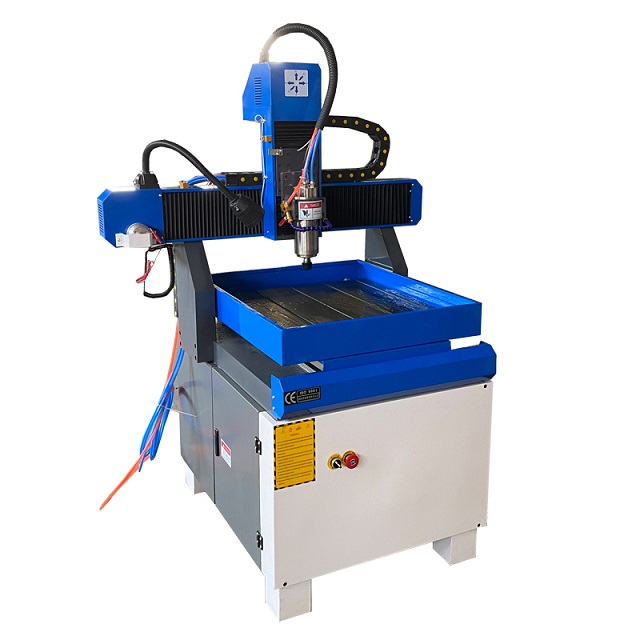

small 6060 metal engraving machinery cnc router machine

Hobby cnc router is usde for engraving and milling copper, iron, steel, Aluminum etc.

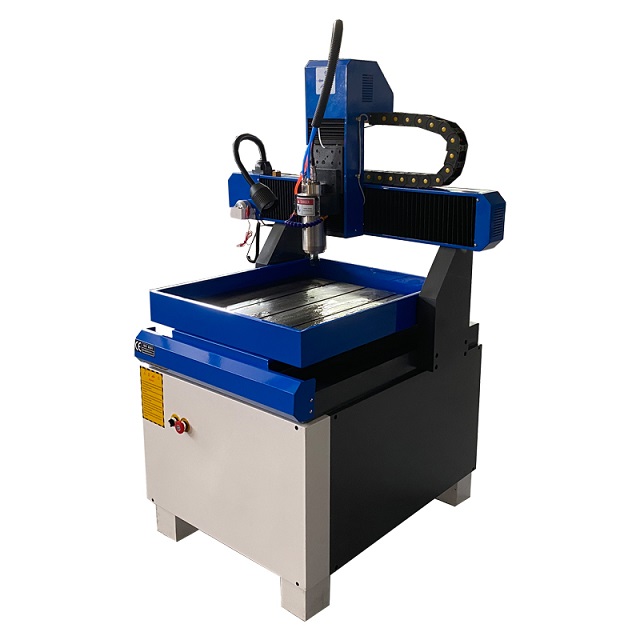

6060 mini

Hobby cnc router is usde for engraving and milling copper, iron, steel,Aluminum etc.

1.The metal mold cnc machine imported Hiwin square rail and TBI ball screw for 3 axis.

2.Mach3 /DSP /NC studio control system ,easy to operation.

3.Stepper motor and Leadshine driver,fast speed and high precision.Leadshine servo /Delta servo/Japan servo motor for option.

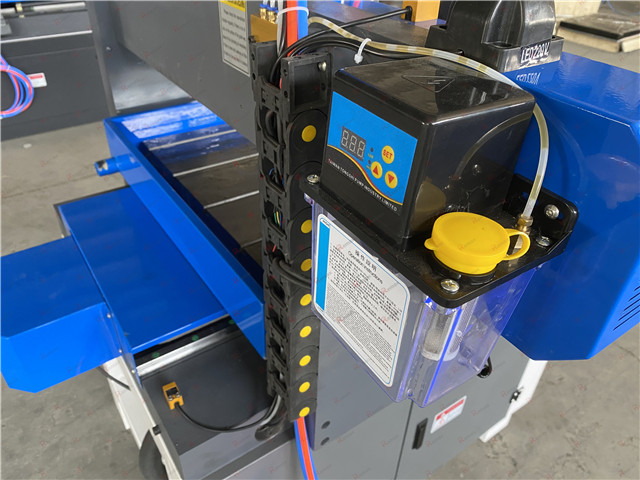

4.Machine with lubricating system,spindle cover ,Japan Omron limit switch and Schneider eletrical components.

5.Working area is 600*600*200mm,the Z axis can make it according your needs.

Product Description

Description	Parameter
X,Y,Z Working Area	600x600x200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/100mm
X,Y,Z Repositioning Accuracy	0.0245mm
Table Surface	T-slot Table with table moving
X, Y,Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
Z Structure	Hiwin Rail Linear Guide and TBI Ball Screw
Max. Rapid Travel Rate	16000mm/min
Max. Working Speed	10000mm/min
Spindle Power	1.5 / 2.2 / 3 kw water cooling spindle for option
Spindle Speed	0-24000RPM

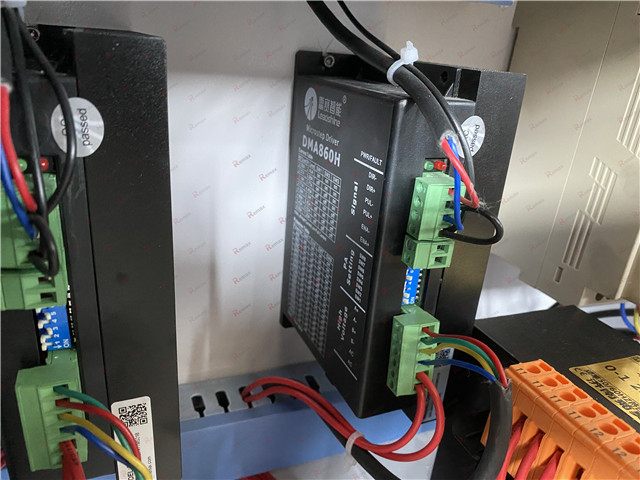

Drive Motors	Stepper Motor and Leadshine Driver
Working Voltage	AC220/380V/50/60Hz,1PH/3PH for option
Command Language	G Code
Operating System	DSP A11 control system/Mach3 / NC Studio for option
Flash Memory	128M(U Disk)
X,Y Resolution	<0.01mm
Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%

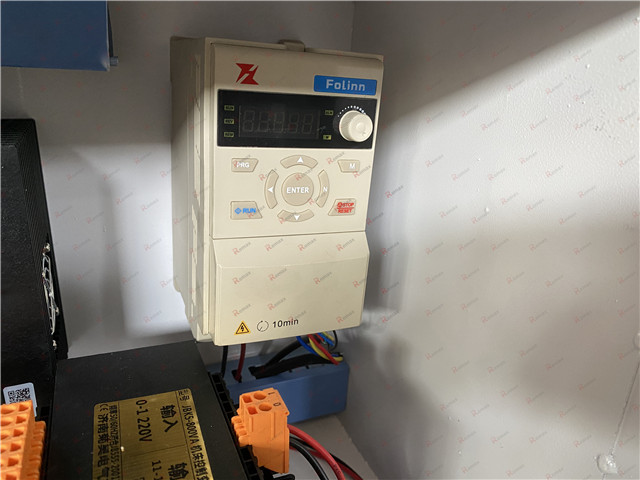

Inverter	Delta / Fuling

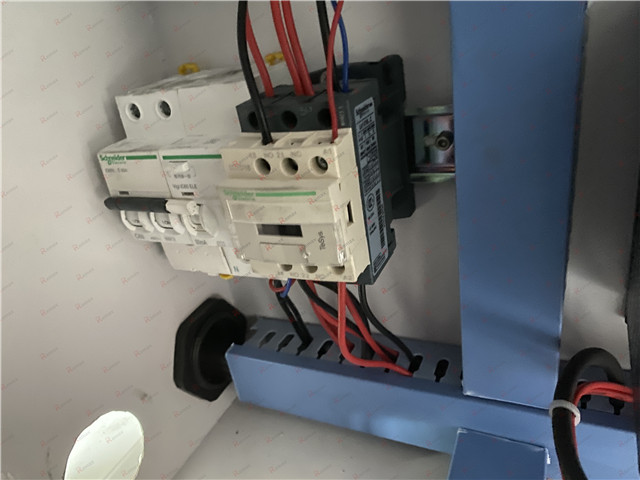

Electrical components	Schneider
Limit switch	OMRON
With	Lubrication system, LED light, Tool sensor
