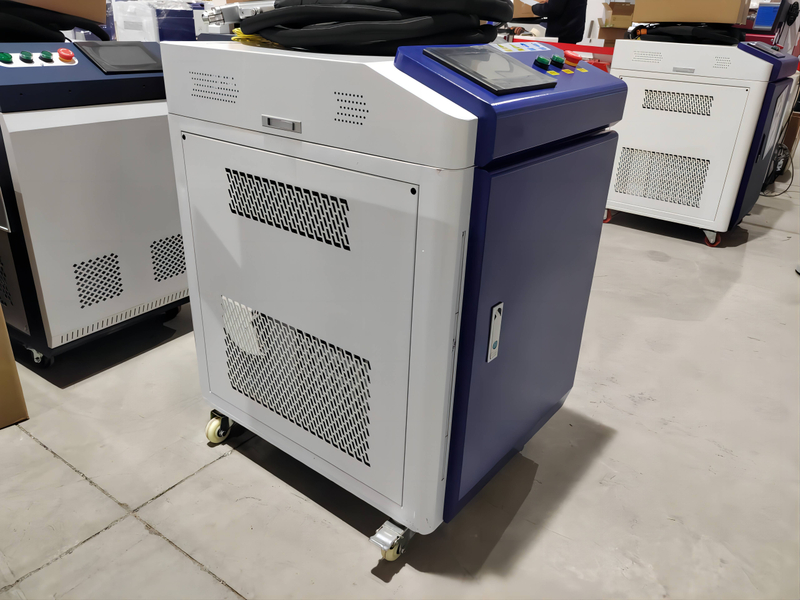

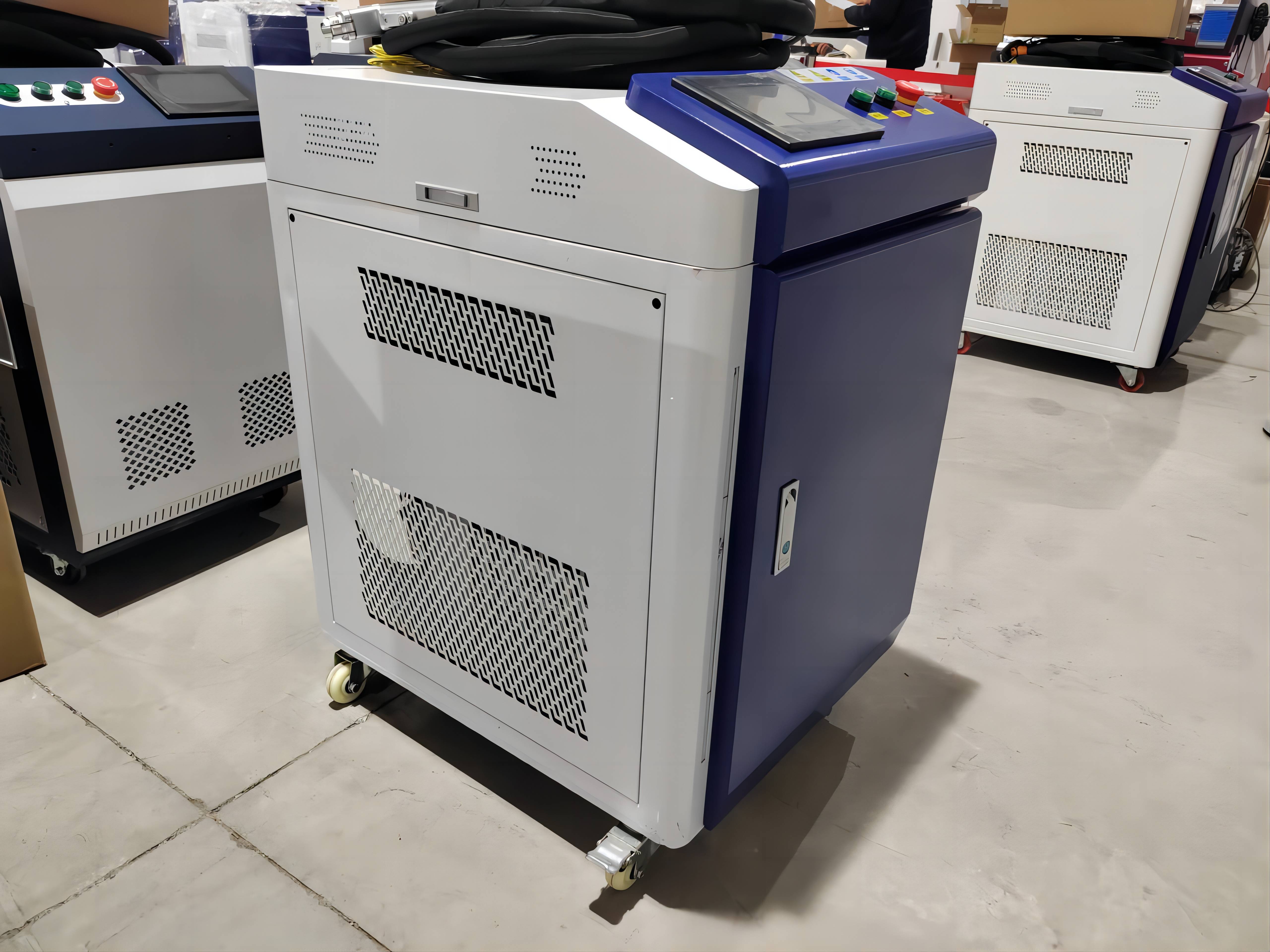

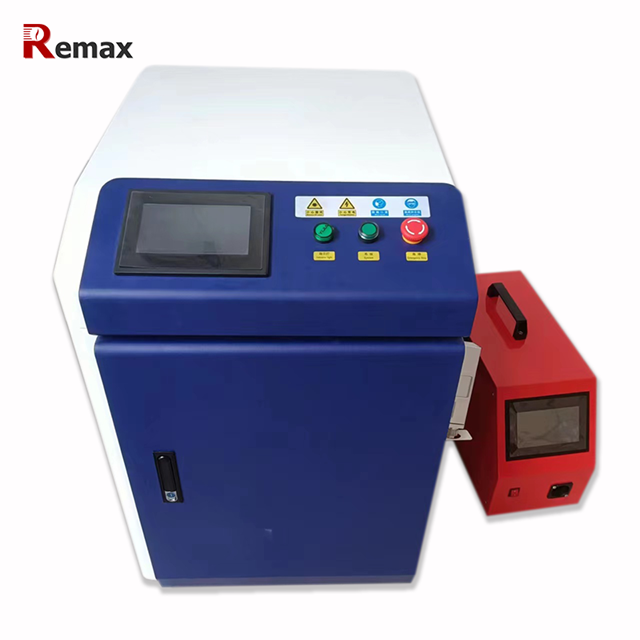

1500W Remax 4 in 1 Fiber Handheld Laser Welding Machine

Name: 1500W Remax 4 in 1 Fiber Handheld Laser Welding Machine
Brand: Remax
Rating: 5.0 (26 reviews)

High laser energy density, small thermal effect area, not easy deformation, less or no subsequent processing.

Availability:

Quantity:



Inquire Add to Basket

Model:
Remax -1010
Brand:
Remax

Product Description

Handheld 4 In 1 Laser Cleaning Welding Cutting Machine

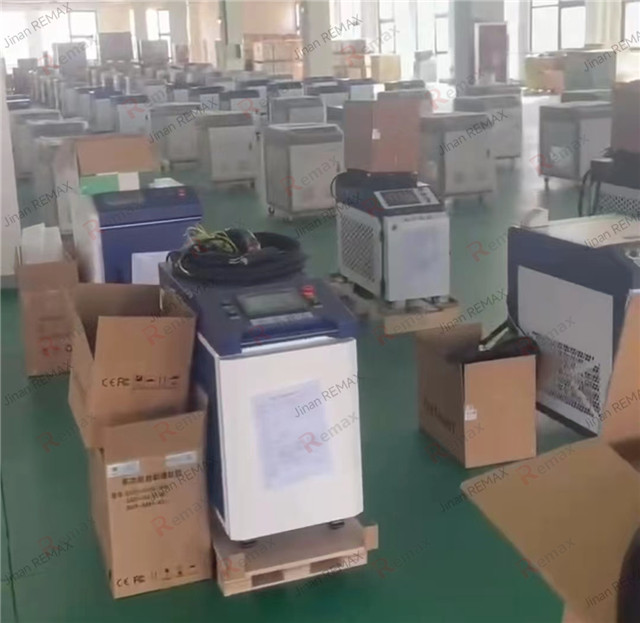

FACTORY

Specification

Machine Name	Handheld Fiber Laser Welding Machine
Laser Power	1000w/1500w/2000w
Laser Wave Length	1080nm
Laser Source	Raycus / JPT / IPG/MAX/bwt
Fiber Length	10M

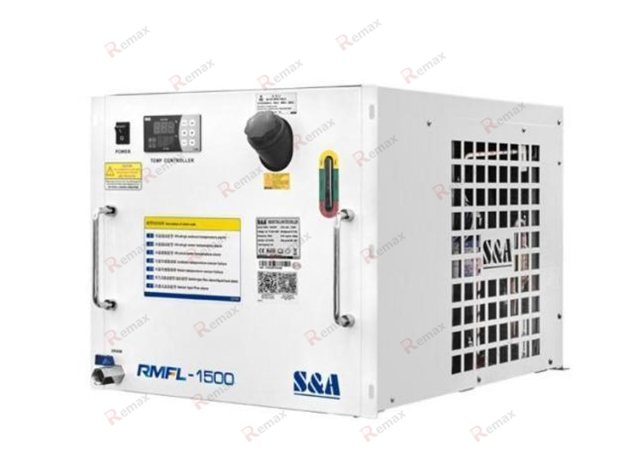

Cooling Mode	Water cooling
Laser Pulse Frequency	1-20HZ
Pulse Width	0.1-20ms
Adjusted spot range	0.1-3mm
Minimum Welding pool	0.1mm
Gas source	0.2Mpa (Argon )
Working Voltage	AC220V / 50Hz / 60HZ
Application	This series laser welding machine is perforation, widely used in kitchen industrial , household appliances , advertisement , module industrial , stainless windows and doors , handiwork , home supplies, automobile spare parts industry .

1500W Remax 4 in 1 Fiber Handheld Laser Weld

Features

1.The hand-held welding gun replaces the previous fixed optical path, which is more flexible and convenient, realizes long-distance laser welding, and overcomes the limitation of the workbench stroke space;

2.The hand-held welding head is light and flexible, and the operation is convenient and simple, which can meet the welding of various angles and positions;

3.Infrared positioning is used for welding head position verification and position verification during welding. The welding position is more accurate and the welding seam is more beautiful;

4.The laser welding depth is large and the welding is firm;

5.It is not easy to deform, easy to be polished, and solves the problems of weld penetration, weld bead, welding quality and so on when using argon arc welding;

6.It is also suitable for various complex welding seams and spot welding of various devices.
