Remax laser welding machine
Remax

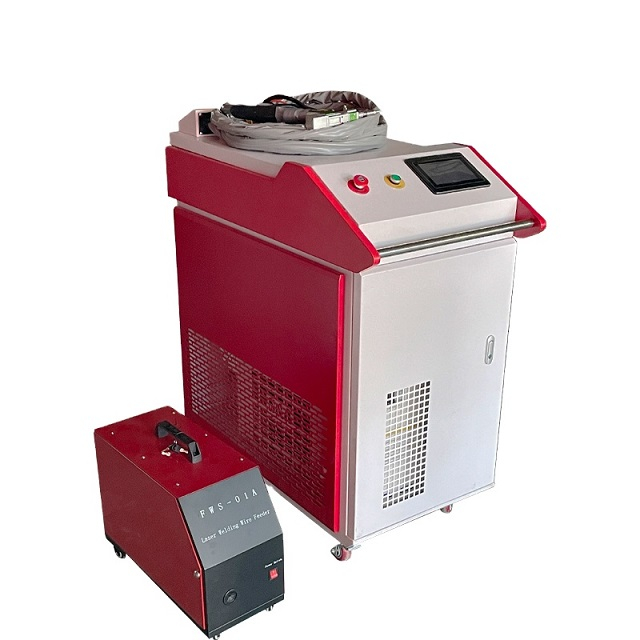

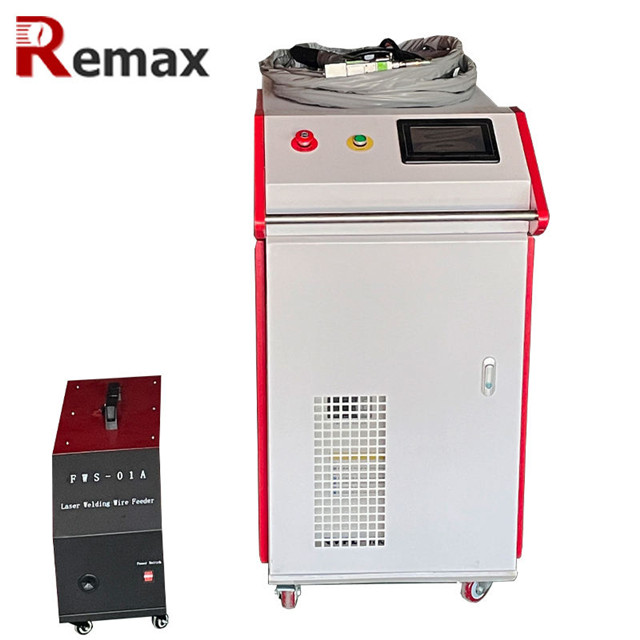

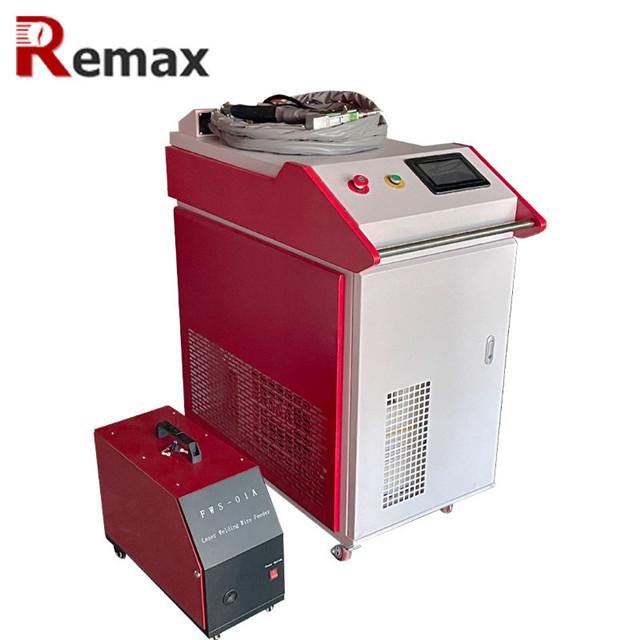

Handheld 3 In 1 Laser Cleaning Welding Cutting Machine
Handheld 3 In 1 Laser Cleaning Welding Cutting Machine Specification:
| item | value |
| Product name | handheld 3 in 1 laser cleaning welding cutting machine |
| Laser Power | 1500W/2000W/3000W |
| Laser head | Refar handheld welding + cleaning head |
| Laser source | RAYCUS(JPT / IPG /bwt/MAX/Guangfang for option) |
| Water chiller | Industrial S&A water chiller |
| Laser Wave Length | 1080nm |
| Pulse Width | 0.1-20ms |
| Adjusted spot range | 0.1-3mm |
| Minimum Welding pool | 0.1mm |
| Laser Pulse Frequency | 1-20HZ |
| Cooling mode | Water cooling |
| With | Protect lens |
| With | Brass nozzle |
| With | Tool box with goggles ,gloves, spanner, etc |
Handheld 3 In 1 Laser Cleaning Welding Cutting Machine Features:
High laser energy density, small thermal effect area, not easy deformation, less or no subsequent processing.
Top brand gold cavity, high temperature resistance, corrosion resistance, the service life is 8 to10 years, the xenon lamp service life is more than 800 million times
Easy spot welding, stack welding, splicing and continuous welding.
Variety of detection and protection measures using, greatly avoid the faults caused by a variety of external factors or human misuse, to protect the equipment with long-term stable operation.
Non-contact processing, stress free, noiseless, no pollution to the environment, which belongs to the green processing.
Good welding quality, smooth and beautiful appearance.
The communication function monitors all data of the laser.
It adopts a specific fiber to achieve the welding of tiny solder bumps.
High quality fiber laser beam, high conversion efficiency and therefore high welding speed, high aspect ratio, high strength.
Excellent spectral system minimizes energy loss to ensure that the laser energy of each fiber is almost the same.
It adopts optical fiber transmission, can realize remote welding, conveniently to equip with automatic welding workbench, manipulator, assembly line and other equipment together to work. More uniform light spot and more beautiful solder joints after the light transmission.
A variety of input and output signals are very easy to achieve the machine's automated production and assembly line production.
Solder joints non-pollution, weld strength and toughness at least equivalent to or stronger than the base metal.
It supports time spectroscopy and energy splitting or a combination of these two spectroscopic modes (customizable).
Multi-channel fiber output, up to 4 fiber at the same time, significant cost savings, improve welding efficiency and reduce equipment space.
Touch screen input, friendly human-computer interaction makes setup and operation easier. The operating system is easy to learn and easy to operate.
Handheld 3 In 1 Laser Cleaning Welding Cutting Machine Parts:

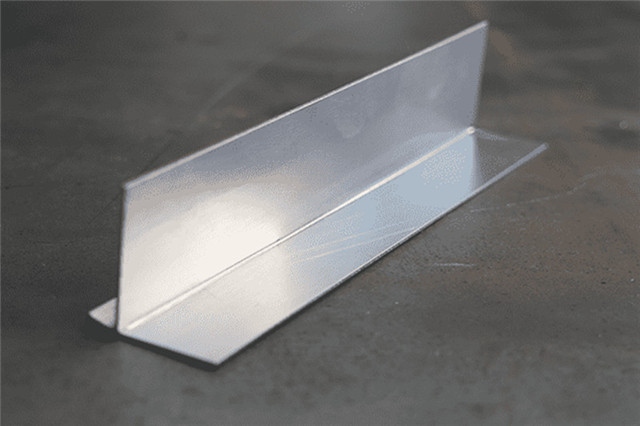

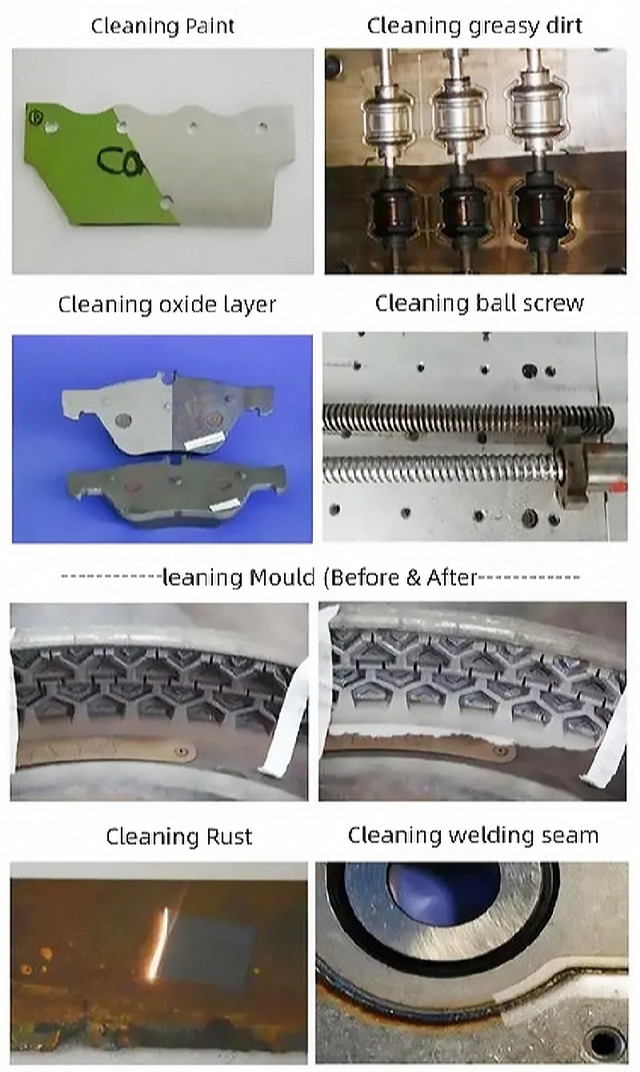

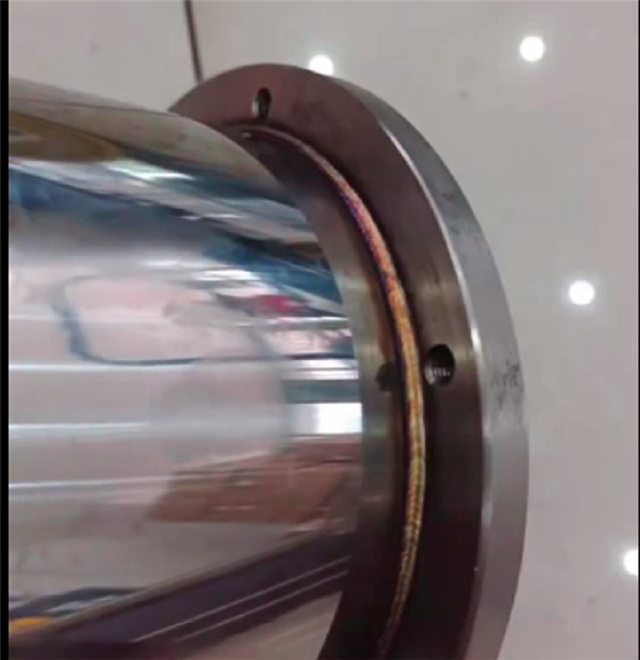

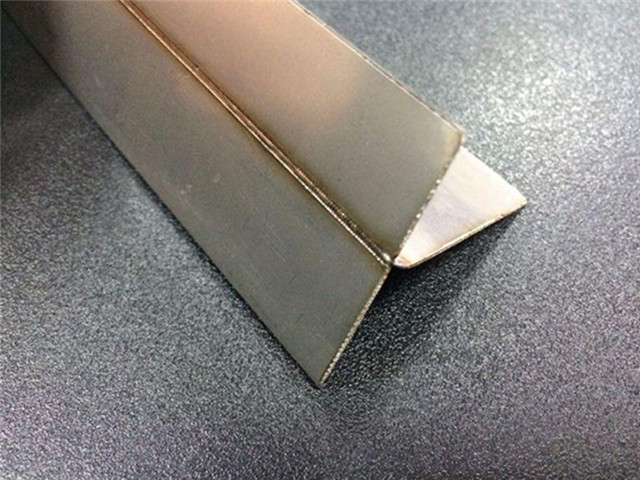

Handheld 3 In 1 Laser Cleaning Welding Cutting Machine Sample:
About Remax:
