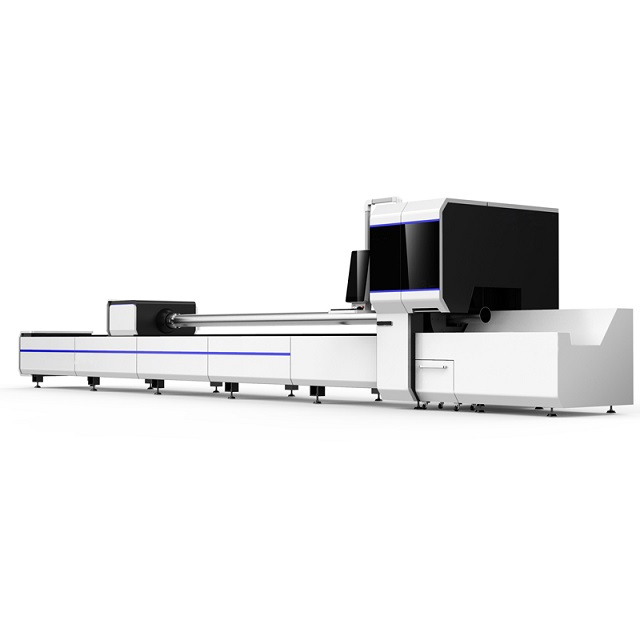

6020 Tube Fiber Laser Cutting Machine

Parameter

Effective cutting width(X axis)	200mm
Effective cutting width(Y axis)	6000mm
Control system	Cypcut
Laser head	Raytools/Precitec
Laser source	Raycus/Max/IPG
Plasma cutting speed	50-6500mm/min

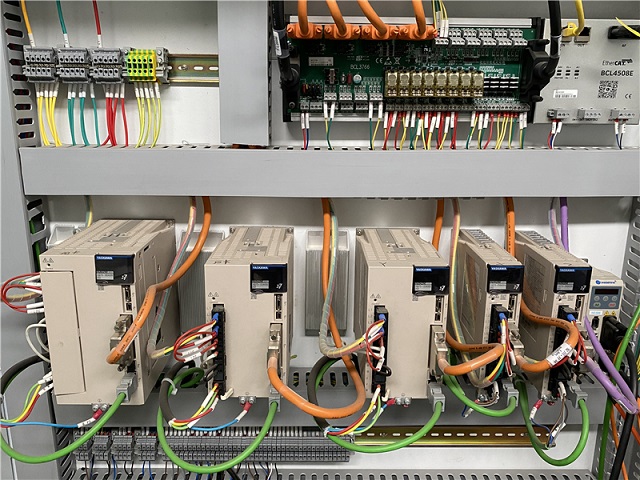

Motor	Japan Yaskawa/Panasonic servo motor
Reducer	Japan Shimpo
Work table	Blade platform
Auxiliary Gas	Oxygen, Nitrogen, Air
Guide rail	Taiwan Hiwin/PMI square rail
Working voltage	AC220/380V, 50/60HZ
Positioning accuracy	±0.03mm/m
Repeated positioning accuracy	±0.02mm/m
Water chiller	China Hanli

Features

1.Application of gantry structure and integrated cast cross-girder to achieve higher rigidity,stability,shock resistance.
2.High-performance laser source and stable operating system which make the best cutting effect.
3.The machine owns perfect cooling system,lubrication system and dust removal system,to ensure that it

can operate stably,efficiently and durably.
4.The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5.The machine is used for cutting a variety of metals with excellent and stable cutting quality.

Machine Parts

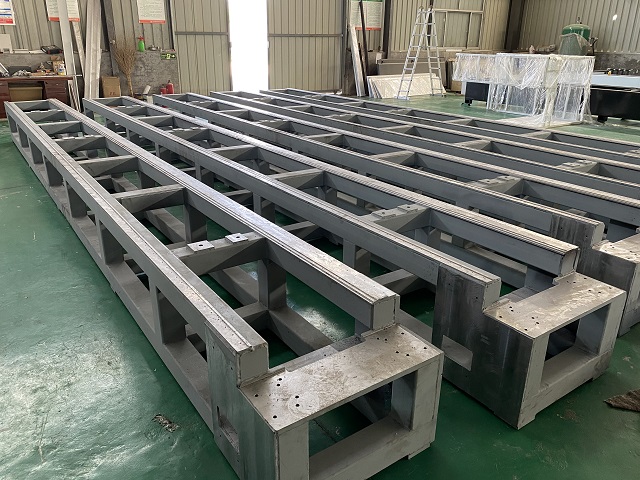

Heavy machine main frame structure

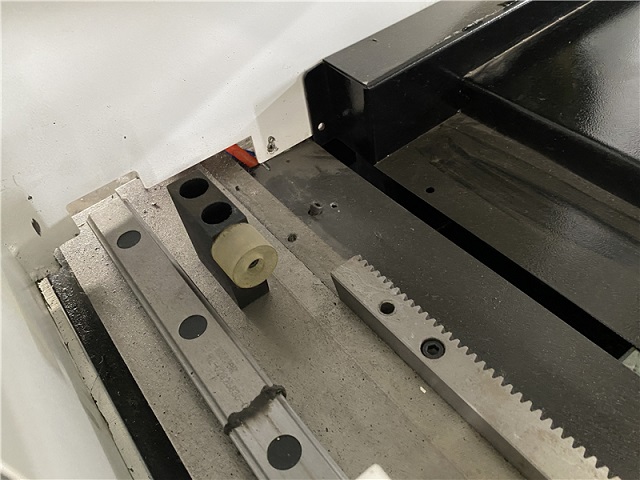

Guide rail ,rack transmission OMRON limit switch

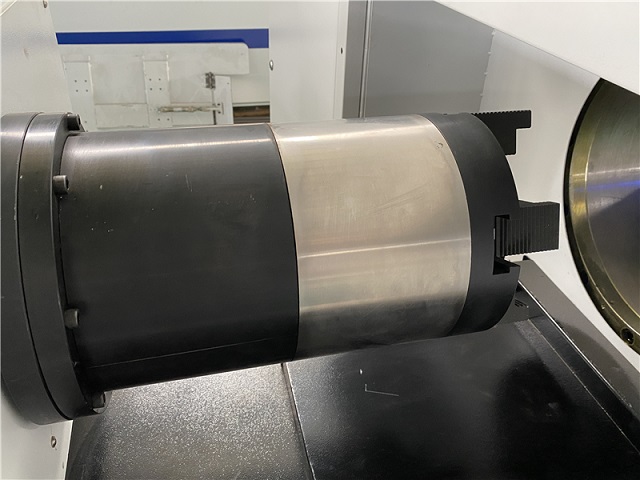

Patenened design,the rear chuck can go into front chuck will chieve ultra-short 45 mm trailing

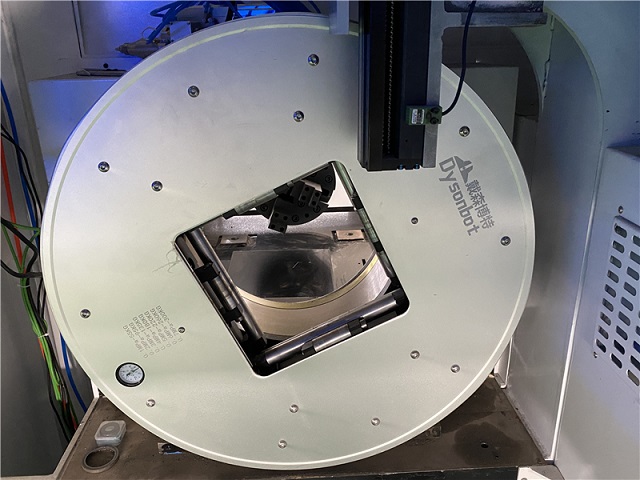

Patenened full stroke Pneumatical chuck

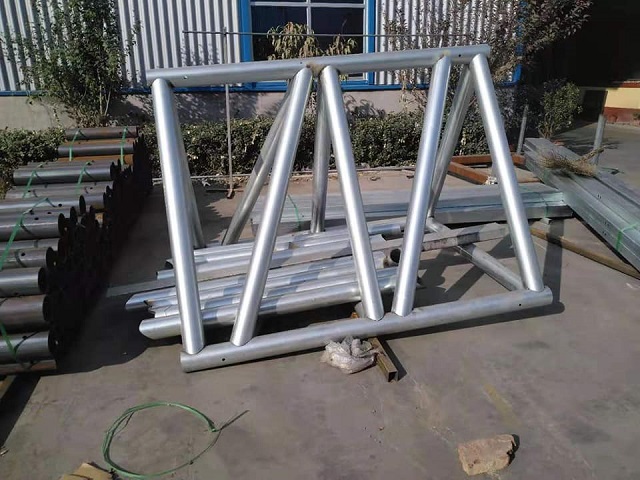

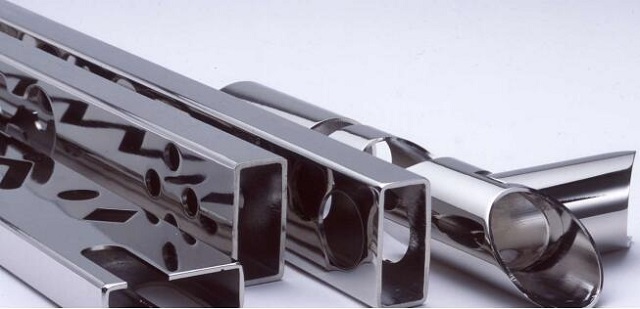

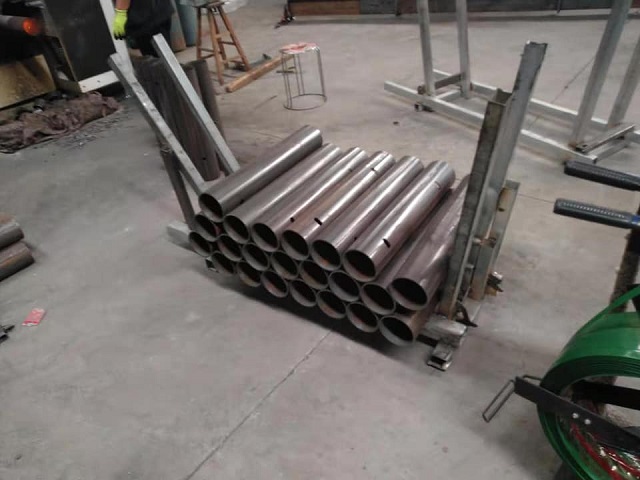

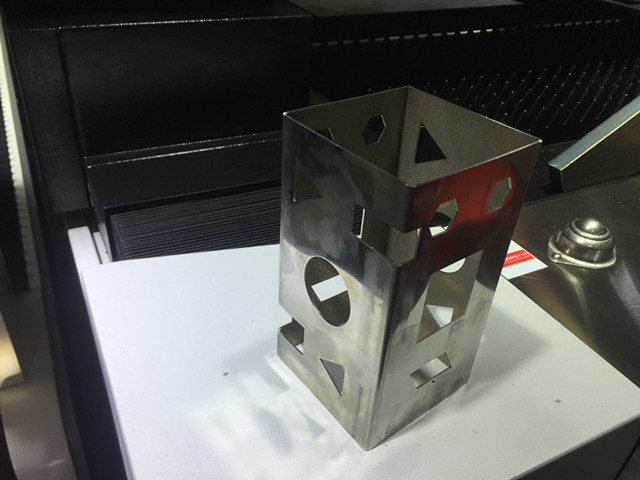

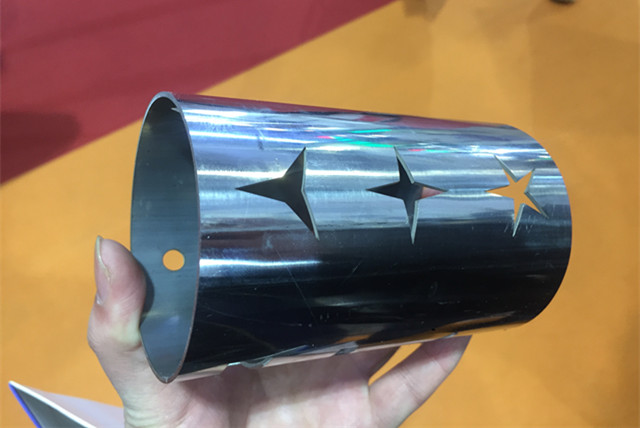

Machine Samples

FAQ

1. Are you manufacture or trading company?

We are manufacturer in China for 8 years. All of our machines with CE certified.

2. How long is the delivery time?

After receiving deposit, it’s about 20 days for factory production.

3. What are the payment terms?

Normally via T/T. Or place order by credit card or T/T, we also accept western union Moneygram, L/C, etc.

4. Can you guarantee the quality of your products?

Since the establishment of our company, we have been engaged in the development of CNC metal cutting machine,and have a strict quality inspection system for the metal cutting machinery industry.

Our Service

1.After the final acceptance of the equipment, the quality assurance period of the whole machine is 24 months.

2.Technical information:

After the payment by the buyer, the supplier unit provides free of charge: machine instruction manual, basic production installation diagram, circuit diagram, gas supply drawing, power supply drawing.

3.During the warranty period, when the equipment failure occurs due to the quality of the equipment supplied

by the seller, the seller will respond within 12 hours after receiving the buyer's notice, and free online troubleshooting, guidance repair orreplacement of parts.

4.After the warranty expires, the equipment enters the paid service period, and the manufacturer only charges the cost and transportation costs.
