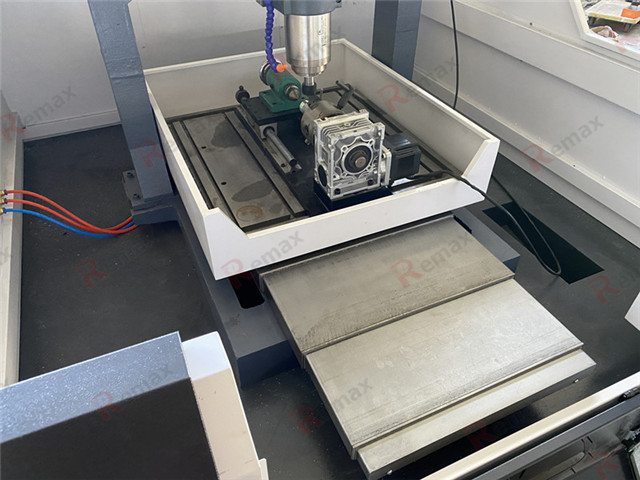

4040 4 axis engraving cnc milling machine

Name: 4040 4 axis engraving cnc milling machine
Brand: Remax
Rating: 5.0 (77 reviews)

It is suitable for precision engraving, milling and drilling of steel, copper, aluminum, plastic and other materials.

Availability:

Quantity:



Inquire Add to Basket

Model:
4040 4 axis
Brand:
Remax

Product Description

Application of CNC Metal Engraving Machine

1. It is suitable for precision engraving, milling and drilling of steel, copper, aluminum, plastic and other materials.

2. Widely used in automobile, injection mold, hardware mold and engraving mold industry.

3. Specially designed for engraving and milling dies, glasses, watches, panels, badges, brands, large-size three-dimensional graphics and characters with smooth outer surface.

Product Details

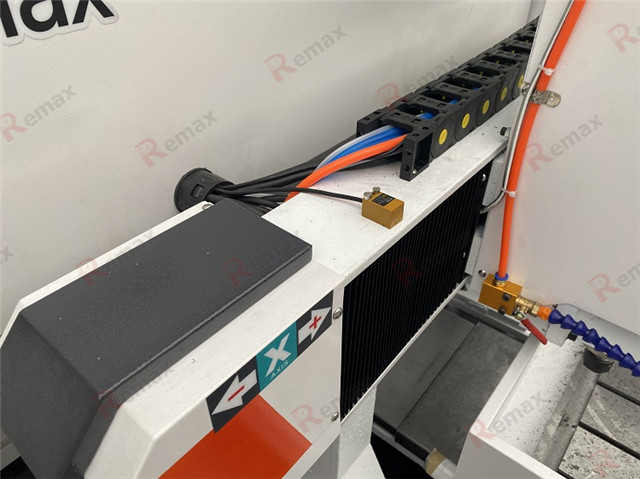

1 .X Linear guide rails and linear guide rails on X, Y and Z (German screw drive) axes are used to ensure high precision and stable performance, and support heavy weight.
2. The water-cooled brushless spindle of domestic famous brand is adopted, which has low noise and strong cutting ability and ensures long-time working.
3. The gantry structure and cast iron ensure strong stability and support. Electronic handwheel is easy to operate.

Product name	metal milling mini cnc router machine
X,Y,Z Working Area	600x600x200mm

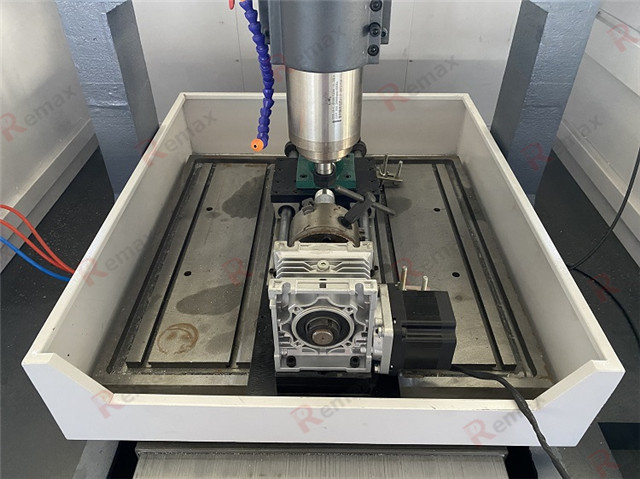

Rotary axis	WITH
X, Y,Z Structure	Hiwin Rail Linear Guide and Ball Screw
Table Surface	T-slot Table
Max. Power Consumption	(Without Spindle) 1.0Kw
Max. Rapid Travel Rate	16000mm/min
Max. Working Speed	10000mm/min
Frame	cast by iron
Spindle Power	3.0KW water cooling spindle

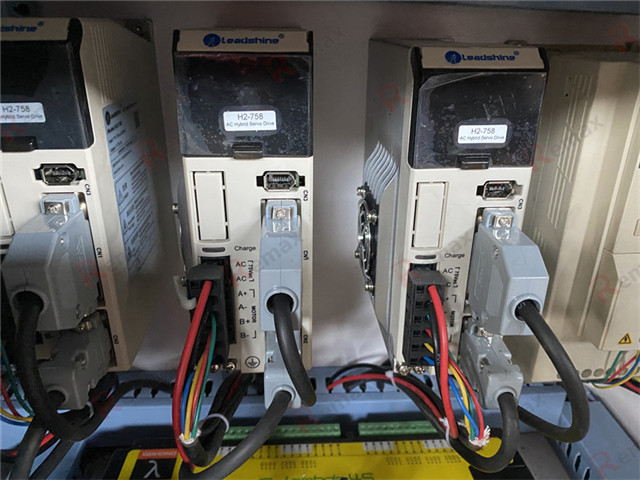

Drive Motors	Servo Motor
Spindle Speed	0-24000RPM
Operating System	Nc studio (Options:Mach3 PC Software,DSP)
Flash Memory	128M(U Disk)
Relative Humidity	30% - 75%

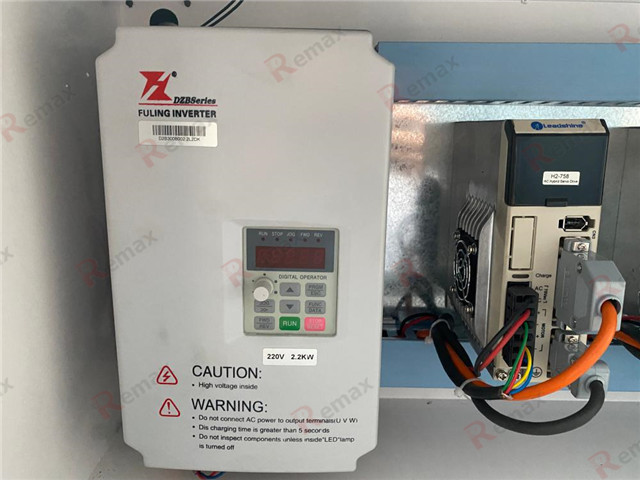

Inverter	Delta/Fuling
Working Voltage	AC220/380V/50/60Hz,3PH
