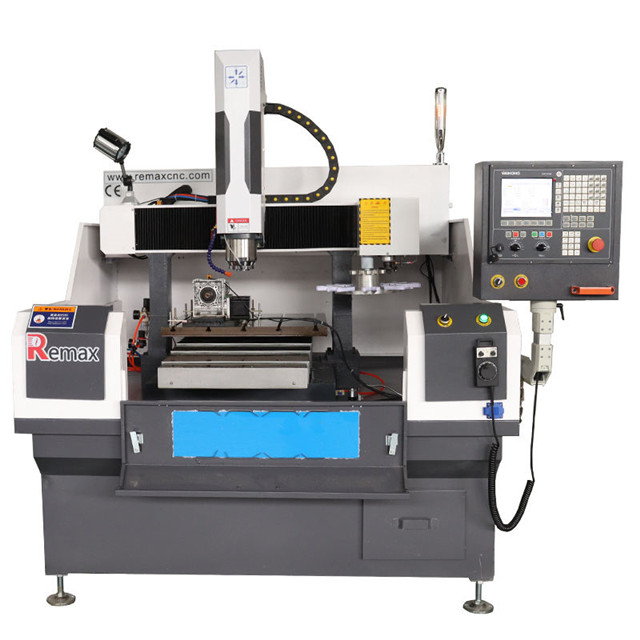

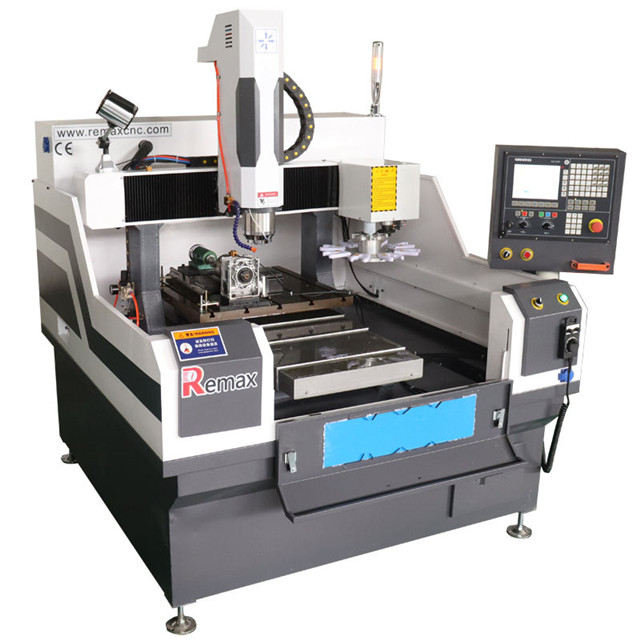

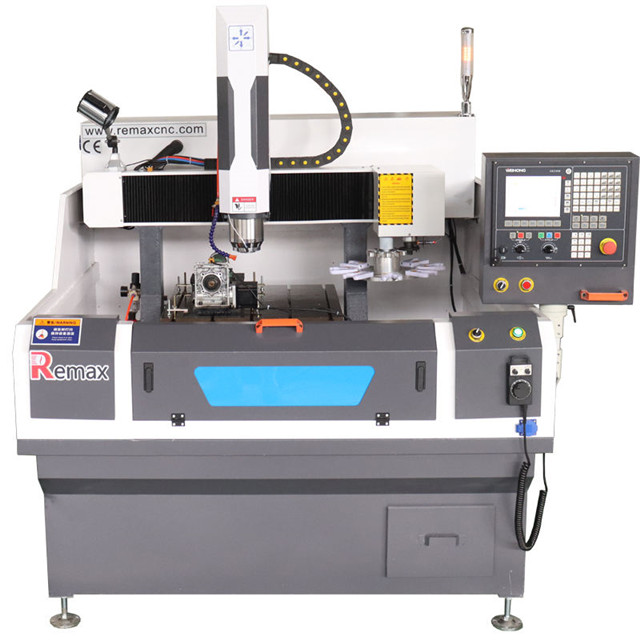

Auto tool change 4 axis metal engraving atc 6060 cnc router machine

Name: Auto tool change 4 axis metal engraving atc 6060 cnc router machine
Brand: Remax
Rating: 5.0 (53 reviews)

Remax 4040 6060 Disc ATC 4 axis cnc metal milling machine, whole machine lathe cast by integrated iron, very strong, table moving, high precision.

Availability:

Quantity:



Inquire Add to Basket

Model:
Remax 6060 Disc ATC 4 axis cnc
Brand:
Remax

Product Description

6060 atc04

Parameter

No	Item	Parameter
1	XYZ Working area	600600300mm
2	XYZ accuracy	±0.02mm
3	X,Y,Z Repositioning Accuracy	±0.0254mm
4	Table Surface	T-slot table
5	Frame	Cast by iron
6	X, Y, Z Structure	Hiwin Linear Guide rail and Ball Screw
7	Z Structure	Hiwin linear Guide rail and Ball Screw
8	Max. Power Consumption	(Without Spindle) 3.0Kw
9	Max. Rapid Travel Rate	20m/min
10	Max. Working Speed	15m/min
11	Spindle Power	3.2kw/ 5.5kw ATC water cooling spindle
12	Spindle Speed	0-18000RPM
13	Drive Motors	Delta servo Motor and driver
14	Working Voltage	AC220/380V/50/60Hz,3PH
15	Command Language	G code
16	Control System	NK280B/NK280/Mach3/multech/ NK300 control system
20	Software Compatibility	Type3 /Artcam
21	Running Environment Temperature	0 - 45 Centigrade
22	Relative Humidity	30% - 75%
23	Inverter	Delta/Fuling
24	Limit switch	OMRON
26	Electrical Components	Schneider
27	ATC tool holders	10 pcs
28	Rotary axis	diameter 100mm / 200mm for optional

Features

1.Remax 4040 6060 Disc ATC 4 axis cnc metal milling machine, whole machine lathe cast by integrated iron, very strong, table moving, high precision.

2.The mould making cnc machine imported Hiwin square rail and TBI ball screw.

3.NC studio control system NK280B/NK280 / NK300 with handle, easy to operation.

4.Delta servo motor and driver, fast speed and high precision.

5.Machine with lubricating system, spindle cover, Japan Omron limit switch and Schneider eletrical components.

6.Working area is 400*400*300mm, the Z axis heigh is customizable according to your needs. (customizable)

7.Equipped with an disc ATC tool box of 10 tool holders that accelerates tool change speed and more accuracy; you can also choose the linear Auto tool change, it can put 6 tool holders.

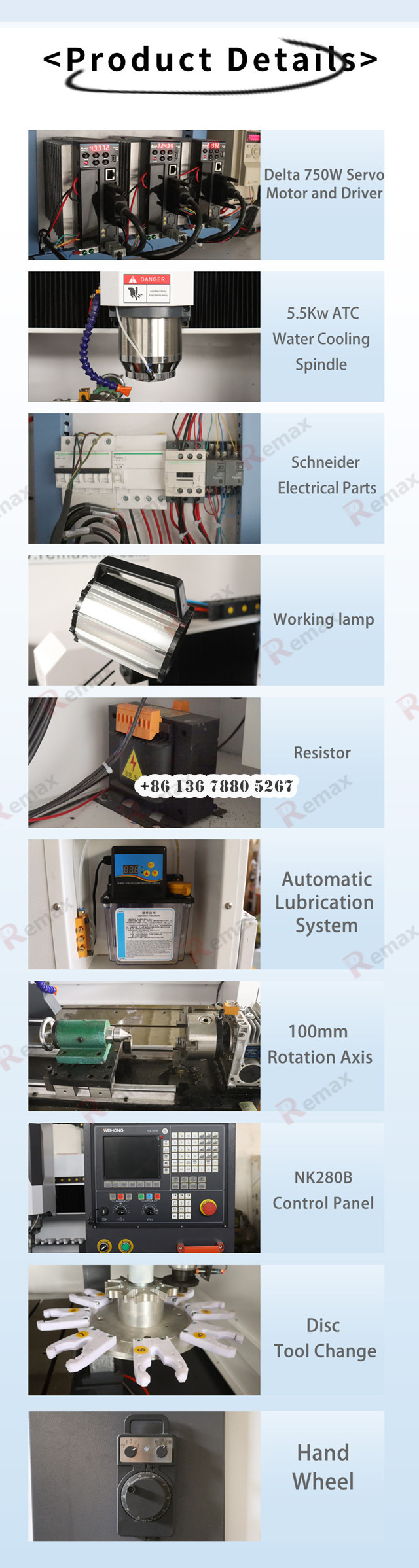

Machine parts

6060 atc01
