| Quantity: | |
|---|---|

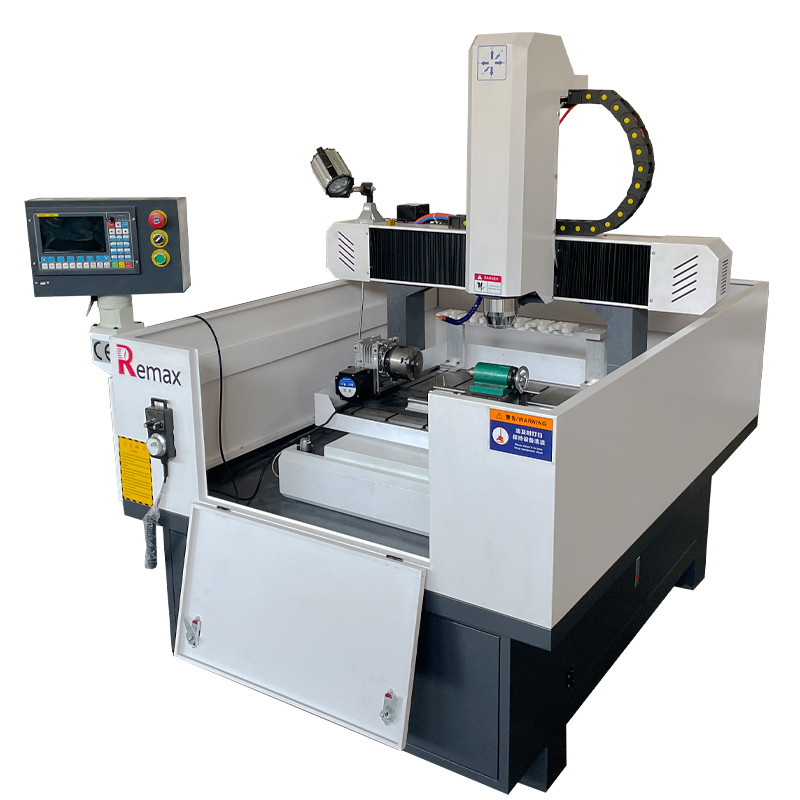

4 axis atc
Remax
| Description | Parameter |
| X,Y,Z Working Area | 600x600x300mm / 400x400x300mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.02mm |
| X,Y,Z Repositioning Accuracy | ±0.01mm |
| Table Surface | Cast iron T-slot Table with table moving |
| Frame | cast by iron |
| X, Y,Z Structure | Hiwin Rail Linear Guide and Ball Screw |
| Z Structure | Hiwin Rail Linear Guide and Ball Screw |
| Spindle Power | 3.0kw ATC water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Transmission | Leadshine hybrid servo Motor and Driver |
| Working Voltage | AC220/380V/50/60Hz,3PH |
| Command Language | G Code |
| Operating System | Foinnc panel |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| X,Y Resolution | <0.01mm |
| Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Inverter | Delta/Fuling |
| Electrical components | Schneider |
| Limit switch | OMRON |
| 4 axis rotary | diameter 100mm/200mm/300mm for optional |
| With | Lubrication system/LED light/Water tank /Tool sensor |
Feature
1.Our metal mold engraving cnc router ,whole machine cast by iron,very strong,table moving,high precision.
2.The metal mold cnc machine imported Hiwin square rail and TBI ball screw for 4 axis.
3.Foinnc control system ,easy to operation.weihong,Mach3 or DSP for option.
4.Leadshine servo motor and driver,fast speed and high precision.Japan servo motor for option.
5.Machine with lubricating system,spindle cover ,Japan Omron limit switch and Schneider eletrical components.
Sample
