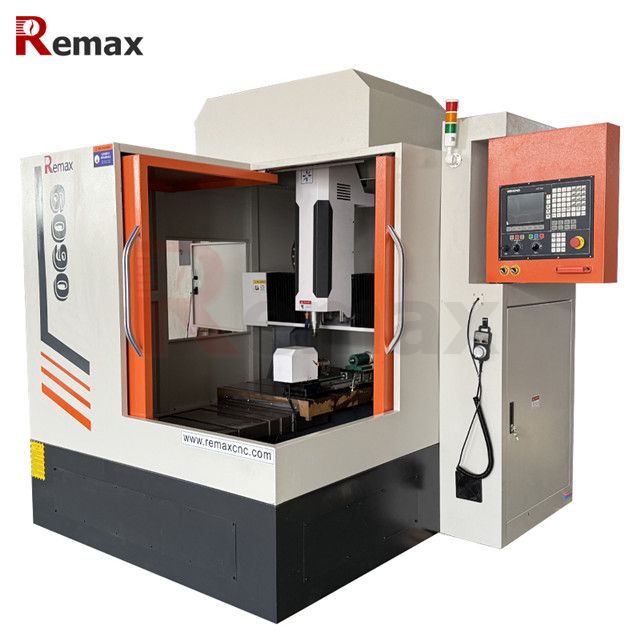

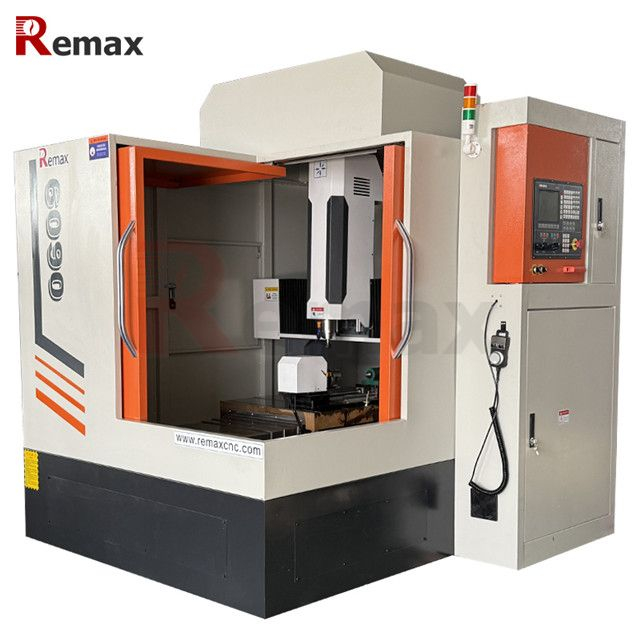

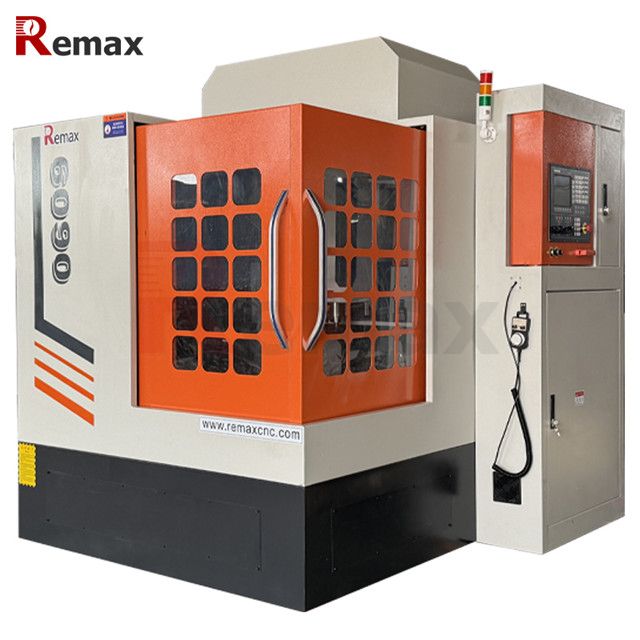

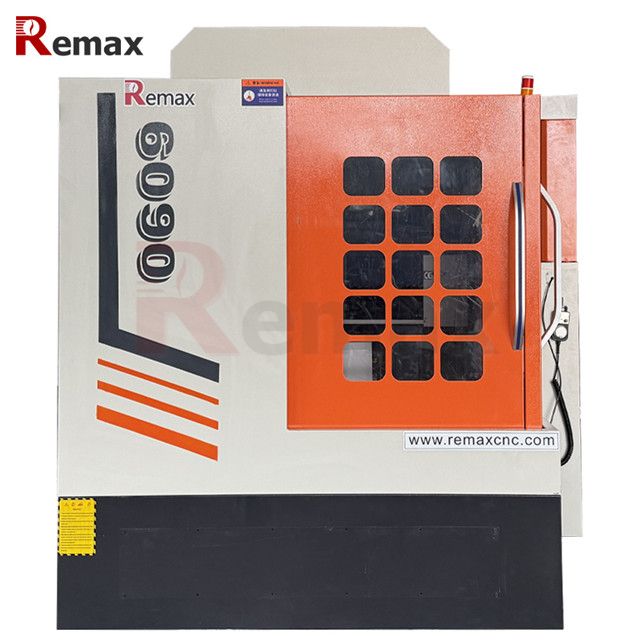

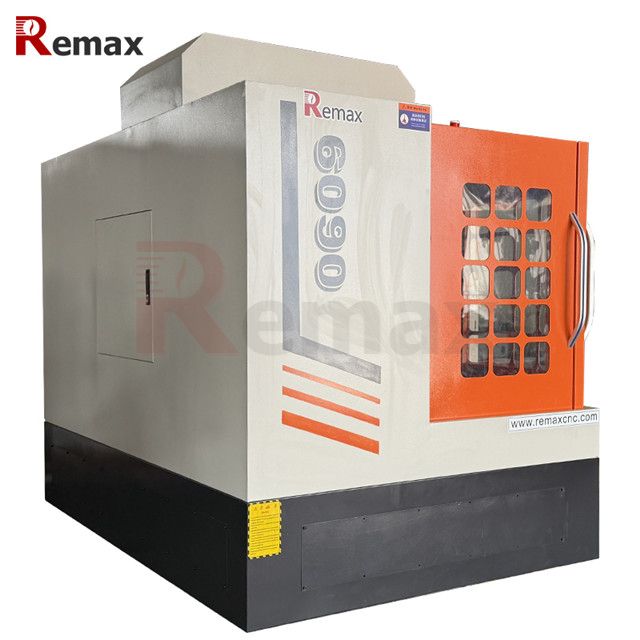

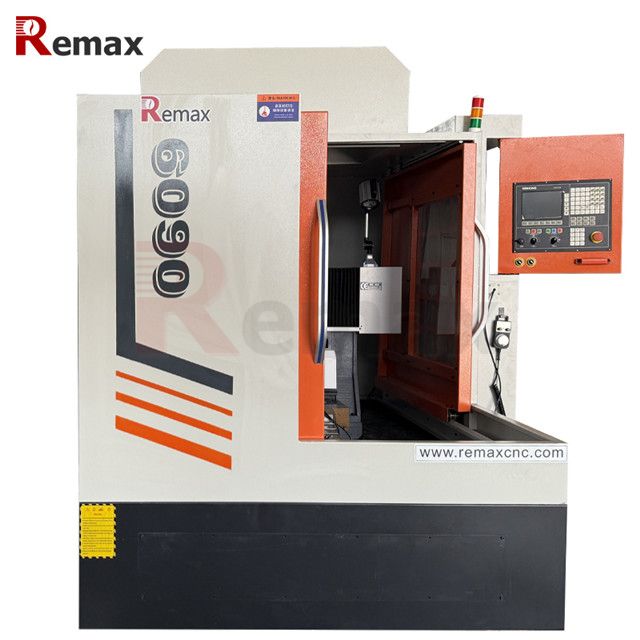

6090 4 aixs ATC
Remax
Parameter
| Description | Parameter of cnc milling machines |
| X,Y,Z Working Area | 600x600x300mm |
| Control system | NK280B/NK300/KY control system |
| Table Surface | Cast iron T-slot work table |
| Transmission | 30mm Hiwin guide rail and grinding ball screw |
| Motor and driver | Leadshine 1500w servo motor and driver |
| Spindle Power | 3.2/5.5/7.5kw water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Working Voltage | AC220/380V, 50/60HZ |
| Inverter | Fuling |
| Electrical components | Schneider |
| Limit switch | OMRON |
| Steel dust proof | With |
| Computer Interface | USB |
| Command language | G code |
Features
1)Cast by iron whole machine lathe, strong and never out of shape
2)Leadshine driver and servo motor, Schneider electrical parts
3)TBI ball screw transmission ensures high accuracy
4)Imported square rail ensures high accuracy and heavy workload
Machine parts

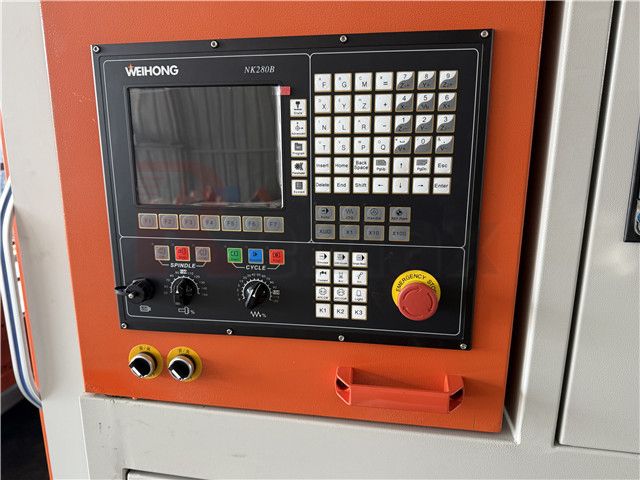

Weihong NK280B CNC System
Is compatible with various cad/cam software, supports NC/TAP/TXT and other formats, and is easy to operate. It is very easy to get started.

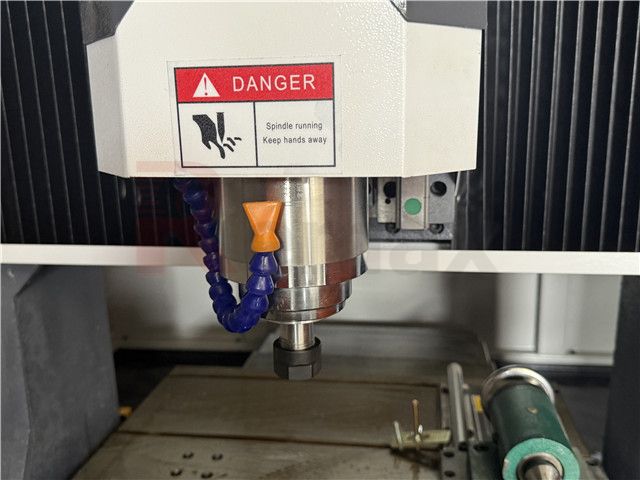

Water Cooling Spindle
High-speed water coolingspindle ensures stabletemperature rise, highaccuracy and long service life.

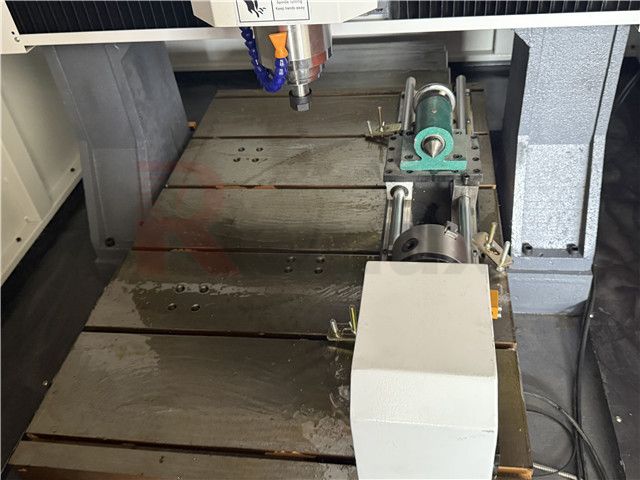

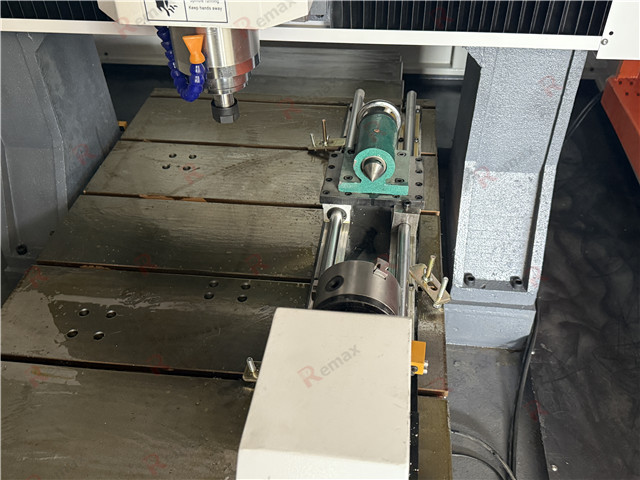

4 Axis Rotary
Enable the tool or workpiece to perform multi-angle machining in space, thereby completing multi-face machining in a single setup and improving machining accuracy and efficiency.

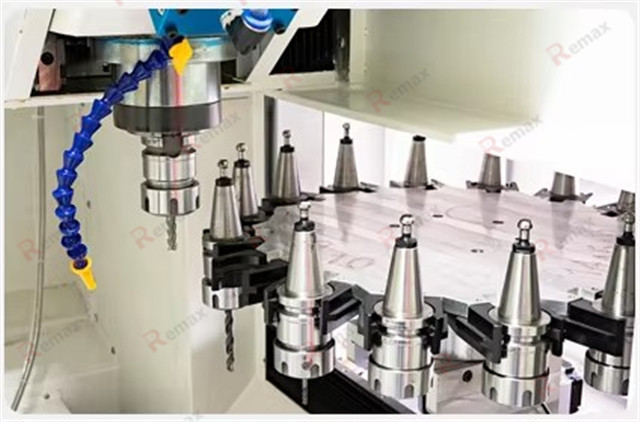

Disc Tool Change
Disc-type tool change magazine, BT30 tool holder, smooth tool change, can support 16 tool positions, more tool positions, good sealing (optional).

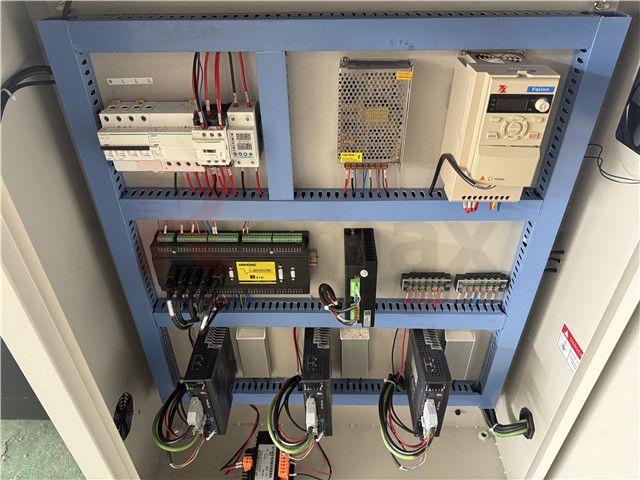

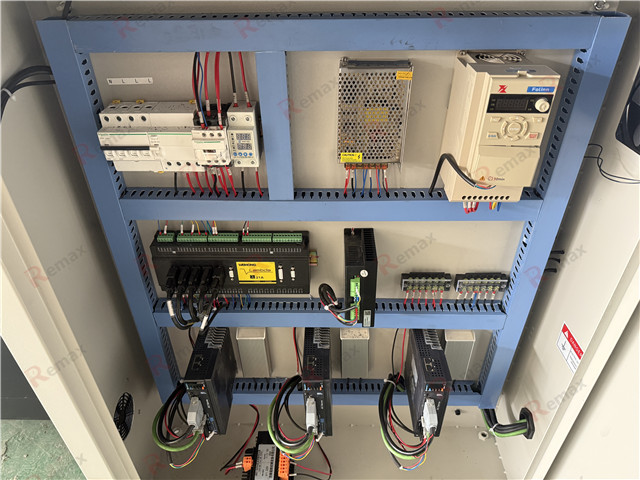

Control Cabinet
Anti-interference electrical control cabinet, built-in Schneider electrical components, Leadshine servo drive, inverter, effectively shielding electromagnetic interference to ensure the normal operation of the machine.
Machine sample
Customer feedback
Company Profile
FAQ
Q：I got the Artcam software to work. I actually use another design program Fusion 360 or sketchup.
A：Ok, For the Artcam software sent to you, because some customers don`t have drawing software themselves,we give it for free.If you have drawing software, you can also use it, as long as the drawing software can generate G code.
Q：What is the correct procedure to get my files to operate on the CNC?
A：After you finish the drawing in the software, generate G code, export it to the U disk, then insert the U disk into the handle,find and open the file in the handle to operate the machine.
Q：I don't how to use machine.
A：Don't worry friend, we will send you the English manual and teaching video, you can learn from it, if you still have problem, our engineer can video teach you or go to your country training you.
Q: For the water cooling spindle and air cooling spindle, I don’t know how to choose it.
A: For the 2 spindles, if you mainly process metal and stone, choose water cooling spindle is best; you mainly process wood, acrylic etc non-metal materials, choose air cooling spindle is better.
Q:Can you make sample for me? I want to see how the machine works.
A: Yes we can, you send sample picture or provide STL format files to us is ok.
Q: What kind of tools can I choose? Can I buy more from you.
A: We will provide one box tools for you with the machine. If you want more, you can buy from us.
Q: How to connect the machine to the computer?
A: Different control systems have different connection methods, we will guide you and provide manual.
Our service
A Guarantee:
12 months for the whole machine.
Within 12 months under normal use and maintenance, if machine parts have problem, you will get spare part for free, we pay for shipping cost.
Out of 12 months, you will get spare part at cost price.
You will also get technical support and service all the lifetime.
B Technical support:
1. Technical support by phone, email or MSN/Skype 24 HOURS
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
C After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consulting, technical support and service by email/fax/tel and lifetime technical support.
