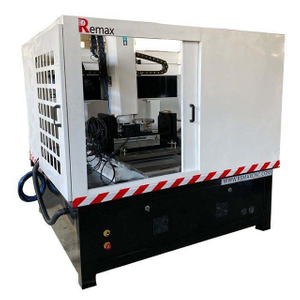

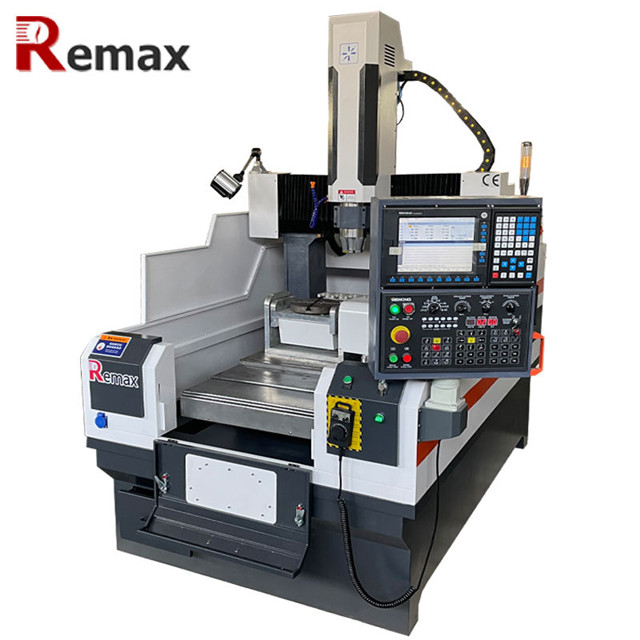

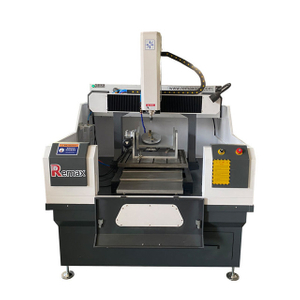

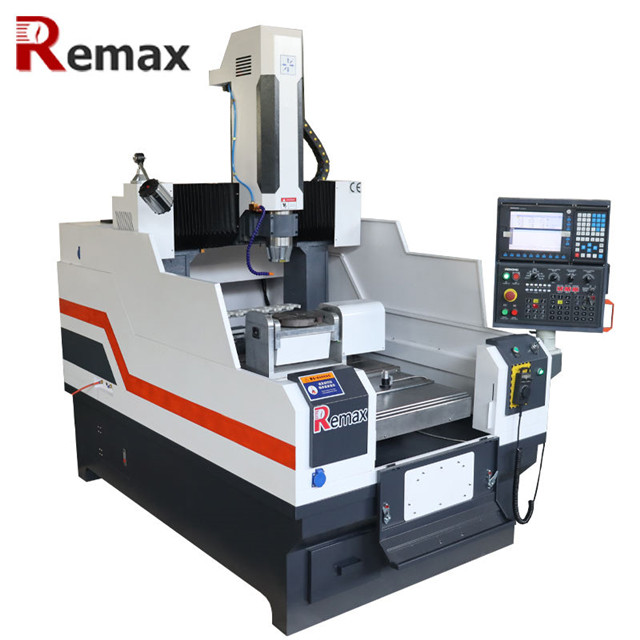

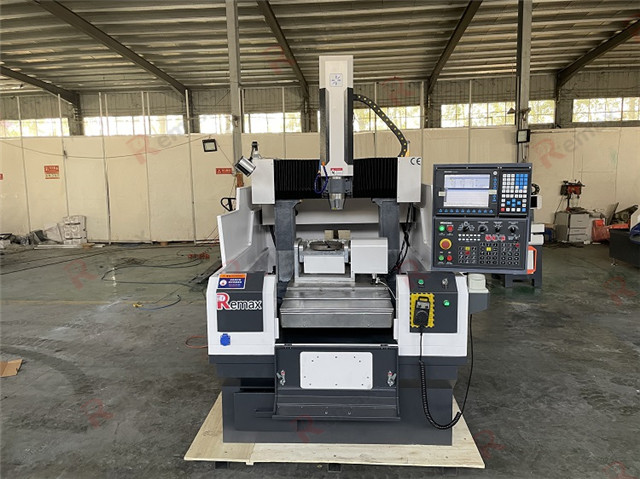

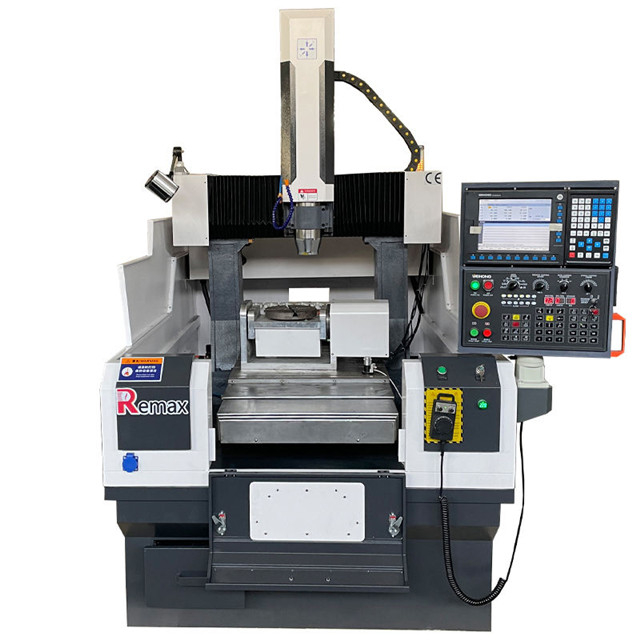

6060 5 Axis ATC CNC Metal Milling and Engraving Machine

Parameter

item	configuration
Name	5 Axis ATC CNC Metal Milling and Engraving Machine 6060
Working area	600*600*400mm
Table	T-Slot working table with table moving, steel dust proof
Frame	Whole machine structure cast iron
Spindle power	3kw/ 5.5kw/ 7.5kw ATC Water cooling spindle for option
Spindle speed	0-24000rpm/min
Control system	NK300 ATC 5 axis
Motor and Driver	Yaskawa servo motor and driver
Transmission	HIWIN/PMI square rail and TBI ball screw

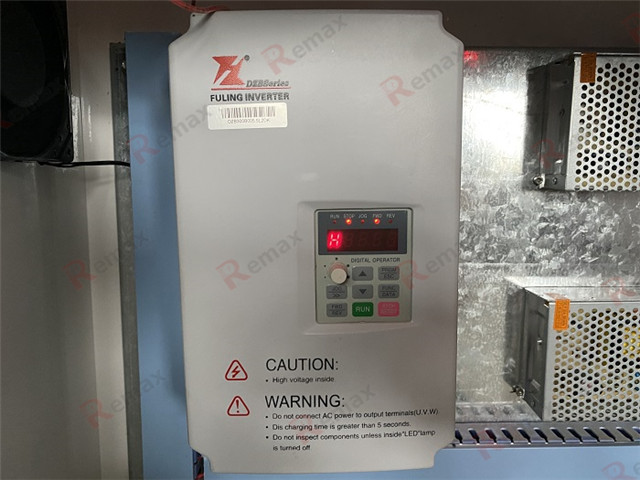

Inverter	Fuling inverter
Electrical components	Schneider
Limit switch	OMRON
ATC	Linear ATC with 8 tool holders

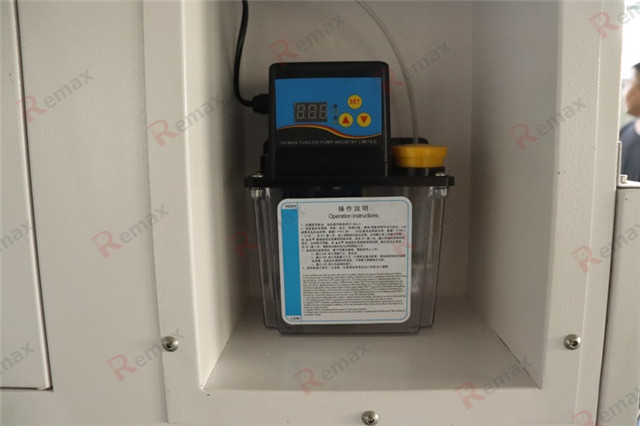

With	Tool sensor, auto lubricationn system,  LED light,  Water tank

Machine parts

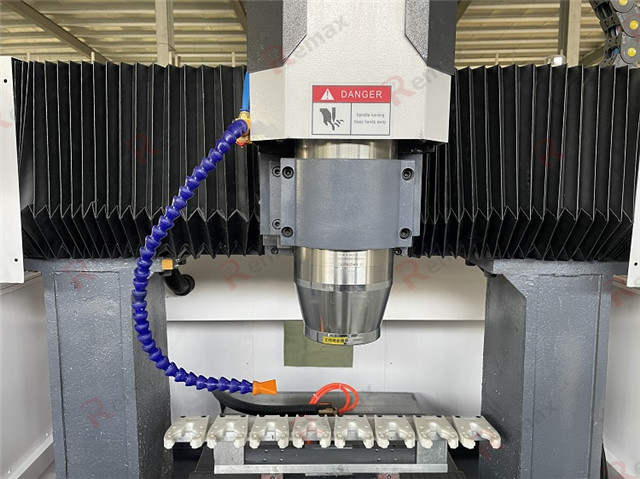

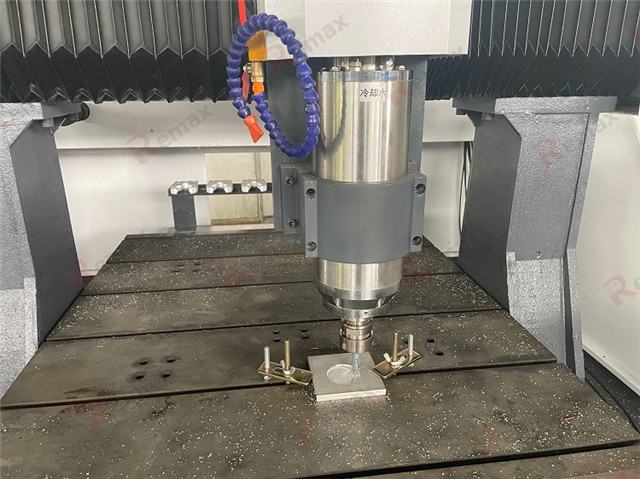

3kw/ 5.5kw/ 7.5kw ATC Water cooling spindle for option

Heavy duty cast iron structure

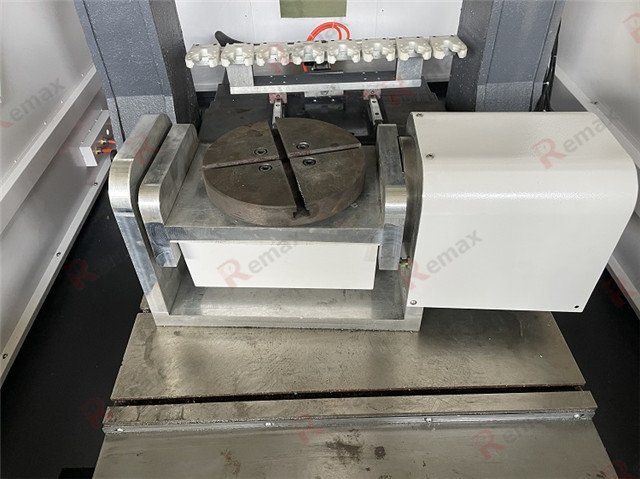

steel dust proof, table moving

Nk300 Handwheel

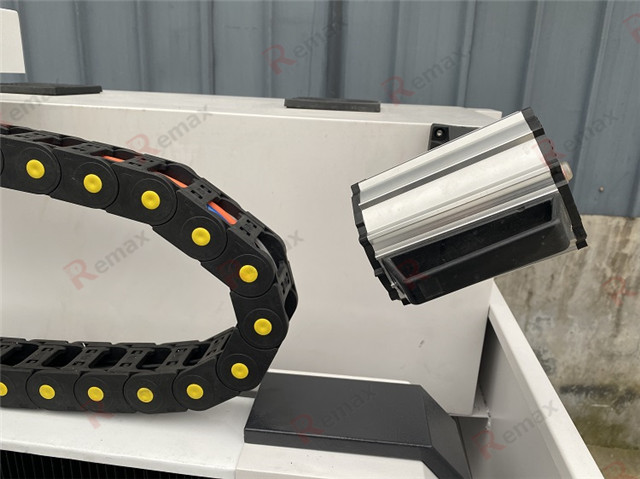

LED light

Machine sample

Customer feedback
