6060 cnc 5 axis mach3 controller milling cnc router machine

The metal milling machine body is strong, rigid, high precision, reliable and durable. Whole steel structure, after high-temperature tempering, good rigidity and stability.

Availability:

Quantity:



Inquire Add to Basket

Model:
6060 5 axis
Brand:
Remax

Product Description

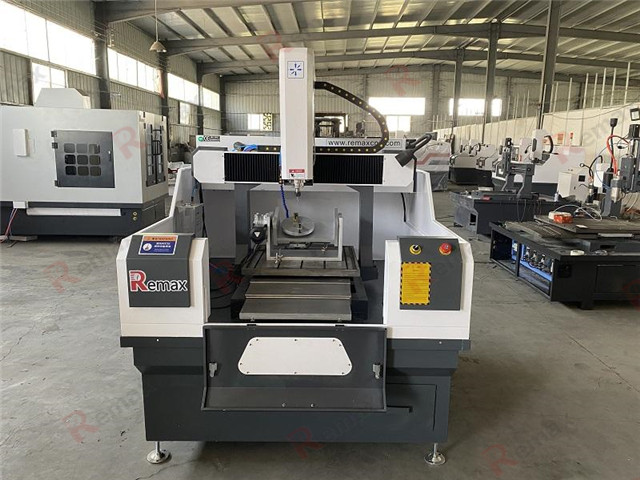

6060 5 axis01

Features

1. Whole machine cast by iron, very strong and never out shape. The metal milling machine body is strong, rigid, high precision, reliable and durable. Whole steel structure, after high-temperature tempering, good rigidity and stability.

2. High quality all steel liner with high precision, ensure machine frame much stability and durability. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.

3. steel dust proof protect cutting fluid or water and scrap fall on the guide rail and ball screw, make them rusting ,protect the ball screw and guide rail ,make the maintenance operation easily.

4. X,Y,Z axis with Leadshine hybrid servo motor,a,c axis with stepper motor or Leadshine hybrid servo motor,the combination ensure the stability and efficiency. with high precision and long life.

Product Description

Description	Parameter of cnc milling machines
X,Y,Z Working Area	600x600x400mm
Control system	Mach3 6axis control system
Table Surface	Iron Table
X, Y,Z Structure	Hiwin Square Rail and TBI ball screw
Spindle Power	3.2/5.5kw water cooling spindle
Spindle Speed	0-24000RPM
Working Voltage	AC220/380V, 50/60HZ

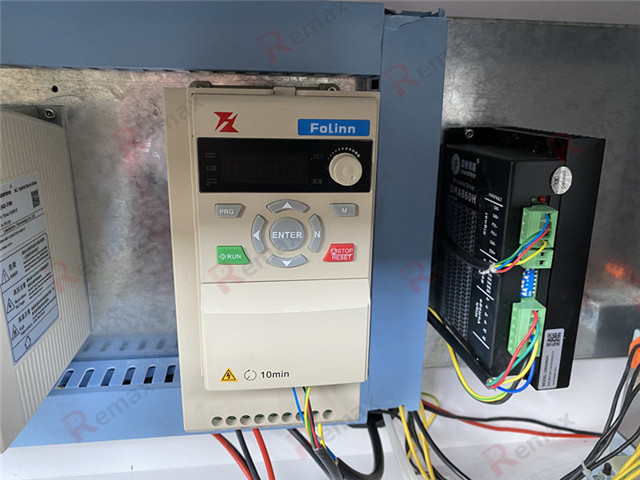

Inverter	Fuling
Electrical components	Schneider

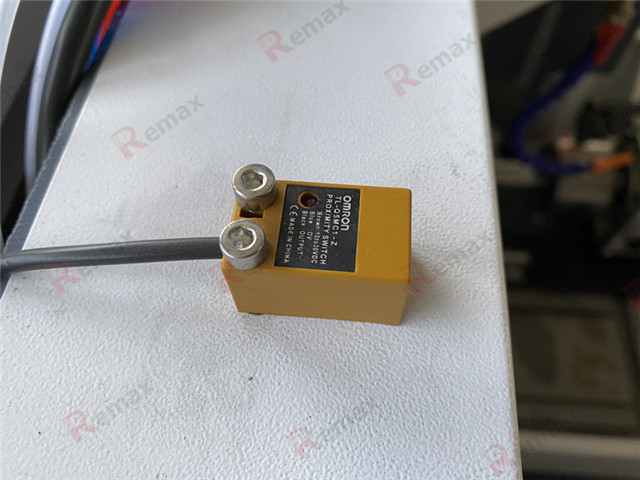

Limit switch	OMRON
Frame	whole machine cast by iron
Transmission	TBI Ball screw

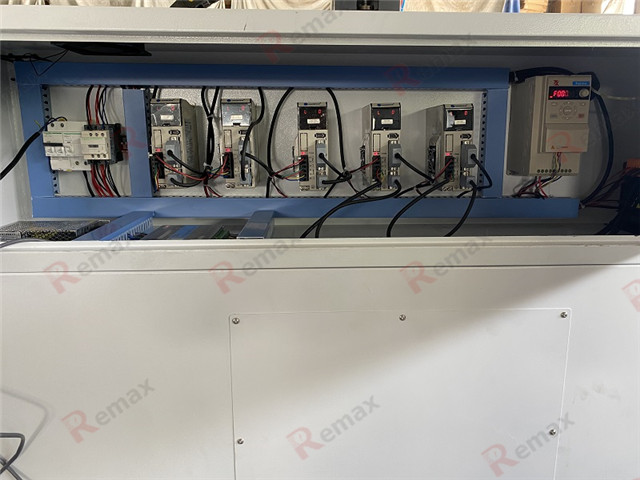

Motor and Driver	Leadshine hybrid servo motor and driver
Computer Interface	USB
Rotary axis size	150*150mm
