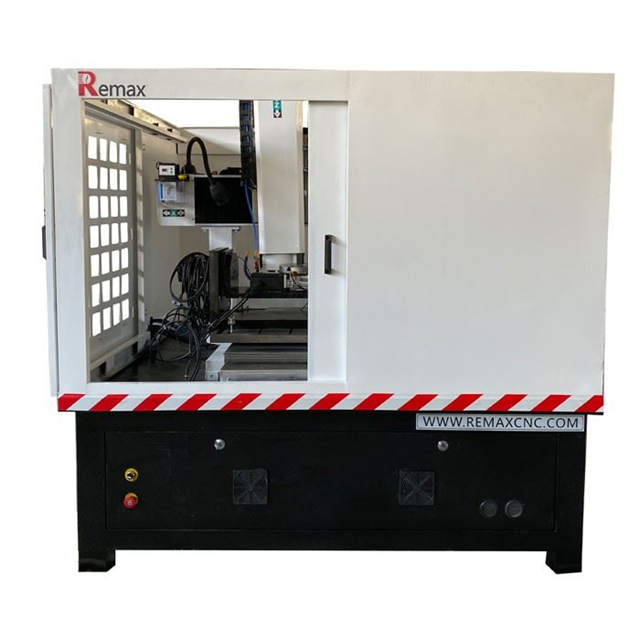

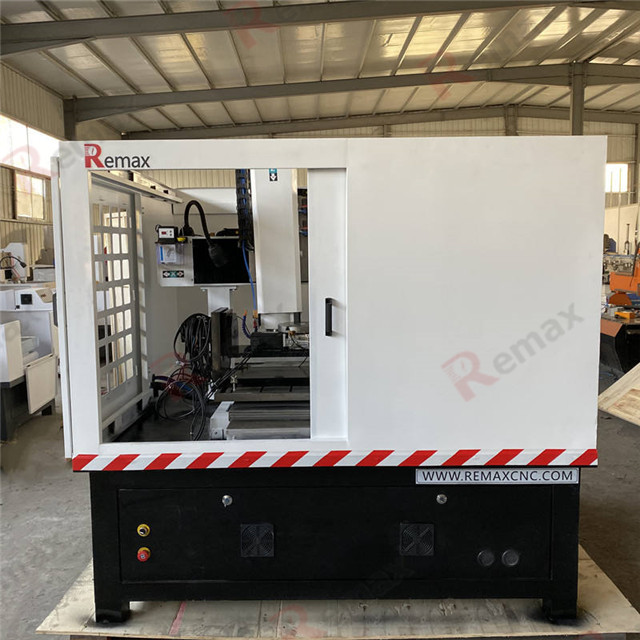

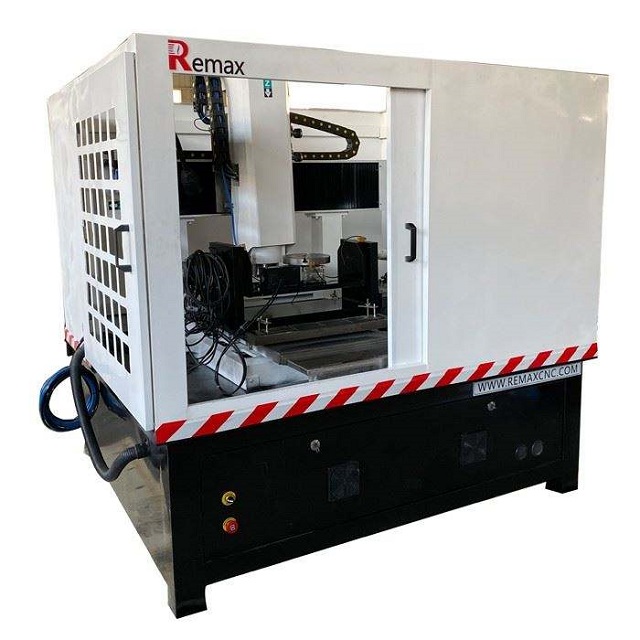

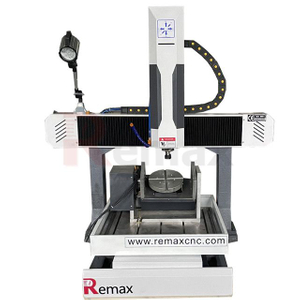

6060 5 axis
Remax
Features
1.Iron T-slot and moving table, ideal for machining metal or wooden molds.
2.Axis X, Y, Z are equipped with photoelectric devices,which ensure a fast response and good anti-interference capacity.
3.TBI ball screw transmission improves positioning accuracy and fast speed.
4.Selection of high speed 5.5kw atc water cooling spindle, low noise, high torque, this CNC can be used to process high hardness materials.
5.With Nc studio 6axis control system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day's workmoments.
| Description | Parameter of cnc milling machines |
| X,Y,Z Working Area | 600*600*300mm |

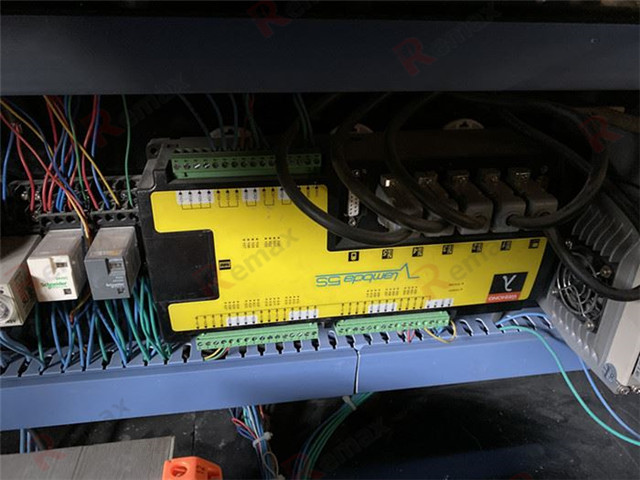

| Control system | Nc studio 5axis control system |
| Table Surface | Iron T-slot work table |
| Spindle Power | 5.5kw atc water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Working Voltage | AC220/380V, 50/60HZ |

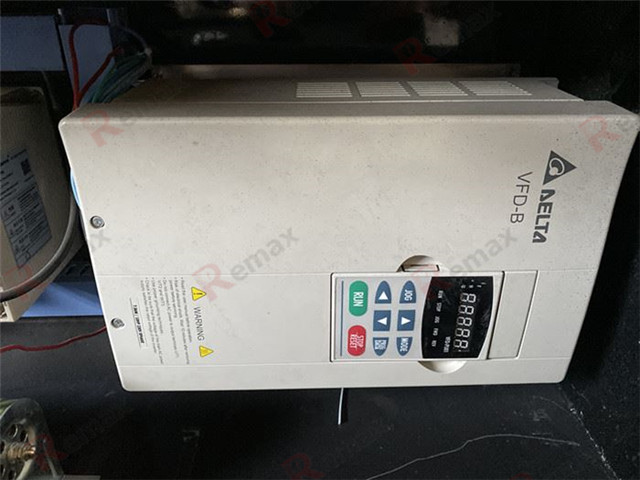

| Inverter | Delta inverter |

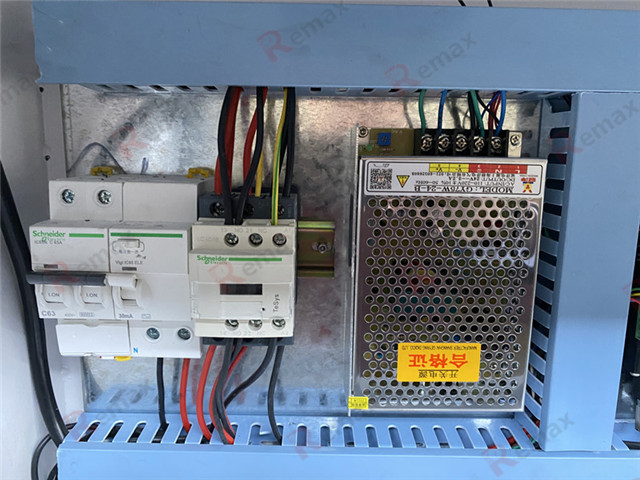

| Electrical components | Schneider |
| Limit switch | OMRON |
| Motor | Leadshine hybrid servo motor and driver |
| 5axis rotary axis diameter | 150mm |
| Command language | G code |
| X, Y, Z Structure | Hiwin square rail and TBI Ball Screw |
Detailed Images

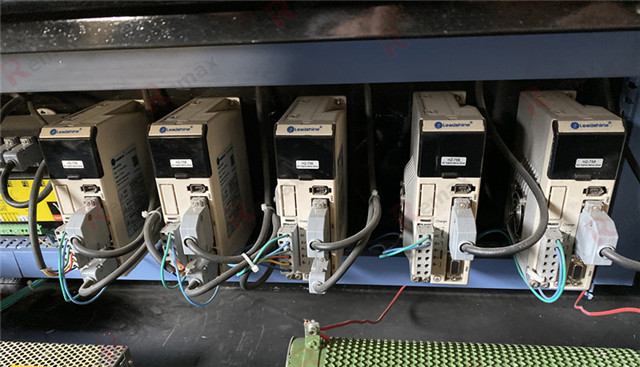

Leadshine hybrid servo motor and driver

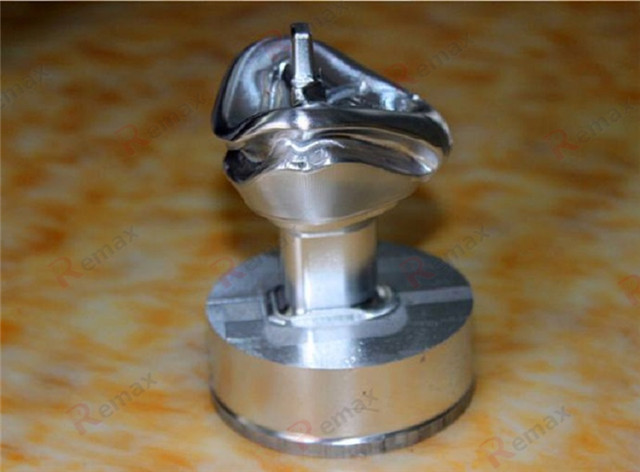

Sample
Customer feedback
