| Quantity: | |
|---|---|

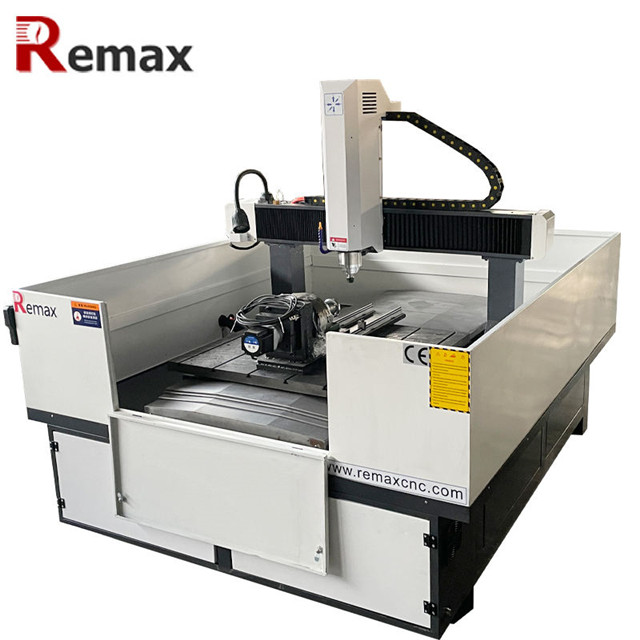

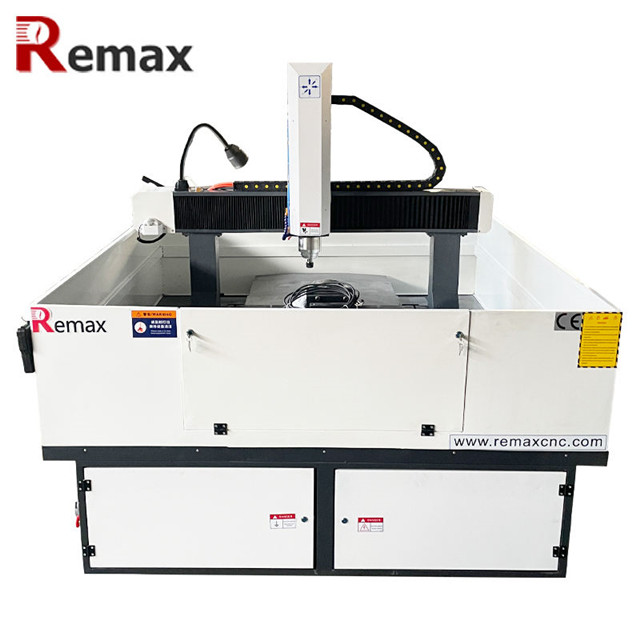

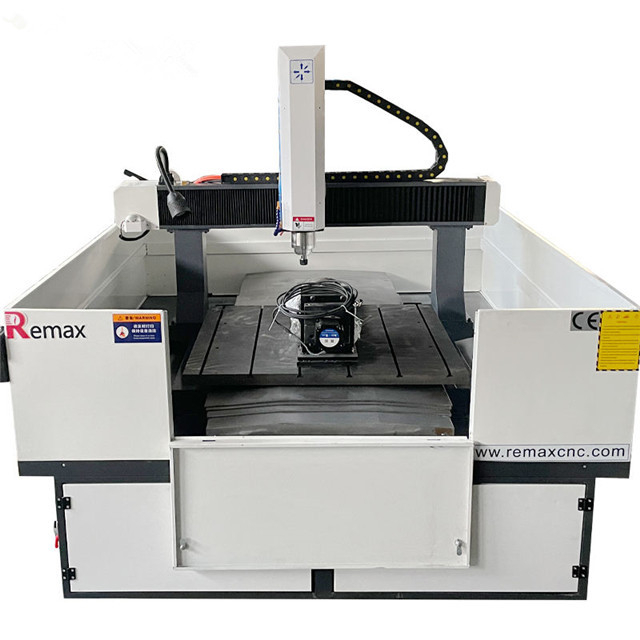

8090 4 axis
Remax
Parameter
| Description | Parameter |
| X,Y,Z Working Area | 800x900x200mm |
| X,Y,Z Accuracy | ±0.02mm |
| X,Y,Z Repositioning Accuracy | ±0.0254mm |
| Table Surface | Cast iron T-slot moving Table |
| Frame | Machine frame structure cast by iron |
| Transmission | Hiwin or PMI square rail and TBI ball screw |
| Spindle Power | 3kw water cooling/5.5kw for option |
| Spindle Speed | 0-24000 rpm/min |
| Driver and Motor | Leadshine 1500w servo motor and driver |
| Operating System | DSP A18 4-axis control system |
| 4 axis rotary | diameter 100mm |
| Inverter | Delta/Fuling |
| Electrical components | Schneider |
| Limit switch | OMRON |
| Tool sensor and lubrication | With |
| Steel dust prevention | With |
| Working light | With |
Features
1)Machine frame structure cast by iron, very strong and never out of shape.
2) Schneider electrical parts.Leadshine servo motor and driver, Taiwan Delta and Japan YASKAWA servo motor and driver for option.
3)Taiwan TBI ball screw transmission ensures high accuracy.
4)Imported Taiwan square rail ensures high accuracy and heavy workload.
5) DSP/MACH3 / NC studio control system, easy cooperation.
Machine parts
Machine sample
Customer feedback
Company Profile
